Lovato Electric 8LM2TB6542G504 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £64.98.£45.48Current price is: £45.48.

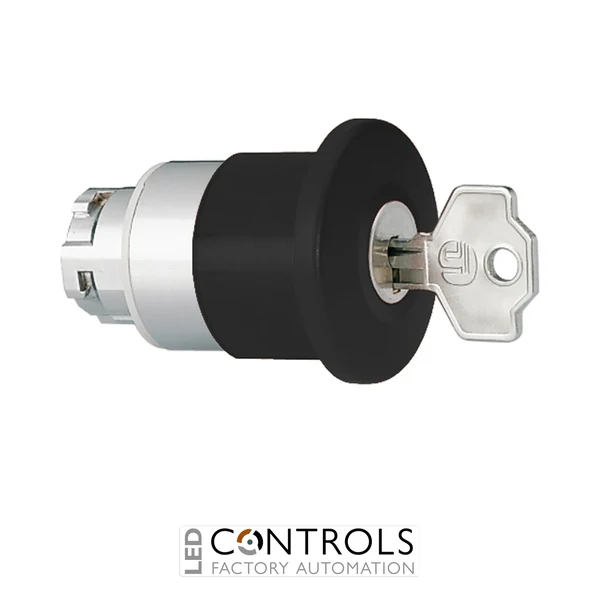

The Lovato 8LM2TB6542G504 is a reliable mushroom head pushbutton actuator designed for industrial stopping applications, machinery control panels and automation systems. Part of the Lovato 8LM metal pushbutton series, this actuator features a secure latch turn-key-to-release mechanism, providing maintained control with key-operated reset functionality for industrial equipment.
Featuring a 40 mm black mushroom head with different key code G504, the 8LM2TB6542G504 provides clear operator visibility and controlled reset access. Its aluminium and zinc alloy construction provides excellent mechanical strength, while the standard 22 mm mounting format allows easy installation into industrial control panels and operator stations.
The Lovato 8LM2TB6542G504 is engineered for demanding industrial environments, offering IP65 protection, high mechanical durability and compatibility with Lovato modular pushbutton assemblies. It is suitable for machine builders, OEM manufacturers and automation professionals requiring dependable stopping control components.
Industrial mushroom head pushbuttons provide operators with a highly visible and dependable method of controlling machinery. The Lovato 8LM2TB6542G504 combines a large actuator head with a locking key-release mechanism to provide secure stopping control in industrial environments.
The latch design maintains the actuator position until manually released with the key, making it suitable for applications where controlled reset access is required. Its robust construction and IP65 protection rating help ensure reliable operation in demanding industrial conditions.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 91 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X062 |
| Volume [cm³] | 155 |
| Bar code [EAN13] | 8013975104415 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - LATCH, TURN KEY TO RELEASE. Ø40mm/1.6” For normal stopping |
| Product type designation | 8LM2TB654 |
| Colour | Black |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6542G504 is a mushroom head pushbutton actuator designed for normal stopping applications in industrial machinery and control systems.
The actuator features a black 40 mm mushroom head for clear operator identification.
The actuator uses a turn-key-to-release latch mechanism, requiring the operator to use the key to return it to its original position.
The G504 key code provides a specific key combination for controlled reset operation of the latch actuator.
The actuator provides an IP65 protection rating for reliable operation in industrial environments.
Lovato Electric pushbutton components are widely used by automation engineers, machine builders and electrical professionals requiring durable operator control solutions with dependable industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6542G504 Mushroom Head Pushbutton Actuator 40mm Black", "sku": "8LM2TB6542G504", "mpn": "8LM2TB6542G504", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Actuators", "description": "Lovato 8LM2TB6542G504 black 40mm mushroom head pushbutton actuator with latch turn-key-to-release operation and different key code for industrial stopping applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator colour", "value": "Black" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operating type", "value": "Latch turn-key-to-release" }, { "@type": "PropertyValue", "name": "Key code", "value": "G504" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6542G504 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6542G504 is a mushroom head pushbutton actuator designed for normal stopping applications in industrial machinery and control systems." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TB6542G504 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a black 40 mm mushroom head for clear operator identification." } }, { "@type": "Question", "name": "How does the Lovato 8LM2TB6542G504 reset?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses a turn-key-to-release latch mechanism, requiring the operator to use the key to return it to its original position." } }, { "@type": "Question", "name": "What is the purpose of the G504 key code?", "acceptedAnswer": { "@type": "Answer", "text": "The G504 key code provides a specific key combination for controlled reset operation of the latch actuator." } }, { "@type": "Question", "name": "What protection rating does the Lovato 8LM2TB6542G504 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating for reliable operation in industrial environments." } } ] }
