Lovato Electric 8LM2TB6542G507 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £64.98.£45.48Current price is: £45.48.

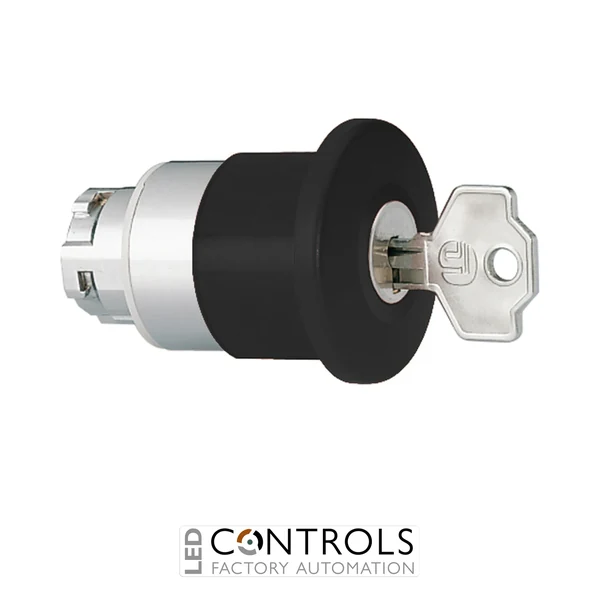

The Lovato 8LM2TB6542G507 is a robust 22mm metal mushroom head pushbutton actuator designed for reliable industrial control and machine safety applications. Part of the Lovato 8LM series, this operator provides a durable latch mechanism with turn-key release, making it suitable for normal stopping functions in industrial automation systems.
Designed for use in demanding control environments, the 8LM2TB6542G507 combines a rugged aluminium and zinc alloy construction with an ergonomic 40mm mushroom head design. Its key-release latch operation helps prevent accidental resetting while providing dependable operator control for machinery and electrical panels.
The Lovato 8LM2TB6542G507 features a black mushroom actuator, 22mm mounting compatibility and an IP65 protection rating, making it suitable for industrial environments where reliability, durability and straightforward installation are required.
Pushbutton actuators such as the Lovato 8LM2TB6542G507 provide operators with dependable manual control interfaces for industrial machinery. The mushroom head design allows quick identification and operation, while the keyed release mechanism helps maintain controlled machine restart procedures.
The Lovato 8LM series is engineered for industrial automation panels, machinery controls and electrical equipment requiring reliable switching interfaces. Its modular construction allows integration with Lovato contact blocks and accessories for flexible control solutions.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 91 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X062 |
| Volume [cm³] | 155 |
| Bar code [EAN13] | 8013975104446 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - LATCH, TURN KEY TO RELEASE. Ø40mm/1.6” For normal stopping |
| Product type designation | 8LM2TB654 |
| Colour | Black |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6542G507 is a mushroom head pushbutton actuator used for industrial machine stopping and operator control applications.
This model uses a latch mechanism with turn key release, allowing controlled reset operation after activation.
The actuator is designed for 22mm panel mounting systems commonly used in industrial control panels.
The Lovato 8LM2TB6542G507 has an IP65 protection rating, providing resistance against dust and water ingress in suitable industrial environments.
The actuator features a black 40mm mushroom head design.
Lovato 8LM series pushbutton actuators are used by automation engineers and machine builders worldwide for dependable operator control, robust construction and reliable integration into industrial control systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6542G507 Mushroom Head Pushbutton Actuator", "sku": "8LM2TB6542G507", "mpn": "8LM2TB6542G507", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Switches", "description": "Lovato 8LM2TB6542G507 mushroom head pushbutton actuator with 22mm metal mounting, 40mm black mushroom head, latch operation and turn key release for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Series", "value": "8LM Metal Series" }, { "@type": "PropertyValue", "name": "Mounting size", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Colour", "value": "Black" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6542G507 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6542G507 is a mushroom head pushbutton actuator used for industrial machine stopping and operator control applications." } }, { "@type": "Question", "name": "What type of release mechanism does this pushbutton use?", "acceptedAnswer": { "@type": "Answer", "text": "This model uses a latch mechanism with turn key release, allowing controlled reset operation after activation." } }, { "@type": "Question", "name": "What is the mounting size of the Lovato 8LM2TB6542G507?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for 22mm panel mounting systems commonly used in industrial control panels." } }, { "@type": "Question", "name": "What protection rating does this pushbutton have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6542G507 has an IP65 protection rating, providing resistance against dust and water ingress in suitable industrial environments." } }, { "@type": "Question", "name": "What colour is the mushroom head actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a black 40mm mushroom head design." } } ] }
