Lovato Electric 8LM2TB6544G508 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £64.98.£45.48Current price is: £45.48.

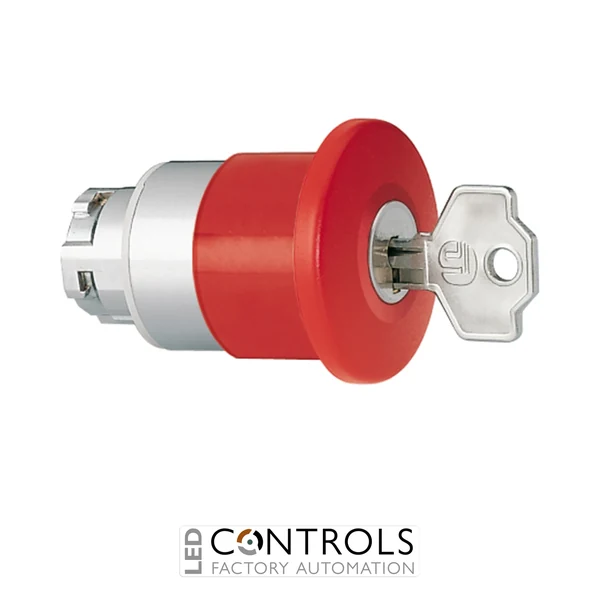

The Lovato 8LM2TB6544G508 is a rugged 22mm metal mushroom head pushbutton actuator designed for reliable industrial control and machinery stopping applications. Part of the Lovato 8LM metal series, this actuator features a latch mechanism with turn key release, providing secure operator control and controlled resetting for industrial equipment.
Designed for demanding automation environments, the 8LM2TB6544G508 features a durable aluminium and zinc alloy construction with a large 40mm red mushroom head for clear identification and easy operator activation. The keyed release mechanism helps prevent accidental resetting and supports controlled machine restart procedures.
With an IP65 protection rating, 22mm panel mounting compatibility and modular integration with Lovato LM2T accessories, the Lovato 8LM2TB6544G508 is suitable for electrical panels, OEM machinery and industrial automation systems requiring dependable operator interfaces.
The Lovato 8LM2TB6544G508 provides a reliable manual operator interface for industrial machinery and automation systems. Its red mushroom head design allows fast identification and operation, while the key release mechanism ensures controlled resetting after activation.
The Lovato 8LM series is designed for machine builders, panel manufacturers and automation engineers requiring robust pushbutton components with dependable mechanical performance and flexible modular integration.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 91 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X062 |
| Volume [cm³] | 155 |
| Bar code [EAN13] | 8013975104378 |
| HS Code | 85365080 |
| Product designation | Mushroom head pushbutton actuators - LATCH, TURN KEY TO RELEASE. Ø40mm/1.6” For normal stopping |
| Product type designation | 8LM2TB654 |
| Colour | Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Latch actuators | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TB6544G508 is a mushroom head pushbutton actuator used for industrial machine stopping and operator control applications.
This model uses a latch mechanism with turn key release to provide controlled resetting after activation.
The actuator is designed for 22mm panel mounting systems commonly used in industrial control panels.
The actuator has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress.
The Lovato 8LM2TB6544G508 features a red 40mm mushroom head for clear operator identification.
Lovato 8LM series pushbutton actuators are widely used by automation professionals and machine builders for dependable operator control, robust construction and reliable integration into industrial systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB6544G508 Mushroom Head Pushbutton Actuator", "sku": "8LM2TB6544G508", "mpn": "8LM2TB6544G508", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Pushbutton Switches", "description": "Lovato 8LM2TB6544G508 red mushroom head pushbutton actuator with 22mm metal mounting, 40mm head, latch operation and turn key release for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Series", "value": "8LM Metal Series" }, { "@type": "PropertyValue", "name": "Mounting size", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Head diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Colour", "value": "Red" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB6544G508 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6544G508 is a mushroom head pushbutton actuator used for industrial machine stopping and operator control applications." } }, { "@type": "Question", "name": "What release mechanism does this pushbutton use?", "acceptedAnswer": { "@type": "Answer", "text": "This model uses a latch mechanism with turn key release to provide controlled resetting after activation." } }, { "@type": "Question", "name": "What size mounting hole is required?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for 22mm panel mounting systems commonly used in industrial control panels." } }, { "@type": "Question", "name": "What protection rating does the Lovato 8LM2TB6544G508 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator has an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress." } }, { "@type": "Question", "name": "What colour is the mushroom head?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB6544G508 features a red 40mm mushroom head for clear operator identification." } } ] }
