Lovato Electric 8LM2TB7123 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £12.39.£8.67Current price is: £8.67.

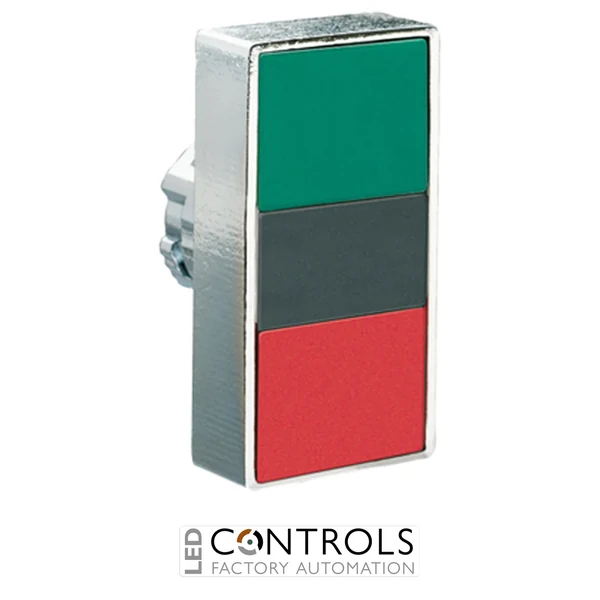

The Lovato 8LM2TB7123 is a high-quality double-touch actuator with spring return operation designed for industrial control panels, machinery and automation systems. Part of the reliable Lovato 8LM series metal push button range, this Ø22 mm control device provides a compact and durable solution for start/stop command applications requiring clear visual identification and dependable operation.
Featuring two flush momentary push buttons with green and red I-O colour identification, the 8LM2TB7123 allows operators to easily control industrial equipment functions. The spring return mechanism ensures the push buttons automatically return to their original position after activation, making it suitable for frequent industrial switching operations.
Constructed from a robust aluminium and zinc alloy body, the Lovato 8LM2TB7123 combines mechanical durability with a compact panel-mounted design. Its Ø22 mm mounting format makes it compatible with standard industrial control stations and electrical enclosures.
Push buttons are essential components in industrial automation, providing operators with direct control over machinery functions. The Lovato 8LM2TB7123 delivers dependable momentary switching control with a clear dual-colour interface for efficient machine operation.
The durable metal construction and long mechanical lifespan make this actuator suitable for demanding industrial environments where reliability, safety and ease of use are important considerations.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144282 |
| HS Code | 85365080 |
| Product designation | Double-touch actuators, spring return - Two flush push-button |
| Product type designation | 8LM2TB71 |
| Colour | Green/Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB7123 is a double-touch spring return push button actuator used for industrial machine control panels and automation applications.
The actuator includes two flush momentary push buttons with green and red colour identification for I-O control functions.
The Lovato 8LM2TB7123 is designed for standard Ø22 mm panel mounting.
The actuator is rated for up to 1,000,000 mechanical operating cycles.
The actuator features a durable aluminium and zinc alloy construction designed for industrial environments.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, durability and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB7123 Double Touch Push Button Actuator", "sku": "8LM2TB7123", "mpn": "8LM2TB7123", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TB7123 double-touch spring return actuator with two flush push buttons in green and red for Ø22mm industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "Two flush momentary push buttons" }, { "@type": "PropertyValue", "name": "Colour", "value": "Green / Red" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB7123 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7123 is a double-touch spring return push button actuator used for industrial machine control panels and automation applications." } }, { "@type": "Question", "name": "What type of push buttons are included?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator includes two flush momentary push buttons with green and red colour identification for I-O control functions." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7123 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What is the mechanical life of this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is rated for up to 1,000,000 mechanical operating cycles." } }, { "@type": "Question", "name": "What material is the actuator made from?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a durable aluminium and zinc alloy construction designed for industrial environments." } } ] }
