Lovato Electric 8LM2TB7124 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £12.39.£8.67Current price is: £8.67.

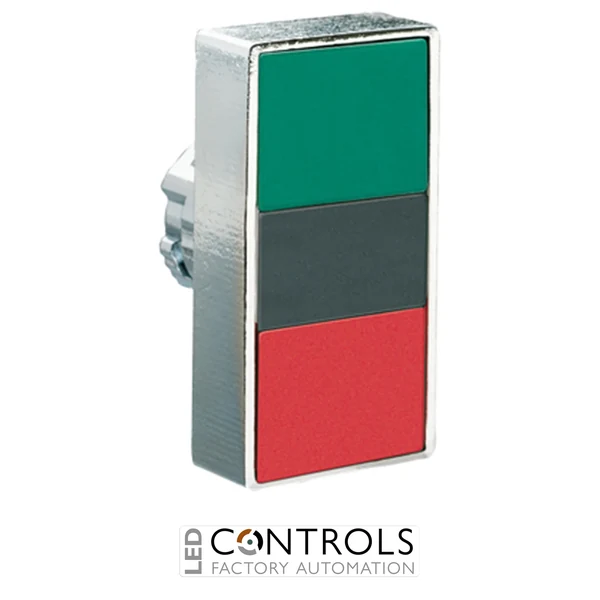

The Lovato 8LM2TB7124 is a high-quality double-touch actuator with spring return operation designed for industrial control panels, machinery and automation systems. As part of the durable Lovato 8LM metal push button series, this Ø22 mm operator device provides reliable manual control for industrial applications requiring clear command identification and long service life.
Featuring two flush momentary push buttons with white and black I-O colour identification, the 8LM2TB7124 provides intuitive operator control for start and stop functions. Both buttons use a spring return mechanism, ensuring the actuator returns to its normal position after activation for dependable machine operation.
The Lovato 8LM2TB7124 is manufactured using a robust aluminium and zinc alloy construction and is designed for standard Ø22 mm panel mounting. Its compact metal design makes it suitable for electrical enclosures, operator stations and industrial automation equipment.
Industrial push buttons provide operators with direct control over machinery and automation equipment. The Lovato 8LM2TB7124 delivers dependable momentary operation with a clearly identified dual-button interface designed for efficient machine control.
With its strong metal construction, compact installation format and extended mechanical life, this Lovato actuator is suitable for demanding industrial environments where reliability and ease of operation are essential.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144299 |
| HS Code | 85365080 |
| Product designation | Double-touch actuators, spring return - Two flush push-button |
| Product type designation | 8LM2TB71 |
| Colour | White/Black |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB7124 is a double-touch spring return push button actuator designed for industrial machinery and automation control panels.
The actuator includes two flush push buttons with a white and black I-O colour configuration for clear operator identification.
The Lovato 8LM2TB7124 is designed for standard Ø22 mm panel mounting.
The actuator is rated for up to 1,000,000 mechanical operating cycles.
The actuator is manufactured using a durable aluminium and zinc alloy material suitable for industrial applications.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, durability and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB7124 Double Touch Push Button Actuator", "sku": "8LM2TB7124", "mpn": "8LM2TB7124", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TB7124 double-touch spring return actuator with two flush push buttons in white and black I-O configuration for Ø22mm industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "Two flush momentary push buttons" }, { "@type": "PropertyValue", "name": "Colour", "value": "White / Black" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB7124 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7124 is a double-touch spring return push button actuator designed for industrial machinery and automation control panels." } }, { "@type": "Question", "name": "What colour buttons are included on this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator includes two flush push buttons with a white and black I-O colour configuration for clear operator identification." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7124 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What is the mechanical life of the Lovato 8LM2TB7124?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is rated for up to 1,000,000 mechanical operating cycles." } }, { "@type": "Question", "name": "What material is used for construction?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is manufactured using a durable aluminium and zinc alloy material suitable for industrial applications." } } ] }
