Lovato Electric 8LM2TB7133 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £12.39.£8.67Current price is: £8.67.

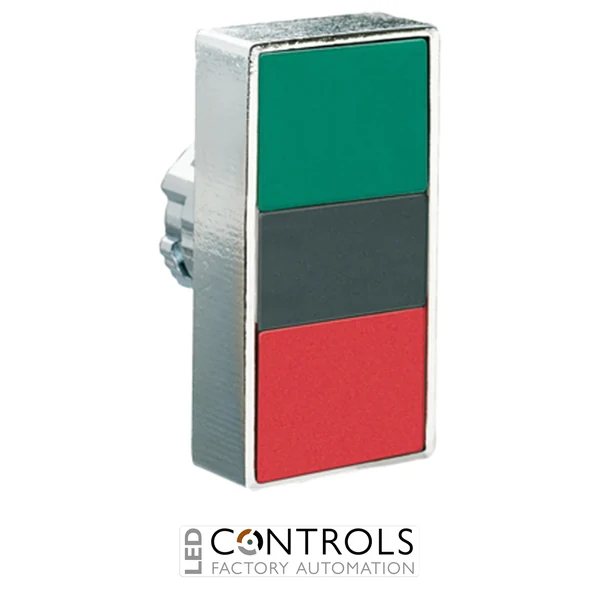

The Lovato 8LM2TB7133 is a reliable double-touch actuator with spring return operation designed for industrial control panels, machinery and automation systems. As part of the Lovato 8LM metal push button series, this Ø22 mm operator device provides a durable and intuitive solution for manual machine control applications requiring dependable switching performance.
Featuring two flush momentary push buttons with green and red START-STOP identification, the 8LM2TB7133 enables operators to clearly control industrial equipment functions. Both push buttons feature spring return operation, ensuring automatic return after activation for reliable repetitive use.
Manufactured with a robust aluminium and zinc alloy construction, the Lovato 8LM2TB7133 provides excellent mechanical durability in industrial environments. Its standard Ø22 mm panel mounting design allows easy integration into control stations, electrical cabinets and automation systems.
Industrial push buttons provide operators with direct control over machinery and automated processes. The Lovato 8LM2TB7133 delivers dependable momentary switching with clear START-STOP identification, making it suitable for applications where safe and efficient operator interaction is required.
The combination of metal construction, compact installation dimensions and extended mechanical life makes this Lovato actuator a dependable choice for industrial automation engineers, machine builders and OEM manufacturers.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144305 |
| HS Code | 85365080 |
| Product designation | Double-touch actuators, spring return - Two flush push-button |
| Product type designation | 8LM2TB71 |
| Colour | Green/Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB7133 is a double-touch spring return push button actuator designed for industrial machinery and automation control panels.
The actuator includes two flush push buttons with green and red START-STOP identification for clear operator control.
The Lovato 8LM2TB7133 is designed for standard Ø22 mm panel mounting.
The actuator is rated for up to 1,000,000 mechanical operating cycles.
The actuator is manufactured using a durable aluminium and zinc alloy construction for industrial applications.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, durability and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB7133 Double Touch Push Button Actuator", "sku": "8LM2TB7133", "mpn": "8LM2TB7133", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TB7133 double-touch spring return actuator with two flush push buttons in green and red START-STOP configuration for Ø22mm industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "Two flush momentary push buttons" }, { "@type": "PropertyValue", "name": "Colour", "value": "Green / Red" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB7133 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7133 is a double-touch spring return push button actuator designed for industrial machinery and automation control panels." } }, { "@type": "Question", "name": "What button colours are included?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator includes two flush push buttons with green and red START-STOP identification for clear operator control." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7133 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What is the mechanical life of this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is rated for up to 1,000,000 mechanical operating cycles." } }, { "@type": "Question", "name": "What material is the Lovato 8LM2TB7133 made from?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is manufactured using a durable aluminium and zinc alloy construction for industrial applications." } } ] }
