Lovato Electric 8LM2TB7345 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £16.02.£11.22Current price is: £11.22.

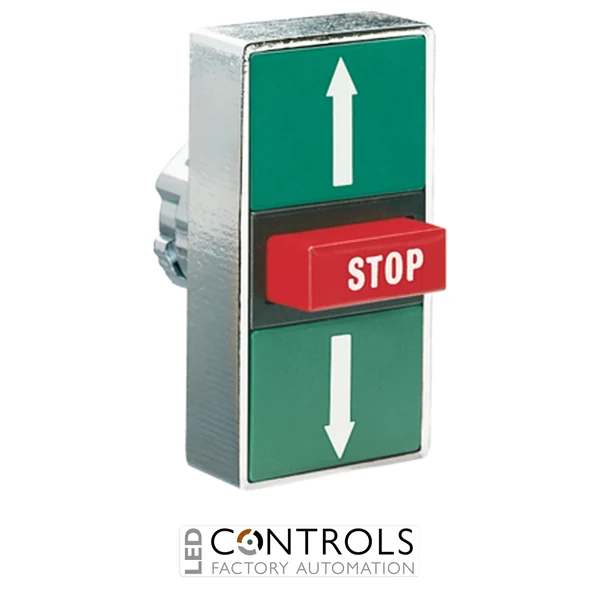

The Lovato 8LM2TB7345 is a robust triple-touch actuator with spring return operation designed for industrial control panels, machinery and automation systems. As part of the reliable Lovato 8LM metal push button series, this Ø22 mm operator device provides a compact and durable solution for applications requiring multiple manual control functions from a single panel position.
Featuring a triple push button configuration with I-STOP-II identification, the 8LM2TB7345 enables operators to clearly manage multiple machine commands. Each actuator element provides spring return operation, ensuring reliable momentary switching and consistent operator feedback in demanding industrial environments.
Manufactured using a strong aluminium and zinc alloy construction, the Lovato 8LM2TB7345 delivers excellent mechanical durability. Its standard Ø22 mm panel mounting format allows straightforward installation into electrical cabinets, operator stations and OEM machinery control systems.
Industrial push button assemblies provide operators with direct control over machinery and automation equipment. The Lovato 8LM2TB7345 combines multiple momentary control functions into a single compact actuator, helping simplify panel layouts and improve operator interaction.
With its durable metal construction, compact installation format and extended mechanical lifespan, this Lovato actuator is suitable for industrial environments where reliability, flexibility and efficient machine control are required.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144381 |
| HS Code | 85365080 |
| Product designation | Triple-touch actuators, spring return |
| Product type designation | 8LM2TB73 |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB7345 is a triple-touch spring return push button actuator designed for industrial machinery and automation control panels.
The actuator is a triple-touch front element with spring return operation for multiple manual control functions.
The Lovato 8LM2TB7345 is designed for standard Ø22 mm panel mounting.
The actuator uses a durable aluminium and zinc alloy construction suitable for industrial applications.
The actuator is rated for up to 1,000,000 mechanical operating cycles.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, durability and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB7345 Triple Touch Push Button Actuator", "sku": "8LM2TB7345", "mpn": "8LM2TB7345", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TB7345 triple-touch spring return actuator with I-STOP-II identification for Ø22mm industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator type", "value": "Triple-touch spring return actuator" }, { "@type": "PropertyValue", "name": "Function", "value": "I-STOP-II" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB7345 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7345 is a triple-touch spring return push button actuator designed for industrial machinery and automation control panels." } }, { "@type": "Question", "name": "What type of actuator is the 8LM2TB7345?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is a triple-touch front element with spring return operation for multiple manual control functions." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7345 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What material is used for construction?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses a durable aluminium and zinc alloy construction suitable for industrial applications." } }, { "@type": "Question", "name": "What is the mechanical life of this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is rated for up to 1,000,000 mechanical operating cycles." } } ] }
