Lovato Electric 8LM2TB7375 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £16.02.£11.22Current price is: £11.22.

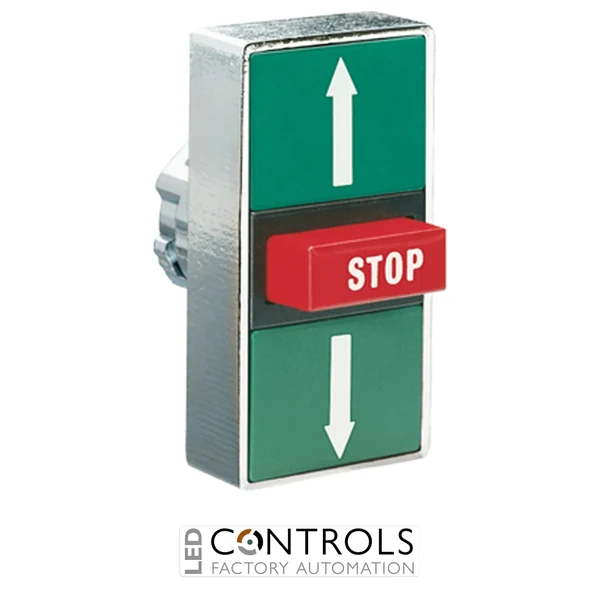

The Lovato 8LM2TB7375 is a robust triple-touch actuator with spring return operation designed for industrial control panels, machinery and automation systems. As part of the reliable Lovato 8LM metal push button series, this Ø22 mm operator device provides three manual control positions in a compact metal actuator, making it ideal for applications requiring clear directional commands and dependable switching performance.
Featuring two external flush push buttons and one middle extended push button, the 8LM2TB7375 provides a clear right arrow - STOP - left arrow control arrangement with green, red and green button identification. All push buttons feature spring return operation, ensuring reliable momentary switching and automatic return after activation.
Manufactured with a durable metal construction, the Lovato 8LM2TB7375 delivers excellent mechanical strength for industrial environments. Its standard Ø22 mm panel mounting format allows easy integration into electrical cabinets, operator stations and OEM machinery control systems.
Industrial push button assemblies provide operators with direct control over machinery and automation equipment. The Lovato 8LM2TB7375 combines three momentary control positions into one compact actuator, helping simplify control panel layouts while improving operator efficiency.
With its durable construction, ergonomic button arrangement and reliable spring return mechanism, this Lovato actuator is suitable for industrial applications requiring directional control, emergency stop identification and consistent machine operation.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144411 |
| HS Code | 85365080 |
| Product designation | Triple-touch actuators, spring return |
| Product type designation | 8LM2TB73 |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TB7375 is a triple-touch spring return push button actuator designed for industrial machinery, automation and directional control applications.
The actuator features two external flush push buttons and one middle extended push button with a right arrow - STOP - left arrow control arrangement.
The Lovato 8LM2TB7375 is designed for standard Ø22 mm panel mounting.
The actuator uses spring return momentary operation, allowing each button to return automatically after activation.
The Lovato 8LM2TB7375 provides three command positions within one compact actuator assembly.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, durability and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TB7375 Triple Touch Push Button Actuator", "sku": "8LM2TB7375", "mpn": "8LM2TB7375", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TB7375 triple-touch spring return actuator with two flush push buttons and one extended push button featuring right arrow STOP left arrow control symbols for Ø22mm industrial panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "Two external flush and one middle extended push button" }, { "@type": "PropertyValue", "name": "Function", "value": "Right arrow - STOP - Left arrow" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Operation", "value": "Spring return momentary" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TB7375 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7375 is a triple-touch spring return push button actuator designed for industrial machinery, automation and directional control applications." } }, { "@type": "Question", "name": "What button arrangement does the 8LM2TB7375 have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features two external flush push buttons and one middle extended push button with a right arrow - STOP - left arrow control arrangement." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7375 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What type of operation does this actuator use?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses spring return momentary operation, allowing each button to return automatically after activation." } }, { "@type": "Question", "name": "How many control positions does the actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TB7375 provides three command positions within one compact actuator assembly." } } ] }
