Lovato Electric 8LM2TBL203 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £13.24.£9.27Current price is: £9.27.

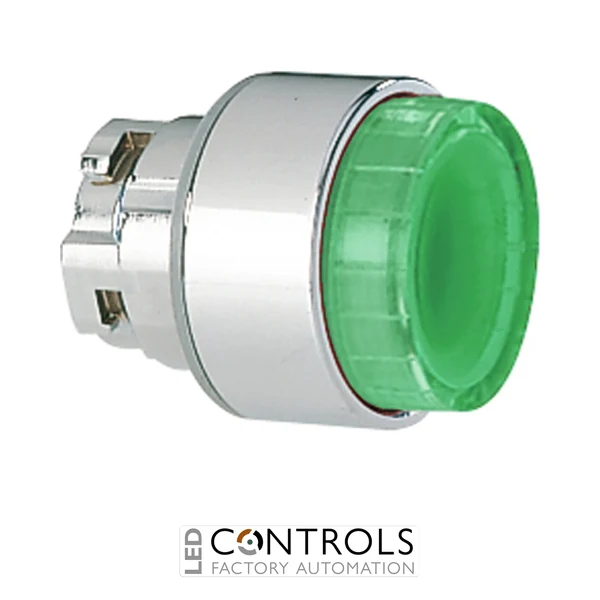

The Lovato 8LM2TBL203 is a reliable illuminated spring return push button actuator designed for industrial control panels, machinery and automation systems. As part of the robust Lovato 8LM metal push button series, this Ø22 mm operator device combines clear visual indication, durable construction and dependable momentary switching performance for industrial applications.
Featuring a green extended illuminated push button, the 8LM2TBL203 provides enhanced operator visibility and easy identification of control commands. The spring return mechanism ensures the actuator automatically returns to its normal position after activation, making it suitable for frequent industrial switching operations.
Manufactured using a robust aluminium and zinc alloy construction, the Lovato 8LM2TBL203 delivers excellent mechanical durability for demanding industrial environments. Its standard Ø22 mm panel mounting format allows straightforward installation into electrical cabinets, operator stations and OEM machinery control systems.
Illuminated push buttons provide operators with clear visual feedback while controlling machinery and automated processes. The Lovato 8LM2TBL203 combines reliable momentary switching with integrated illumination, helping improve operator awareness and machine interface performance.
With its compact design, high protection rating and durable metal construction, this Lovato actuator is suitable for industrial applications where reliable control, clear indication and long service life are required.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 35 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975041727 |
| HS Code | 85365080 |
| Product designation | Illuminated button actuators, spring return - Extended |
| Product type designation | 8LM2TBL20 |
| Colour | Green |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TBL203 is an illuminated spring return push button actuator designed for industrial machinery and automation control panels.
The actuator features a green illuminated extended push button for clear operator indication.
The Lovato 8LM2TBL203 is designed for standard Ø22 mm panel mounting.
The actuator provides an IP65 protection rating for improved resistance against dust and water ingress.
The actuator is rated for up to 1,000,000 mechanical operating cycles.
Lovato Electric push button components are widely used in industrial automation and machinery applications where reliable operator control, illumination and straightforward installation are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TBL203 Illuminated Push Button Actuator", "sku": "8LM2TBL203", "mpn": "8LM2TBL203", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Buttons", "description": "Lovato 8LM2TBL203 illuminated spring return push button actuator with green extended button for Ø22mm industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button type", "value": "Extended illuminated push button" }, { "@type": "PropertyValue", "name": "Colour", "value": "Green" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TBL203 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL203 is an illuminated spring return push button actuator designed for industrial machinery and automation control panels." } }, { "@type": "Question", "name": "What colour is the illuminated button?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a green illuminated extended push button for clear operator indication." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL203 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What protection rating does this actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating for improved resistance against dust and water ingress." } }, { "@type": "Question", "name": "What is the mechanical life of this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is rated for up to 1,000,000 mechanical operating cycles." } } ] }
