Lovato Electric 8LM2TBL6246 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £42.61.£29.83Current price is: £29.83.

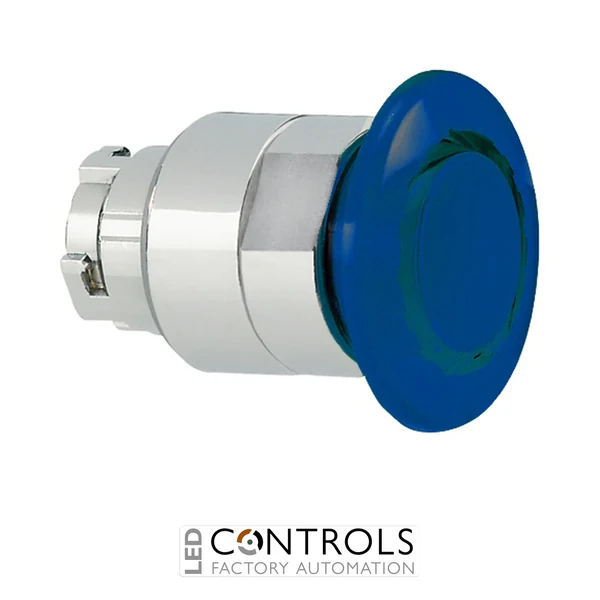

The Lovato Electric 8LM2TBL6246 is a professional illuminated mushroom head push button actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the trusted Lovato 8LM Platinum metal series, this actuator provides maintained latch operation with pull-to-release functionality and a large blue mushroom head for reliable operator control and clear visual indication.
Designed for demanding industrial environments, the 8LM2TBL6246 combines durable aluminium and zinc alloy construction with dependable mechanical performance. Its 40 mm illuminated mushroom head provides excellent operator visibility, while the latch mechanism keeps the button engaged until manually released.
The actuator is designed for Ø22 mm panel mounting and features an IP65 protection rating, making it suitable for industrial applications where reliable operation, durability and environmental protection are required. The pull-to-release function makes it ideal for maintained control applications.
The Lovato 8LM2TBL6246 provides a dependable human-machine interface solution for industrial machinery, automation equipment and electrical control systems. The maintained latch function allows the operator control state to remain active until manually released, making it suitable for applications requiring secure operator acknowledgement.
Built for professional panel builders and machine manufacturers, this actuator combines robust metal construction, clear visual indication and compatibility with Lovato 8LM series control components.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 105 |
| Qty. per package | 2 |
| Multiple qty. of packs per order | 2 |
| Package dimensions [mm] | 060X045X070 |
| Volume [cm³] | 94.5 |
| Bar code [EAN13] | 8013975087619 |
| HS Code | 85365080 |
| Product designation | Illuminated mushroom head button actuators - LATCH, PULL RELEASE. Ø40mm/1.6” |
| Product type designation | 8LM2TBL624 |
| Colour | Blue |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Max power | 1.2 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC002034 - Emergency stop complete |
The Lovato 8LM2TBL6246 is an illuminated mushroom head push button actuator used for maintained operator control in industrial automation systems and machinery.
The actuator uses a latch operation with pull-to-release functionality, allowing the button state to remain engaged until manually released.
The Lovato 8LM2TBL6246 is designed for standard 22 mm panel mounting.
The actuator features a blue illuminated 40 mm mushroom head button.
Yes. With durable metal construction and an IP65 protection rating, it is designed for industrial control and automation applications.
Lovato 8LM series push button actuators are widely used by automation engineers, electricians and machine builders requiring reliable operator controls, durable construction and clear visual indication.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TBL6246 Illuminated Mushroom Head Push Button Actuator", "sku": "8LM2TBL6246", "mpn": "8LM2TBL6246", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Button Actuators", "description": "Lovato Electric 8LM2TBL6246 blue illuminated latch pull-to-release mushroom head push button actuator with 22mm mounting, 40mm button diameter and IP65 protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button colour", "value": "Blue" }, { "@type": "PropertyValue", "name": "Button diameter", "value": "40 mm" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operation", "value": "Latch, pull to release" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TBL6246 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL6246 is an illuminated mushroom head push button actuator used for maintained operator control in industrial automation systems and machinery." } }, { "@type": "Question", "name": "What type of operation does the 8LM2TBL6246 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses a latch operation with pull-to-release functionality, allowing the button state to remain engaged until manually released." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL6246 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What colour is the mushroom head button?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a blue illuminated 40 mm mushroom head button." } }, { "@type": "Question", "name": "Is the Lovato 8LM2TBL6246 suitable for industrial environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. With durable metal construction and an IP65 protection rating, it is designed for industrial control and automation applications." } } ] }
