Lovato Electric 8LM2TBL7133 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £14.45.£10.12Current price is: £10.12.

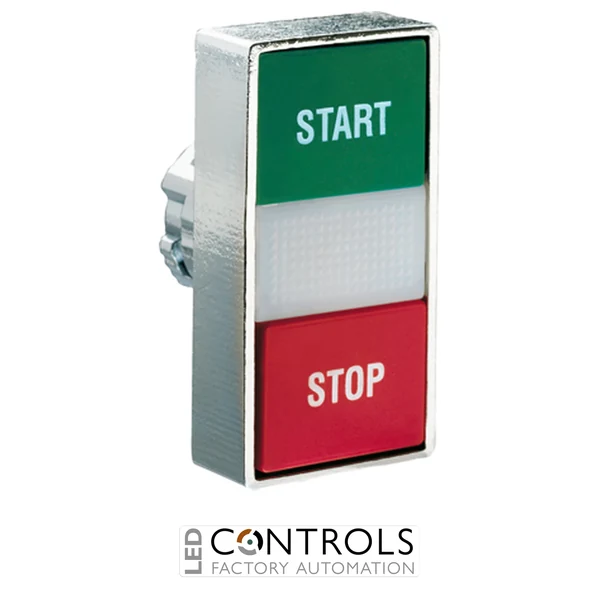

The Lovato Electric 8LM2TBL7133 is a professional double touch push button actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the reliable Lovato 8LM Platinum metal series, this actuator combines two flush spring return push buttons with START-STOP identification symbols in a compact 22 mm metal mounting format for efficient operator control.
Designed for demanding industrial environments, the 8LM2TBL7133 features a green and red dual push button arrangement with a white indicator, providing clear START and STOP command identification for machinery and automation applications. Its aluminium and zinc alloy construction ensures durable performance for professional control panels.
The actuator is designed for Ø22 mm panel mounting and uses two independent spring return flush push buttons, making it ideal for applications requiring combined start and stop controls in a single operator station.
The Lovato 8LM2TBL7133 provides an efficient human-machine interface solution for industrial machinery, automation equipment and electrical control systems. Combining START and STOP functions into one actuator reduces panel space requirements while maintaining clear operator control.
Built for professional panel builders and machine manufacturers, this double touch actuator delivers dependable switching performance, robust construction and compatibility with Lovato 8LM series control components.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144480 |
| HS Code | 85365080 |
| Product designation | Double touch actuators, spring return, white indicator - Two flush pushbuttons |
| Product type designation | 8LM2TBL71 |
| Colour | Green/Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Max power | 1.2 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TBL7133 is a double touch push button actuator used for industrial control panels, machinery and automation systems requiring integrated START and STOP operator controls.
The actuator uses spring return operation for both flush push buttons, providing momentary control functions.
The Lovato 8LM2TBL7133 is designed for standard 22 mm panel mounting.
The actuator features a green START and red STOP button configuration with a white indicator.
Yes. With durable metal construction and professional panel mounting design, it is suitable for industrial control and automation applications.
Lovato 8LM series push button actuators are widely used by automation engineers, electricians and machine builders requiring reliable operator controls, durable construction and clear visual indication.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TBL7133 Double Touch Push Button Actuator", "sku": "8LM2TBL7133", "mpn": "8LM2TBL7133", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Button Actuators", "description": "Lovato Electric 8LM2TBL7133 double touch spring return push button actuator with green START and red STOP flush buttons, white indicator and 22mm mounting for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "Green START and Red STOP double flush push buttons" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operation", "value": "Spring return" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1,000,000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TBL7133 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL7133 is a double touch push button actuator used for industrial control panels, machinery and automation systems requiring integrated START and STOP operator controls." } }, { "@type": "Question", "name": "What type of operation does the 8LM2TBL7133 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses spring return operation for both flush push buttons, providing momentary control functions." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL7133 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What button colours are included?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a green START and red STOP button configuration with a white indicator." } }, { "@type": "Question", "name": "Is the Lovato 8LM2TBL7133 suitable for industrial environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. With durable metal construction and professional panel mounting design, it is suitable for industrial control and automation applications." } } ] }
