Lovato Electric 8LM2TBL7212 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £13.77.£9.64Current price is: £9.64.

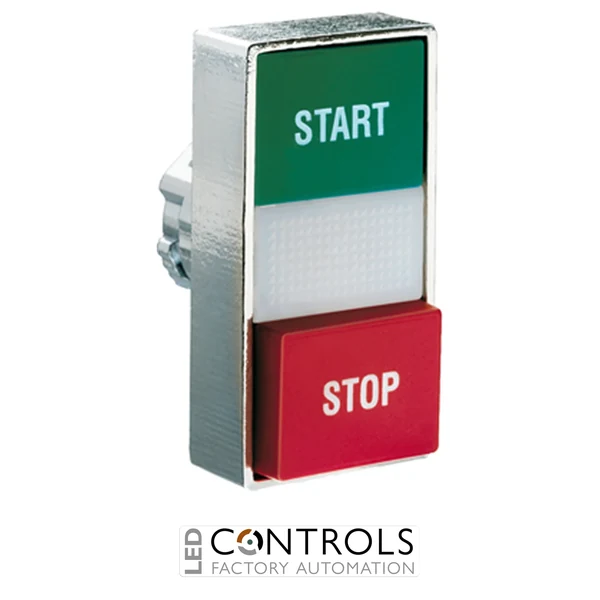

The Lovato Electric 8LM2TBL7212 is a professional double touch push button actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the reliable Lovato 8LM Platinum metal series, this actuator combines one extended and one flush spring return push button in a compact 22 mm metal mounting format for efficient operator control.
Designed for demanding industrial environments, the 8LM2TBL7212 features a black and red dual push button arrangement with a white indicator, allowing clear identification of separate control functions. Its aluminium and zinc alloy construction provides durable performance for professional panel building and automation applications.
The actuator is designed for Ø22 mm panel mounting and uses two independent spring return push buttons, with one extended and one flush button configuration, making it suitable for applications requiring multiple operator commands from a single control position.
The Lovato 8LM2TBL7212 provides an efficient human-machine interface solution for industrial machinery, automation equipment and electrical control systems. Combining two different push button profiles into one actuator reduces panel space requirements while maintaining clear operator control.
Built for professional panel builders and machine manufacturers, this double touch actuator delivers dependable switching performance, robust construction and compatibility with Lovato 8LM series control components.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 44 |
| Qty. per package | 5 |
| Multiple qty. of packs per order | 5 |
| Package dimensions [mm] | 065X046X090 |
| Volume [cm³] | 53.82 |
| Bar code [EAN13] | 8013975144497 |
| HS Code | 85365080 |
| Product designation | Double touch actuators, spring return, white indicator - One extended and one flush pushbuttons |
| Product type designation | 8LM2TBL72 |
| Colour | Black/Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Max power | 1.2 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TBL7212 is a double touch push button actuator used for industrial control panels, machinery and automation systems requiring two operator controls in one mounting position.
The actuator uses spring return operation for both push buttons, providing momentary control functions.
The Lovato 8LM2TBL7212 is designed for standard 22 mm panel mounting.
The actuator features a black and red button configuration with one extended and one flush push button.
Yes. With durable metal construction and professional panel mounting design, it is suitable for industrial control and automation applications.
Lovato 8LM series push button actuators are widely used by automation engineers, electricians and machine builders requiring reliable operator controls, durable construction and clear visual indication.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TBL7212 Double Touch Push Button Actuator", "sku": "8LM2TBL7212", "mpn": "8LM2TBL7212", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Push Button Actuators", "description": "Lovato Electric 8LM2TBL7212 double touch spring return push button actuator with one extended and one flush black and red buttons, white indicator and 22mm mounting for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Button configuration", "value": "One extended and one flush Black/Red push buttons" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operation", "value": "Spring return" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1,000,000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TBL7212 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL7212 is a double touch push button actuator used for industrial control panels, machinery and automation systems requiring two operator controls in one mounting position." } }, { "@type": "Question", "name": "What type of operation does the 8LM2TBL7212 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator uses spring return operation for both push buttons, providing momentary control functions." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TBL7212 is designed for standard 22 mm panel mounting." } }, { "@type": "Question", "name": "What button configuration is included?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a black and red button configuration with one extended and one flush push button." } }, { "@type": "Question", "name": "Is the Lovato 8LM2TBL7212 suitable for industrial environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. With durable metal construction and professional panel mounting design, it is suitable for industrial control and automation applications." } } ] }
