Lovato Electric 8LM2TC10 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £5.98.£4.18Current price is: £4.18.

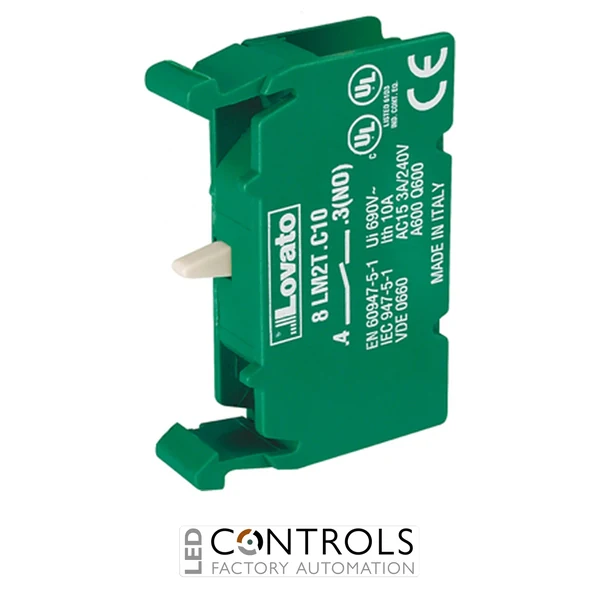

The Lovato Electric 8LM2TC10 is a reliable normally open (NO) auxiliary contact element designed for use with Lovato 8LM series Ø22 mm metal push buttons, selector switches and operator control devices. This compact contact block provides dependable switching performance for industrial control panels, automation systems and machine interfaces.
Designed for professional industrial applications, the 8LM2TC10 features a single normally open contact configuration with screw termination, allowing secure electrical connections and reliable operation in demanding control environments. It is suitable for start circuits, signalling functions, PLC inputs and general automation control logic.
The contact element forms part of the Lovato 8LM Platinum modular operator system, enabling flexible configuration of push buttons, selector switches and control stations. Its compact snap-on design supports efficient panel layouts while maintaining reliable electrical performance.
The Lovato 8LM2TC10 contact element provides dependable signal switching for industrial automation and electrical control systems. The normally open contact configuration closes when the operator device is activated, making it suitable for start commands, enabling functions and machine status signalling.
Its modular design allows integration with Lovato 8LM series push buttons, selector switches and control stations, helping engineers create flexible and reliable operator interfaces for modern industrial equipment.
| Weight [g] | 11 |
|---|---|
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 100X044X032 |
| Volume [cm³] | 14.08 |
| Bar code [EAN13] | 8013975036631 |
| HS Code | 85365080 |
| Product designation | Contact element - Screw termination |
| Product type designation | 8LM2TC10 |
| Rated insulation voltage Ui IEC/EN [V] | 690 |
| IEC Conventional free air thermal current Ith | 10 |
| Conductivity | 5V 10mA |
| UL/CSA and IEC/EN 60947-5-1 designation | A600 Q600 |
| 12V | 3 |
| 24V | 3 |
| 48V | 1.5 |
| 120V | 6 |
| 240V | 3 |
| 400V | 1.9 |
| 480V | 1.5 |
| 500V | 0.13 |
| 600V | 0.1 |
| 125V | 0.55 |
| 250V | 0.27 |
| 440V | 0.15 |
| Contact resistance | ≤20 |
| Tightening torque for terminals max [Nm] | 1 |
| Terminals screw | Clamp screw with washer |
| max | 12 |
| max [mm²] | 1 or 2 2.5 |
| min [°C] | -40 |
| max [°C] | +70 |
The Lovato 8LM2TC10 is a normally open auxiliary contact element used with Lovato 8LM series push buttons, selector switches and industrial operator devices.
The 8LM2TC10 provides a single normally open (1NO) contact configuration.
The Lovato 8LM2TC10 uses screw termination for secure electrical connections.
The contact element is typically installed behind Lovato 8LM Ø22 mm push buttons, selector switches and operator control devices in industrial panels.
The 8LM2TC10 provides a normally open contact, while the 8LM2TC01 provides a normally closed contact for different control circuit requirements.
Lovato 8LM series contact elements are widely used by automation engineers and machine builders requiring reliable modular switching components for industrial control systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TC10 NO Contact Element", "sku": "8LM2TC10", "mpn": "8LM2TC10", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Contact Blocks", "description": "Lovato Electric 8LM2TC10 normally open auxiliary contact element with screw termination for 22mm 8LM series push buttons and selector switches.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Contact configuration", "value": "1NO Normally Open" }, { "@type": "PropertyValue", "name": "Terminal type", "value": "Screw termination" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "690 V" }, { "@type": "PropertyValue", "name": "Thermal current", "value": "10 A" }, { "@type": "PropertyValue", "name": "Mounting size", "value": "22 mm" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TC10 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TC10 is a normally open auxiliary contact element used with Lovato 8LM series push buttons, selector switches and industrial operator devices." } }, { "@type": "Question", "name": "What type of contact does the 8LM2TC10 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TC10 provides a single normally open 1NO contact configuration." } }, { "@type": "Question", "name": "What termination method does this contact block use?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TC10 uses screw termination for secure electrical connections." } }, { "@type": "Question", "name": "Where is the 8LM2TC10 typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "The contact element is typically installed behind Lovato 8LM Ø22 mm push buttons, selector switches and operator control devices in industrial panels." } }, { "@type": "Question", "name": "What is the difference between 8LM2TC10 and 8LM2TC01?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TC10 provides a normally open contact, while the 8LM2TC01 provides a normally closed contact for different control circuit requirements." } } ] }
