Lovato Electric 8LM2TEL400 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £4.91.£3.44Current price is: £3.44.

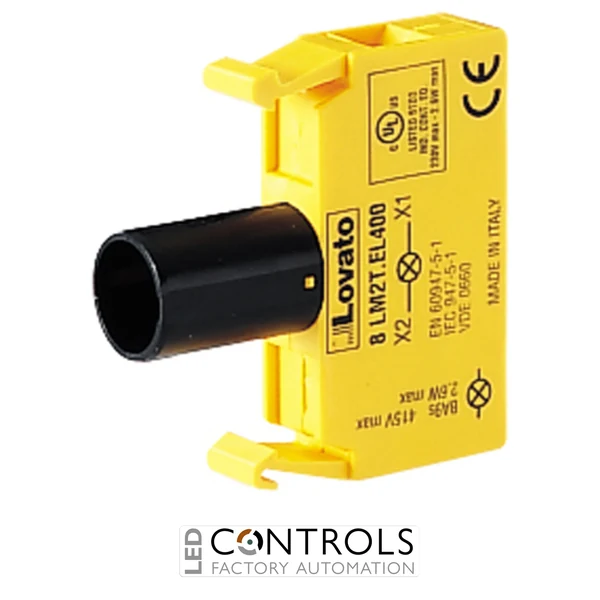

The Lovato Electric 8LM2TEL400 is a professional lamp holder element designed for use with Lovato 8LM series Ø22 mm metal push buttons, selector switches and illuminated operator devices. This compact lamp holder provides reliable direct supply connection for industrial control panels, automation systems and machine operator interfaces. ([catalogue.lovatoelectric.com](https://catalogue.lovatoelectric.com/gl_en/8LM2TEL400/snp?utm_source=chatgpt.com))
Designed for demanding industrial applications, the 8LM2TEL400 supports direct AC/DC supply up to 415 V, allowing integration of high-voltage illumination systems within Lovato 8LM operator devices. Its compact construction enables efficient panel layouts while maintaining reliable electrical performance. ([catalogue.lovatoelectric.com](https://catalogue.lovatoelectric.com/gl_en/8LM2TEL400/snp?utm_source=chatgpt.com))
The lamp holder is supplied without mounting adapter and is designed for use with the appropriate Lovato mounting accessories. It provides a dependable solution for illuminated push buttons, selector switches and pilot light applications in industrial environments. ([catalogue.lovatoelectric.com](https://catalogue.lovatoelectric.com/ca_en/8LM2TEL400/snp?utm_source=chatgpt.com))
The Lovato 8LM2TEL400 lamp holder element provides dependable illumination capability for industrial operator controls. By supporting direct AC/DC supply, it enables clear visual indication of machine states, operating conditions and control functions.
Its modular design allows integration with Lovato 8LM series push buttons, selector switches and illuminated control devices, helping engineers create flexible and reliable operator interfaces for modern industrial equipment.
| Voltage | 400 V |
|---|---|
| Weight [g] | 11 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 120X045X060 |
| Volume [cm³] | 32.4 |
| Bar code [EAN13] | 8013975043509 |
| HS Code | 85366190 |
| Product designation | lamp-holder elements without mounting adapter |
| Product type designation | 8LM2TEL400 |
| Rated frequency [Hz] | 50/60 |
| Supply voltage (AC) [V] | ≤415 |
| Supply voltage (DC) [V] | ≤415 |
| Tightening torque for terminals max [Nm] | 1 |
| max | 12 |
| max [mm²] | 1 or 2 2.5 |
| Mounting adapter | LM2TAU120 |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000204 - Lamp holder block for control circuit devices |
The Lovato 8LM2TEL400 is a lamp holder element used for illuminated Lovato 8LM series push buttons, selector switches and operator control devices.
The lamp holder supports direct supply operation up to 415 V AC/DC.
No. The 8LM2TEL400 is supplied without a mounting adapter and can be used with the compatible LM2TAU120 adapter.
The lamp holder is typically installed in industrial control panels, illuminated push buttons and operator interface systems.
Yes. It is designed for professional industrial automation, machinery and electrical control applications.
Lovato 8LM series illumination components are widely used by automation engineers and machine builders requiring reliable visual indication solutions for industrial control systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TEL400 Lamp Holder Element", "sku": "8LM2TEL400", "mpn": "8LM2TEL400", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Industrial Lamp Holder Elements", "description": "Lovato Electric 8LM2TEL400 lamp holder element without mounting adapter for 22mm 8LM metal series devices with direct supply up to 415V AC/DC.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Product type", "value": "Lamp holder element" }, { "@type": "PropertyValue", "name": "Supply voltage AC", "value": "≤415 V AC" }, { "@type": "PropertyValue", "name": "Supply voltage DC", "value": "≤415 V DC" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Mounting adapter", "value": "LM2TAU120" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TEL400 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TEL400 is a lamp holder element used for illuminated Lovato 8LM series push buttons, selector switches and operator control devices." } }, { "@type": "Question", "name": "What voltage can the 8LM2TEL400 support?", "acceptedAnswer": { "@type": "Answer", "text": "The lamp holder supports direct supply operation up to 415 V AC/DC." } }, { "@type": "Question", "name": "Does the 8LM2TEL400 include a mounting adapter?", "acceptedAnswer": { "@type": "Answer", "text": "No. The 8LM2TEL400 is supplied without a mounting adapter and can be used with the compatible LM2TAU120 adapter." } }, { "@type": "Question", "name": "Where is the Lovato 8LM2TEL400 typically installed?", "acceptedAnswer": { "@type": "Answer", "text": "The lamp holder is typically installed in industrial control panels, illuminated push buttons and operator interface systems." } }, { "@type": "Question", "name": "Is the 8LM2TEL400 suitable for industrial applications?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. It is designed for professional industrial automation, machinery and electrical control applications." } } ] }
