Lovato Electric 8LM2TJ200 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £78.87.£55.21Current price is: £55.21.

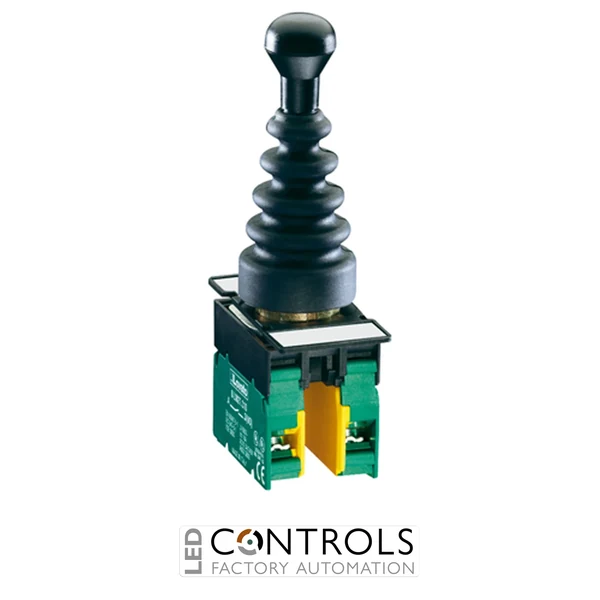

The Lovato 8LM2TJ200 is a robust and reliable 22mm metal joystick switch designed for industrial control panels, machinery interfaces and automation systems requiring precise manual control. As part of the Lovato 8LM series command and signalling components, it provides machine builders and automation engineers with a durable solution for directional control applications.
This spring-return joystick operator features a metal construction, no mechanical interlock and includes 2 normally open (NO) auxiliary contacts. Its compact 22mm mounting format enables easy integration into electrical cabinets, operator panels and industrial machinery controls.
With an IP65 protection rating, aluminium and zinc alloy construction and a long mechanical life of up to 1,000,000 operating cycles, the 8LM2TJ200 delivers dependable performance in demanding industrial environments.
Joystick switches provide operators with direct and responsive control over industrial equipment functions such as movement, positioning and directional operation. The Lovato 8LM2TJ200 offers reliable spring-return control for applications where accurate operator input is required.
Designed for integration into modern automation systems, this joystick switch combines compact panel installation with robust industrial performance. Its metal construction and high protection rating make it suitable for demanding machine control environments.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 82 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975107669 |
| HS Code | 85365080 |
| Product designation | Joystick |
| Product type designation | 8LM2TJ |
| Type of positions | Joystick |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Rated insulation voltage Ui IEC/EN [V] | 690 |
| IEC Conventional free air thermal current Ith | 10 |
| UL/CSA and IEC/EN 60947-5-1 designation | A300 Q300 |
| 12V | 0.55 |
| 24V | 0.55 |
| 48V | 0.55 |
| 120V | 6 |
| 240V | 3 |
| 125V | 0.55 |
| 250V | 0.27 |
| Contact resistance | ≤20 |
| Mechanical life | 1000000 |
| Tightening torque for terminals max [Nm] | 1 |
| Terminals screw | Clamp screw with washer |
| Mounting adapter | Included with contacts |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000632 - Control switch, Joystick |
The Lovato 8LM2TJ200 is a two-direction spring-return joystick switch used for manual control of industrial machinery and automation systems.
The 8LM2TJ200 is designed for 22mm panel mounting applications.
The joystick includes 2 normally open auxiliary contacts for switching control functions.
No, the Lovato 8LM2TJ200 operates without mechanical interlock and provides spring-return joystick action.
The Lovato 8LM2TJ200 has an IP65 protection rating for suitable industrial installations.
Lovato Electric 8LM series joystick switches are widely used in industrial automation, machinery and control panel applications where reliable manual control and long-lasting performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TJ200 Joystick Switch 22mm Metal Spring Return 2NO", "sku": "8LM2TJ200", "mpn": "8LM2TJ200", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Joystick Switches", "description": "Lovato 8LM2TJ200 22mm metal joystick switch with spring return two-direction operation and 2NO auxiliary contacts for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Mounting size", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Contacts", "value": "2NO auxiliary contacts" }, { "@type": "PropertyValue", "name": "Material", "value": "Aluminium and zinc alloy" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1,000,000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TJ200 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TJ200 is a two-direction spring-return joystick switch used for manual control of industrial machinery and automation systems." } }, { "@type": "Question", "name": "What mounting size does the 8LM2TJ200 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TJ200 is designed for 22mm panel mounting applications." } }, { "@type": "Question", "name": "How many contacts does the Lovato 8LM2TJ200 include?", "acceptedAnswer": { "@type": "Answer", "text": "The joystick includes 2 normally open auxiliary contacts for switching control functions." } }, { "@type": "Question", "name": "Does the 8LM2TJ200 have mechanical interlocking?", "acceptedAnswer": { "@type": "Answer", "text": "No, the Lovato 8LM2TJ200 operates without mechanical interlock and provides spring-return joystick action." } }, { "@type": "Question", "name": "What protection rating does this joystick switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TJ200 has an IP65 protection rating for suitable industrial installations." } } ] }
