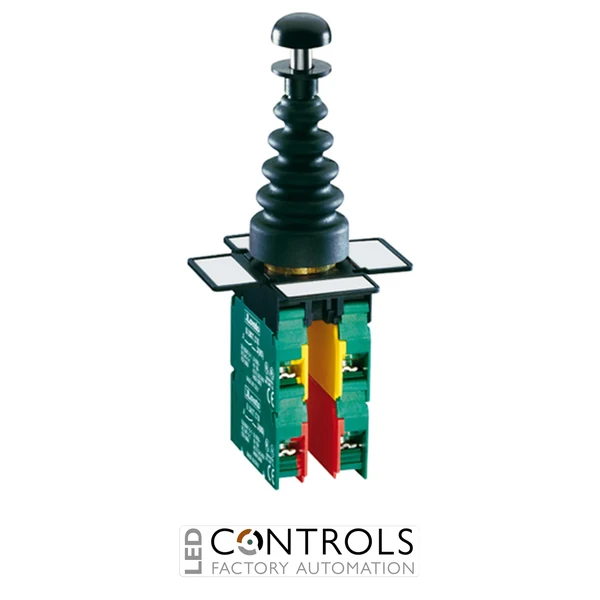

8LM2TJ211 – MAINTAINED 2 DIRECTIONAL JOY STICK 2NO C

Q: What mounting size does the 8LM2TJ211 require?

The 8LM2TJ211 is designed for 22mm panel mounting applications.

Q: How many contacts does the Lovato 8LM2TJ211 include?

The joystick includes 2 normally open auxiliary contacts for switching control functions.

Q: Does the 8LM2TJ211 include mechanical interlocking?

Yes, the Lovato 8LM2TJ211 includes mechanical interlock functionality for improved directional control safety.

Q: What protection rating does this joystick switch have?

The Lovato 8LM2TJ211 has an IP65 protection rating for suitable industrial installations.

Lovato Electric 8LM2TJ211 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TJ211MPN: 8LM2TJ211

Why Choose the Lovato 8LM2TJ211 Joystick Switch?

The Lovato 8LM2TJ211 is a robust and reliable 22mm metal joystick switch designed for industrial control panels, machinery interfaces and automation systems requiring precise maintained directional control. As part of the Lovato 8LM series command and signalling components, it provides machine builders and automation engineers with a durable solution for demanding operator control applications.

This joystick operator features a durable metal construction, mechanical interlock functionality and includes 2 normally open (NO) auxiliary contacts. The maintained two-direction joystick design allows the selected position to remain active until manually changed, making it suitable for applications requiring continuous directional commands.

With an IP65 protection rating, 22mm panel mounting format, metal front construction and compatibility with Lovato 8LM series accessories, the 8LM2TJ211 delivers dependable performance in industrial automation and machinery control environments.

Key Advantages

Professional 22mm metal joystick switch for industrial control applications.
Maintained two-direction operation for continuous machine commands.
Mechanical interlock design for improved directional control safety.
Includes 2NO auxiliary contacts for flexible switching functions.
Durable aluminium and zinc alloy construction.
IP65 protection rating suitable for industrial environments.

Key Features

Lovato 8LM series joystick switch.
22mm panel mounting diameter.
Metal front construction.
Two-direction maintained joystick operation.
With mechanical interlock.
2 normally open auxiliary contacts.
IP65 IEC protection rating.
Suitable for industrial command and signalling systems.

Reliable Manual Control for Industrial Machinery

Joystick switches provide operators with direct and responsive control over industrial equipment functions including movement, positioning and directional commands. The Lovato 8LM2TJ211 combines ergonomic operation with industrial-grade construction to support reliable machine control.

Designed for integration into modern automation systems, this joystick switch offers compact panel installation, robust mechanical performance and reliable switching operation. Its interlocked maintained design provides dependable directional control for demanding industrial applications.

Typical Applications

Industrial machinery control panels.
Material handling equipment.
Lifting and hoisting systems.
OEM automation machinery.
Machine operator interfaces.
Industrial switching and control systems.

Technical Specifications

Tick the specs you need, then view products that match.

Contacts	2NO
Mounting Diameter	22 mm
Operation	Maintained
Product Series	Lovato 8LM Metal
IP Rating	IP65
Weight [g]	82
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	133X044X032
Volume [cm³]	187.264
Bar code [EAN13]	8013975107690
HS Code	85365080
Product designation	Joystick
Product type designation	8LM2TJ
Type of positions	Joystick
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Rated insulation voltage Ui IEC/EN [V]	690
IEC Conventional free air thermal current Ith	10
UL/CSA and IEC/EN 60947-5-1 designation	A300 Q300
12V	0.55
24V	0.55
48V	0.55
120V	6
240V	3
125V	0.55
250V	0.27
Contact resistance	≤20
Mechanical life	1000000
Tightening torque for terminals max [Nm]	1
Terminals screw	Clamp screw with washer
Mounting adapter	Included with contacts
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000632 - Control switch, Joystick

Frequently Asked Questions

What is the Lovato 8LM2TJ211 used for?

The Lovato 8LM2TJ211 is a maintained two-direction joystick switch used for manual directional control in industrial machinery and automation systems.

What mounting size does the 8LM2TJ211 require?

The 8LM2TJ211 is designed for 22mm panel mounting applications.

How many contacts does the Lovato 8LM2TJ211 include?

The joystick includes 2 normally open auxiliary contacts for switching control functions.

Does the 8LM2TJ211 include mechanical interlocking?

Yes, the Lovato 8LM2TJ211 includes mechanical interlock functionality for improved directional control safety.

What protection rating does this joystick switch have?

The Lovato 8LM2TJ211 has an IP65 protection rating for suitable industrial installations.

Trusted by Industrial Control Engineers Worldwide

Lovato Electric 8LM series joystick switches are widely used in industrial automation, machinery and control panel applications where reliable manual control, safety and long-lasting performance are required.

Contacts	2NO
Mounting Diameter	22 mm
Operation	Maintained
Product Series	Lovato 8LM Metal
IP Rating	IP65
Weight [g]	82
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	133X044X032
Volume [cm³]	187.264
Bar code [EAN13]	8013975107690
HS Code	85365080
Product designation	Joystick
Product type designation	8LM2TJ
Type of positions	Joystick
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Rated insulation voltage Ui IEC/EN [V]	690
IEC Conventional free air thermal current Ith	10
UL/CSA and IEC/EN 60947-5-1 designation	A300 Q300
12V	0.55
24V	0.55
48V	0.55
120V	6
240V	3
125V	0.55
250V	0.27
Contact resistance	≤20
Mechanical life	1000000
Tightening torque for terminals max [Nm]	1
Terminals screw	Clamp screw with washer
Mounting adapter	Included with contacts
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000632 - Control switch, Joystick
