Lovato Electric 8LM2TJ410 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £107.22.£75.05Current price is: £75.05.

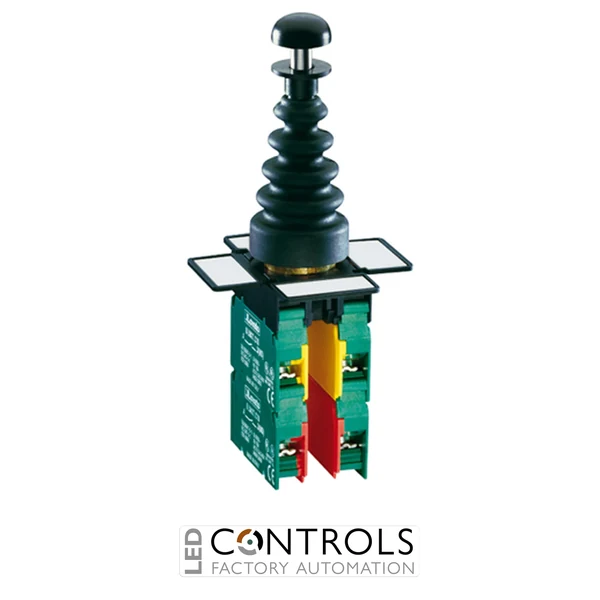

The Lovato 8LM2TJ410 is a robust and reliable 22mm metal joystick switch designed for industrial control panels, machinery interfaces and automation systems requiring precise multi-directional manual control. As part of the Lovato 8LM series command and signalling components, it provides machine builders and automation engineers with a durable solution for demanding operator control applications.
This joystick operator features a durable metal construction, mechanical interlock functionality and includes 4 normally open (NO) auxiliary contacts. The four-direction spring return design provides responsive momentary control while the interlocking mechanism helps prevent unintended simultaneous directional operation.
With an IP65 protection rating, aluminium and zinc alloy construction, 690V insulation rating and a mechanical life of up to 1,000,000 operations, the 8LM2TJ410 delivers dependable performance in demanding industrial environments.
Joystick switches provide operators with direct and responsive control over industrial equipment functions including movement, positioning and directional operation. The Lovato 8LM2TJ410 combines ergonomic operation with industrial-grade construction to support reliable machine control.
Designed for integration into modern automation systems, this joystick switch offers compact panel installation, robust mechanical performance and reliable switching operation. Its interlocked four-direction design provides dependable directional control for demanding industrial applications.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 104 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 133X044X032 |
| Volume [cm³] | 187.264 |
| Bar code [EAN13] | 8013975107720 |
| HS Code | 85365080 |
| Product designation | Joystick |
| Product type designation | 8LM2TJ |
| Type of positions | Joystick |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Rated insulation voltage Ui IEC/EN [V] | 690 |
| IEC Conventional free air thermal current Ith | 10 |
| UL/CSA and IEC/EN 60947-5-1 designation | A300 Q300 |
| 12V | 0.55 |
| 24V | 0.55 |
| 48V | 0.55 |
| 120V | 6 |
| 240V | 3 |
| 125V | 0.55 |
| 250V | 0.27 |
| Contact resistance | ≤20 |
| Mechanical life | 1000000 |
| Tightening torque for terminals max [Nm] | 1 |
| Terminals screw | Clamp screw with washer |
| Mounting adapter | Included with contacts |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000632 - Control switch, Joystick |
The Lovato 8LM2TJ410 is a four-direction spring return joystick switch used for manual directional control in industrial machinery and automation systems.
The 8LM2TJ410 is designed for 22mm panel mounting applications.
The joystick includes 4 normally open auxiliary contacts for switching control functions.
Yes, the Lovato 8LM2TJ410 includes mechanical interlock functionality for improved directional control safety.
The Lovato 8LM2TJ410 has an IP65 protection rating for suitable industrial installations.
Lovato Electric 8LM series joystick switches are widely used in industrial automation, machinery and control panel applications where reliable manual control, safety and long-lasting performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TJ410 Joystick Switch 22mm Metal Spring Return Mechanical Interlock 4NO", "sku": "8LM2TJ410", "mpn": "8LM2TJ410", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Joystick Switches", "description": "Lovato 8LM2TJ410 22mm metal four-direction spring return joystick switch with mechanical interlock and 4NO auxiliary contacts for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Mounting size", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Contacts", "value": "4NO auxiliary contacts" }, { "@type": "PropertyValue", "name": "Mechanical interlock", "value": "Yes" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Rated insulation voltage", "value": "690 V" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TJ410 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TJ410 is a four-direction spring return joystick switch used for manual directional control in industrial machinery and automation systems." } }, { "@type": "Question", "name": "What mounting size does the 8LM2TJ410 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TJ410 is designed for 22mm panel mounting applications." } }, { "@type": "Question", "name": "How many contacts does the Lovato 8LM2TJ410 include?", "acceptedAnswer": { "@type": "Answer", "text": "The joystick includes 4 normally open auxiliary contacts for switching control functions." } }, { "@type": "Question", "name": "Does the 8LM2TJ410 include mechanical interlocking?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the Lovato 8LM2TJ410 includes mechanical interlock functionality for improved directional control safety." } }, { "@type": "Question", "name": "What protection rating does this joystick switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TJ410 has an IP65 protection rating for suitable industrial installations." } } ] }
