Lovato Electric 8LM2TMM4 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £36.80.£25.76Current price is: £25.76.

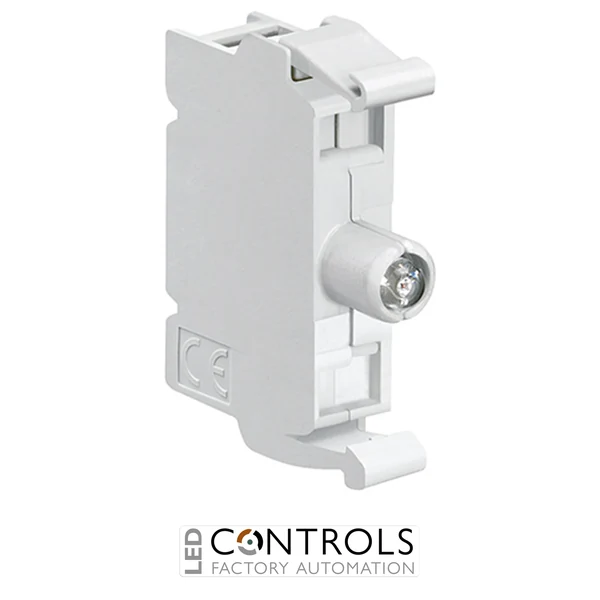

The Lovato 8LM2TMM4 is a high-quality LED integrated lamp-holder with flashing light function designed for industrial control panels, operator interfaces and machine automation systems. Part of the Lovato 8LM metal series, this compact Ø22 mm pilot light component provides clear red visual indication for electrical equipment and industrial control applications.
Designed for reliable signalling in demanding industrial environments, the 8LM2TMM4 combines an integrated LED light source with a metal mounting design for easy installation in control stations, switchgear assemblies and machine panels. Its flashing light operation provides an effective warning or status indication where enhanced visibility is required.
With an operating voltage range of 187–265 V AC and a red LED indicator, the Lovato 8LM2TMM4 is suitable for a wide range of industrial automation and low-voltage control applications. Its long electrical life and compact construction make it a dependable solution for modern operator control systems.
LED pilot lights and lamp-holders are essential components in industrial automation, providing operators with immediate visual feedback on machine conditions, alarms and operating states. The Lovato 8LM2TMM4 offers a bright red flashing indication that improves visibility in electrical panels and control stations.
The integrated LED technology provides efficient operation with low maintenance requirements compared with traditional indicator lamps. Its robust construction makes it suitable for manufacturing equipment, switchboards and industrial control applications where dependable status indication is required.
| Voltage | 265 V |
|---|---|
| Weight [g] | 16 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 120X045X060 |
| Volume [cm³] | 32.4 |
| Bar code [EAN13] | 8013975107232 |
| HS Code | 85395200 |
| Product designation | LED elements flashing light |
| Product type designation | 8LM2TM |
| Colour | Red |
| Rated frequency [Hz] | 50/60 |
| Supply voltage (AC) [V] | 185…265 |
| Electrical life [hours] | 100000 |
| Tightening torque for terminals max [Nm] | 1 |
| max | 12 |
| max [mm²] | 1 or 2 2.5 |
| Mounting adapter | LM2TAU120 |
| min [°C] | -40 |
| max [°C] | +85 |
| ETIM 8.0 | EC000204 - Lamp holder block for control circuit devices |
The Lovato 8LM2TMM4 is used as a red LED flashing indicator for industrial control panels, automation systems and machine operator stations.
The 8LM2TMM4 operates on a 187–265 V AC supply with a rated frequency of 50/60 Hz.
The Lovato 8LM2TMM4 provides a red LED flashing light indication.
The 8LM2TMM4 is designed for Ø22 mm panel mounting applications.
It is commonly installed in industrial control panels, electrical cabinets, automation equipment and operator control stations.
Lovato 8LM series signalling devices are widely used in industrial automation and control applications to provide reliable visual indication, efficient LED performance and durable panel integration.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TMM4 LED Integrated Lamp Holder Flashing Light Red 187-265VAC", "sku": "8LM2TMM4", "mpn": "8LM2TMM4", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Components", "description": "Lovato 8LM2TMM4 red LED integrated lamp-holder with flashing light function, designed for Ø22mm industrial control panels and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Light colour", "value": "Red" }, { "@type": "PropertyValue", "name": "Supply voltage", "value": "187–265 V AC" }, { "@type": "PropertyValue", "name": "Frequency", "value": "50/60 Hz" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "Ø22 mm" }, { "@type": "PropertyValue", "name": "Electrical life", "value": "100000 hours" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TMM4 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TMM4 is used as a red LED flashing indicator for industrial control panels, automation systems and machine operator stations." } }, { "@type": "Question", "name": "What voltage does the Lovato 8LM2TMM4 operate on?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TMM4 operates on a 187–265 V AC supply with a rated frequency of 50/60 Hz." } }, { "@type": "Question", "name": "What colour LED does this lamp-holder provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TMM4 provides a red LED flashing light indication." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TMM4 is designed for Ø22 mm panel mounting applications." } }, { "@type": "Question", "name": "Where is the Lovato 8LM2TMM4 commonly installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial control panels, electrical cabinets, automation equipment and operator control stations." } } ] }
