Lovato Electric 8LM2TMM5 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £36.80.£25.76Current price is: £25.76.

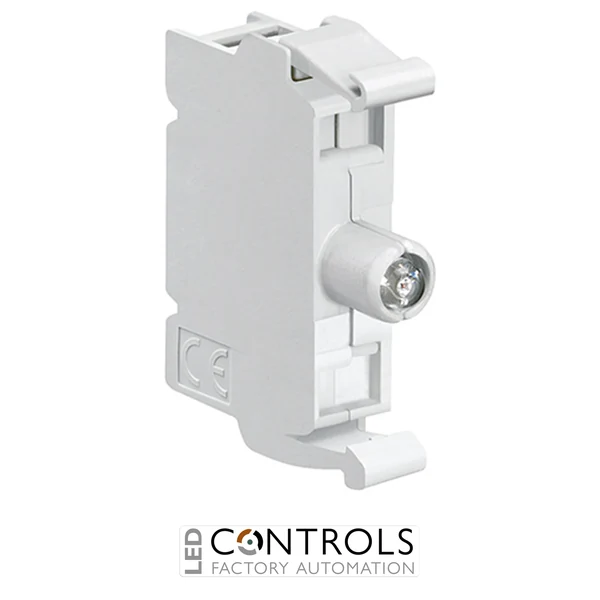

The Lovato 8LM2TMM5 is a high-quality LED integrated lamp-holder with flashing light function designed for industrial control panels, operator interfaces and automation systems. Part of the Lovato 8LM metal series, this compact Ø22 mm signalling component provides clear yellow visual indication for electrical equipment and industrial control applications.
Designed for reliable signalling in demanding industrial environments, the 8LM2TMM5 combines an integrated LED light source with a durable metal mounting format for straightforward installation in control stations, switchgear assemblies and machine panels. Its flashing light operation provides enhanced visibility for warning and status indication applications.
With a supply voltage range of 185–265 V AC and a yellow LED indicator, the Lovato 8LM2TMM5 is suitable for industrial automation and low-voltage control applications. Its long electrical life and compact construction provide dependable performance for modern operator control systems.
LED pilot lights and lamp-holders provide operators with immediate visual feedback on machine conditions, alarms and operating states. The Lovato 8LM2TMM5 delivers a bright yellow flashing indication that improves visibility in electrical panels and industrial control stations.
The integrated LED technology offers efficient operation with reduced maintenance requirements compared with traditional indicator lamps. Its robust design makes it suitable for manufacturing equipment, switchboards and automation systems where dependable status indication is required.
| Voltage | 265 V |
|---|---|
| Weight [g] | 16 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 120X045X060 |
| Volume [cm³] | 32.4 |
| Bar code [EAN13] | 8013975107249 |
| HS Code | 85395200 |
| Product designation | LED elements flashing light |
| Product type designation | 8LM2TM |
| Colour | Yellow |
| Rated frequency [Hz] | 50/60 |
| Supply voltage (AC) [V] | 185…265 |
| Electrical life [hours] | 100000 |
| Tightening torque for terminals max [Nm] | 1 |
| max | 12 |
| max [mm²] | 1 or 2 2.5 |
| Mounting adapter | LM2TAU120 |
| min [°C] | -40 |
| max [°C] | +85 |
| ETIM 8.0 | EC000204 - Lamp holder block for control circuit devices |
The Lovato 8LM2TMM5 is used as a yellow LED flashing indicator for industrial control panels, automation systems and machine operator stations.
The 8LM2TMM5 operates on a 185–265 V AC supply with a rated frequency of 50/60 Hz.
The Lovato 8LM2TMM5 provides a yellow LED flashing light indication.
The 8LM2TMM5 is designed for Ø22 mm panel mounting applications.
It is commonly installed in industrial control panels, electrical cabinets, automation equipment and operator control stations.
Lovato 8LM series signalling devices are widely used in industrial automation and control applications to provide reliable visual indication, efficient LED performance and durable panel integration.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TMM5 LED Integrated Lamp Holder Flashing Light Yellow 185-265VAC", "sku": "8LM2TMM5", "mpn": "8LM2TMM5", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Components", "description": "Lovato 8LM2TMM5 yellow LED integrated lamp-holder with flashing light function, designed for Ø22mm industrial control panels and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Light colour", "value": "Yellow" }, { "@type": "PropertyValue", "name": "Supply voltage", "value": "185–265 V AC" }, { "@type": "PropertyValue", "name": "Frequency", "value": "50/60 Hz" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "Ø22 mm" }, { "@type": "PropertyValue", "name": "Electrical life", "value": "100000 hours" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TMM5 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TMM5 is used as a yellow LED flashing indicator for industrial control panels, automation systems and machine operator stations." } }, { "@type": "Question", "name": "What voltage does the Lovato 8LM2TMM5 operate on?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TMM5 operates on a 185–265 V AC supply with a rated frequency of 50/60 Hz." } }, { "@type": "Question", "name": "What colour LED does this lamp-holder provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TMM5 provides a yellow LED flashing light indication." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TMM5 is designed for Ø22 mm panel mounting applications." } }, { "@type": "Question", "name": "Where is the Lovato 8LM2TMM5 commonly installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial control panels, electrical cabinets, automation equipment and operator control stations." } } ] }
