Lovato Electric 8LM2TQ206 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £24.59.£17.21Current price is: £17.21.

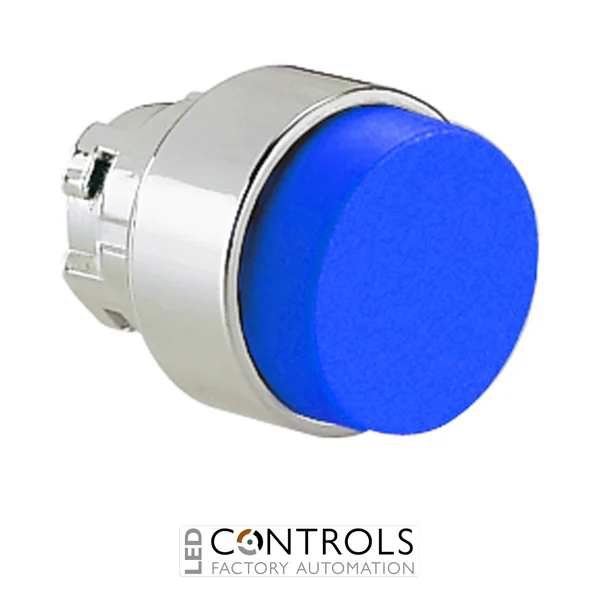

The Lovato 8LM2TQ206 is a reliable Ø22 mm extended push-push button actuator designed for industrial control panels, operator stations and machine automation systems. Part of the Lovato 8LM metal series, this extended blue actuator provides dependable manual control for electrical switching applications where durable and ergonomic operator interfaces are required.
Designed for demanding industrial environments, the 8LM2TQ206 features a robust aluminium and zinc alloy construction with an IP65 front protection rating. Its push-push operating mechanism provides maintained switching operation, making it suitable for machinery panels, control stations and industrial automation equipment.
With a compact 22 mm mounting format, long mechanical life and compatibility with Lovato 8LM series accessories, the 8LM2TQ206 provides a dependable solution for OEM machine builders and electrical control system designers.
Push-push actuators provide operators with a simple and effective method of controlling machine functions, enabling reliable switching commands from control panels and operator stations. The Lovato 8LM2TQ206 delivers durable mechanical operation and clear tactile feedback for industrial applications.
Its metal construction, IP65 protection and compatibility with Lovato modular switching components make it suitable for automation systems where long service life and dependable operation are essential.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 35 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975109816 |
| HS Code | 85365080 |
| Product designation | Push-push button actuators - Extended |
| Product type designation | 8LM2TQ206 |
| Colour | Blue |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - spring return actuators | 1000000 |
| Mechanical life - Push-Push actuators | 500000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | 1, 2, 3R, 4, 4X, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TQ206 is used as an extended push-push button actuator for industrial control panels, machinery and automation systems.
The 8LM2TQ206 is designed for Ø22 mm panel mounting applications.
The actuator features a blue extended button design.
The Lovato 8LM2TQ206 provides an IP65 protection rating for front panel applications.
It is commonly installed in industrial control panels, machine interfaces and automation equipment requiring reliable push-push operation.
Lovato 8LM series control components are widely used in industrial automation applications to provide reliable operator control, durable construction and easy integration into modern control panels.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TQ206 Push-Push Button Actuator Ø22mm Metal Extended Blue", "sku": "8LM2TQ206", "mpn": "8LM2TQ206", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Components", "description": "Lovato 8LM2TQ206 push-push button actuator, Ø22mm metal series extended blue actuator for industrial control panels and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Product type", "value": "Push-push button actuator" }, { "@type": "PropertyValue", "name": "Colour", "value": "Blue" }, { "@type": "PropertyValue", "name": "Operator style", "value": "Extended" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "Ø22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TQ206 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TQ206 is used as an extended push-push button actuator for industrial control panels, machinery and automation systems." } }, { "@type": "Question", "name": "What mounting size does the Lovato 8LM2TQ206 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TQ206 is designed for Ø22 mm panel mounting applications." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TQ206 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a blue extended button design." } }, { "@type": "Question", "name": "What protection rating does this actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TQ206 provides an IP65 protection rating for front panel applications." } }, { "@type": "Question", "name": "Where is the Lovato 8LM2TQ206 commonly installed?", "acceptedAnswer": { "@type": "Answer", "text": "It is commonly installed in industrial control panels, machine interfaces and automation equipment requiring reliable push-push operation." } } ] }
