Lovato Electric 8LM2TQL104 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £35.58.£24.91Current price is: £24.91.

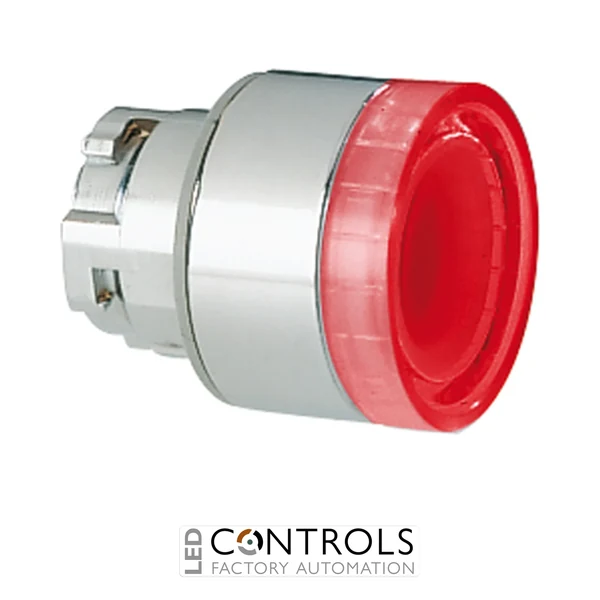

The Lovato 8LM2TQL104 is a reliable Ø22 mm illuminated push-push button actuator designed for industrial control panels, operator stations and machine automation systems. Part of the Lovato 8LM metal series, this flush red actuator with side visibility provides clear illuminated indication and dependable manual control for electrical switching applications.
Designed for demanding industrial environments, the 8LM2TQL104 features a durable aluminium and zinc alloy construction with an IP65 front protection rating. Its push ON–push OFF maintained operation provides reliable switching control, while the illuminated side visibility improves operator feedback in industrial applications.
With a compact 22 mm mounting format, long mechanical life and compatibility with Lovato 8LM series accessories, the 8LM2TQL104 provides a dependable solution for OEM machine builders and electrical control system designers requiring illuminated operator interfaces.
Illuminated push-push actuators provide operators with both switching control and immediate visual feedback. The Lovato 8LM2TQL104 combines durable mechanical operation with integrated illumination, helping improve machine status awareness and operator efficiency.
Its metal construction, IP65 protection and compatibility with Lovato modular switching components make it suitable for automation systems where reliable operation, visibility and long service life are essential.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 33 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975109922 |
| HS Code | 85365080 |
| Product designation | Illuminated button actuators push-push - flush with side visibility |
| Product type designation | 8LM2TQL10 |
| Colour | Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - Push-Push actuators | 500000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The Lovato 8LM2TQL104 is used as an illuminated push-push actuator for industrial control panels, machinery and automation systems.
The 8LM2TQL104 is designed for Ø22 mm panel mounting applications.
The actuator features a red illuminated flush button design.
The Lovato 8LM2TQL104 provides an IP65 protection rating for front panel applications.
The actuator provides a push ON–push OFF maintained switching action.
Lovato 8LM series illuminated control components are widely used in industrial automation applications to provide reliable operator control, clear status indication and durable panel integration.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TQL104 Illuminated Push-Push Button Actuator Ø22mm Metal Flush Red", "sku": "8LM2TQL104", "mpn": "8LM2TQL104", "brand": { "@type": "Brand", "name": "Lovato" }, "category": "Industrial Control Components", "description": "Lovato 8LM2TQL104 illuminated push-push button actuator, Ø22mm metal series flush red actuator with side visibility for industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Product type", "value": "Illuminated push-push button actuator" }, { "@type": "PropertyValue", "name": "Colour", "value": "Red" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "Ø22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "500000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TQL104 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TQL104 is used as an illuminated push-push actuator for industrial control panels, machinery and automation systems." } }, { "@type": "Question", "name": "What mounting size does the Lovato 8LM2TQL104 require?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TQL104 is designed for Ø22 mm panel mounting applications." } }, { "@type": "Question", "name": "What colour is the Lovato 8LM2TQL104 actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a red illuminated flush button design." } }, { "@type": "Question", "name": "What protection rating does this actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TQL104 provides an IP65 protection rating for front panel applications." } }, { "@type": "Question", "name": "What switching action does the Lovato 8LM2TQL104 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides a push ON–push OFF maintained switching action." } } ] }
