Lovato Electric 8LM2TQL106 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £35.58.£24.91Current price is: £24.91.

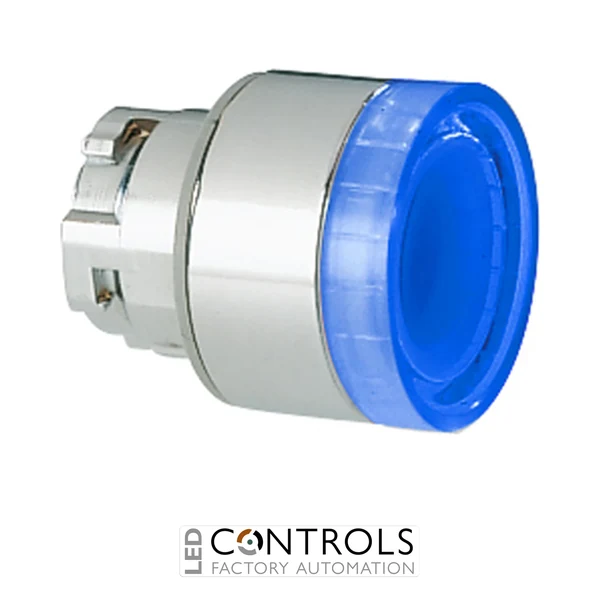

The LOVATO Electric 8LM2TQL106 is a durable and reliable illuminated push-push button actuator designed for industrial control panels, automation equipment and electrical switching applications. Part of the trusted LOVATO 8LM series metal pushbutton range, this actuator provides dependable maintained switching operation with clear blue illuminated indication for improved operator visibility.
Designed for use with 22 mm control panel systems, the 8LM2TQL106 features a flush metal construction with side visibility illumination and a Push ON / Push OFF maintained switching function. Its robust construction makes it suitable for demanding industrial environments requiring reliable operator control and long service life.
The actuator features an aluminium and zinc alloy body with an IP65 protection rating and a mechanical life of up to 500,000 operating cycles. The LOVATO 8LM2TQL106 is ideal for machinery, OEM equipment and industrial automation systems where dependable control and visual status indication are required.
Illuminated pushbuttons provide operators with immediate visual feedback, allowing quick identification of machine states and improving interaction with industrial control systems.
The LOVATO 8LM series combines rugged mechanical construction with modern industrial design, making the 8LM2TQL106 suitable for OEM machinery, electrical panels and automation systems where reliable switching performance is essential.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 33 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X038 |
| Volume [cm³] | 34.2 |
| Bar code [EAN13] | 8013975109946 |
| HS Code | 85365080 |
| Product designation | Illuminated button actuators push-push - flush with side visibility |
| Product type designation | 8LM2TQL10 |
| Colour | Blue |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life - Push-Push actuators | 500000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The LOVATO 8LM2TQL106 is an illuminated push-push button actuator used for operator control functions in industrial automation panels and machinery.
The actuator provides a maintained Push ON / Push OFF switching operation.
The LOVATO 8LM2TQL106 features a blue illuminated actuator for clear visual indication.
The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.
The actuator is designed for up to 500,000 mechanical operating cycles, providing reliable long-term performance.
LOVATO Electric 8LM series pushbutton components are widely used by machine builders, panel manufacturers and automation professionals requiring dependable operator control solutions with robust industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "LOVATO Electric 8LM2TQL106 Illuminated Push-Push Button Actuator", "sku": "8LM2TQL106", "mpn": "8LM2TQL106", "brand": { "@type": "Brand", "name": "LOVATO Electric" }, "category": "Industrial Pushbutton Switches", "description": "LOVATO Electric 8LM2TQL106 illuminated push-push button actuator, 22mm metal flush design with blue illumination for industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operation", "value": "Push ON-Push OFF" }, { "@type": "PropertyValue", "name": "Colour", "value": "Blue" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "500000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the LOVATO 8LM2TQL106 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TQL106 is an illuminated push-push button actuator used for operator control functions in industrial automation panels and machinery." } }, { "@type": "Question", "name": "What type of operation does this actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides a maintained Push ON / Push OFF switching operation." } }, { "@type": "Question", "name": "What colour is the illumination?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TQL106 features a blue illuminated actuator for clear visual indication." } }, { "@type": "Question", "name": "What protection rating does this product have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly." } }, { "@type": "Question", "name": "What is the mechanical lifespan of the actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for up to 500,000 mechanical operating cycles, providing reliable long-term performance." } } ] }
