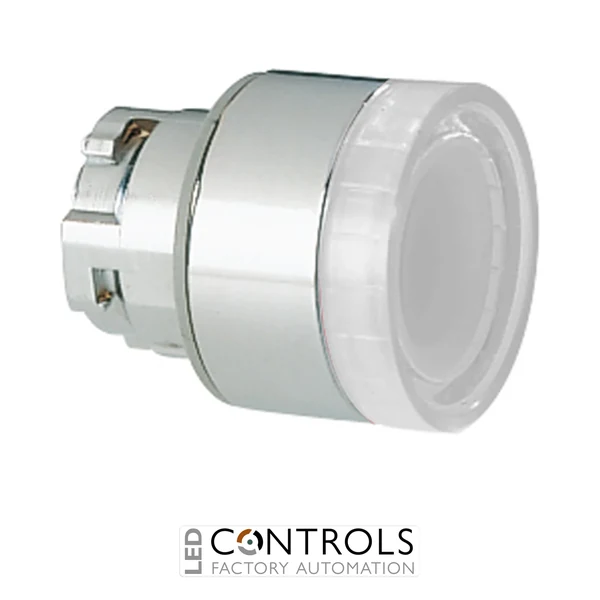

8LM2TQL107 – TRANSP. ILLUM. PUSH-PUSH ACTUATOR MAINT.

Q: What type of operation does this actuator provide?

The actuator provides a maintained Push ON / Push OFF switching operation.

Q: What colour is the actuator?

The LOVATO 8LM2TQL107 features a transparent illuminated actuator for clear visual indication.

Q: What protection rating does this product have?

The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.

Q: What is the mechanical lifespan of the actuator?

The actuator is designed for up to 500,000 mechanical operating cycles, providing reliable long-term performance.

Lovato Electric 8LM2TQL107 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TQL107MPN: 8LM2TQL107

Why Choose the LOVATO Electric 8LM2TQL107 Illuminated Push-Push Button Actuator?

The LOVATO Electric 8LM2TQL107 is a reliable illuminated push-push button actuator designed for industrial control panels, automation equipment and electrical switching applications. Part of the proven LOVATO 8LM series metal pushbutton range, this actuator provides durable maintained switching operation with transparent illumination for enhanced operator visibility.

Designed for 22 mm control panel systems, the 8LM2TQL107 features a flush metal construction with side visibility illumination and a Push ON / Push OFF maintained switching mechanism. Its robust design provides dependable performance for industrial machinery, OEM equipment and automation systems.

The actuator is manufactured using a durable aluminium and zinc alloy construction and provides an IP65 protection rating when correctly installed. With a mechanical life of up to 500,000 operating cycles, the LOVATO 8LM2TQL107 delivers long-lasting reliability for demanding industrial applications.

Key Advantages

Durable 22 mm metal illuminated pushbutton actuator for industrial control applications.
Push ON / Push OFF maintained operation for reliable machine control.
Transparent illuminated actuator for clear status indication.
Robust aluminium and zinc alloy construction.
IP65 protection rating for industrial environments.
Long mechanical lifespan with up to 500,000 operating cycles.

Key Features

LOVATO Electric 8LM series illuminated pushbutton actuator.
22 mm mounting diameter control device.
Flush metal design with side visibility illumination.
Transparent illuminated actuator head.
Push ON / Push OFF maintained switching action.
Aluminium and zinc alloy construction.
IEC IP65 protection rating.
Compatible with LOVATO LM2T series accessories.

Reliable Operator Control for Industrial Automation

Illuminated pushbuttons provide operators with clear visual feedback during machine operation, allowing fast identification of equipment status and improving interaction with industrial control systems.

The LOVATO 8LM series combines rugged mechanical construction with modern industrial design, making the 8LM2TQL107 suitable for OEM machinery, electrical panels and automation systems where dependable switching performance is required.

Typical Applications

Industrial automation control panels.
Machine builders and OEM equipment.
Production machinery control stations.
Motor control panels and electrical enclosures.
Manufacturing and processing equipment.
Industrial operator interfaces.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Diameter	22 mm
Device Type	Pushbutton
Product Series	Lovato 8LM Metal
IP Rating	IP65
Colour	Clear
Weight [g]	33
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X038
Volume [cm³]	34.2
Bar code [EAN13]	8013975109953
HS Code	85365080
Product designation	Illuminated button actuators push-push - flush with side visibility
Product type designation	8LM2TQL10
Colour	Transparent
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Operating force	0.8kg/1.7Ib
Mechanical life - Push-Push actuators	500000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000221 - Front element for push button

Frequently Asked Questions

What is the LOVATO 8LM2TQL107 used for?

The LOVATO 8LM2TQL107 is an illuminated push-push button actuator used for operator control functions in industrial automation panels and machinery.

What type of operation does this actuator provide?

The actuator provides a maintained Push ON / Push OFF switching operation.

What colour is the actuator?

The LOVATO 8LM2TQL107 features a transparent illuminated actuator for clear visual indication.

What protection rating does this product have?

The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.

What is the mechanical lifespan of the actuator?

The actuator is designed for up to 500,000 mechanical operating cycles, providing reliable long-term performance.

Trusted for Industrial Control Applications

LOVATO Electric 8LM series pushbutton components are widely used by machine builders, panel manufacturers and automation professionals requiring dependable operator control solutions with robust industrial performance.

Mounting Diameter	22 mm
Device Type	Pushbutton
Product Series	Lovato 8LM Metal
IP Rating	IP65
Weight [g]	33
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X038
Volume [cm³]	34.2
Bar code [EAN13]	8013975109953
HS Code	85365080
Product designation	Illuminated button actuators push-push - flush with side visibility
Product type designation	8LM2TQL10
Colour	Transparent
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Operating force	0.8kg/1.7Ib
Mechanical life - Push-Push actuators	500000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000221 - Front element for push button
Colour	Clear
