Lovato Electric 8LM2TR2004 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £15.65.£10.96Current price is: £10.96.

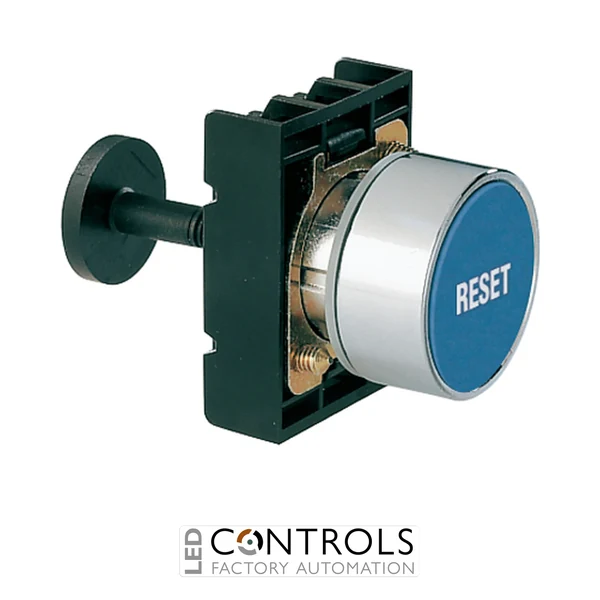

The LOVATO Electric 8LM2TR2004 is a robust and dependable mechanical reset pushbutton designed for industrial control panels, automation equipment and machine operator interfaces. Part of the reliable LOVATO 8LM series metal pushbutton range, this complete spring-return reset button provides reliable manual control for industrial switching and reset applications.
Designed for 22 mm control panel systems, the 8LM2TR2004 features an extended metal actuator design with adjustable length from 0 to 140 mm. Its spring-return mechanism provides momentary reset operation, making it suitable for machinery control stations, electrical panels and industrial automation systems.
The actuator features a durable aluminium and zinc alloy construction, a red actuator head and an IP65 protection rating for industrial environments. With a mechanical life of up to 1,000,000 operating cycles, the LOVATO 8LM2TR2004 delivers long-lasting performance in demanding applications.
Mechanical reset buttons provide operators with a simple and dependable method of restoring machine functions, acknowledging faults and controlling industrial equipment safely.
The LOVATO 8LM series combines rugged metal construction with reliable switching technology, making the 8LM2TR2004 suitable for machinery, electrical panels and automation systems requiring durable manual control components.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 65 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 238X102X042 |
| Volume [cm³] | 101.959 |
| Bar code [EAN13] | 8013975045954 |
| HS Code | 85365080 |
| Product designation | Mechanical reset button, complete unit, spring return - Extended |
| Product type designation | 8LM2TR2004 |
| Colour | Red |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 1000000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | 1, 2, 3R, 4, 4X, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000221 - Front element for push button |
The LOVATO 8LM2TR2004 is a mechanical reset pushbutton used for manual reset and control functions in industrial automation panels and machinery.
The actuator provides a spring-return momentary operation, returning to its original position after release.
The LOVATO 8LM2TR2004 features a red actuator head designed for industrial control applications.
The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.
The actuator is designed for up to 1,000,000 mechanical operating cycles, providing reliable long-term performance.
LOVATO Electric 8LM series pushbutton components are widely used by machine builders, panel manufacturers and automation professionals requiring dependable operator control solutions with robust industrial performance.{ "@context": "https://schema.org/", "@type": "Product", "name": "LOVATO Electric 8LM2TR2004 Mechanical Reset Button", "sku": "8LM2TR2004", "mpn": "8LM2TR2004", "brand": { "@type": "Brand", "name": "LOVATO Electric" }, "category": "Industrial Pushbutton Switches", "description": "LOVATO Electric 8LM2TR2004 mechanical reset button complete unit, 22mm extended metal spring-return design with red actuator for industrial control panels.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Operation", "value": "Spring return momentary" }, { "@type": "PropertyValue", "name": "Colour", "value": "Red" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "1000000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the LOVATO 8LM2TR2004 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TR2004 is a mechanical reset pushbutton used for manual reset and control functions in industrial automation panels and machinery." } }, { "@type": "Question", "name": "What type of operation does this button provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides a spring-return momentary operation, returning to its original position after release." } }, { "@type": "Question", "name": "What colour is the reset button?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TR2004 features a red actuator head designed for industrial control applications." } }, { "@type": "Question", "name": "What protection rating does this product have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly." } }, { "@type": "Question", "name": "What is the mechanical lifespan of the actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for up to 1,000,000 mechanical operating cycles, providing reliable long-term performance." } } ] }
