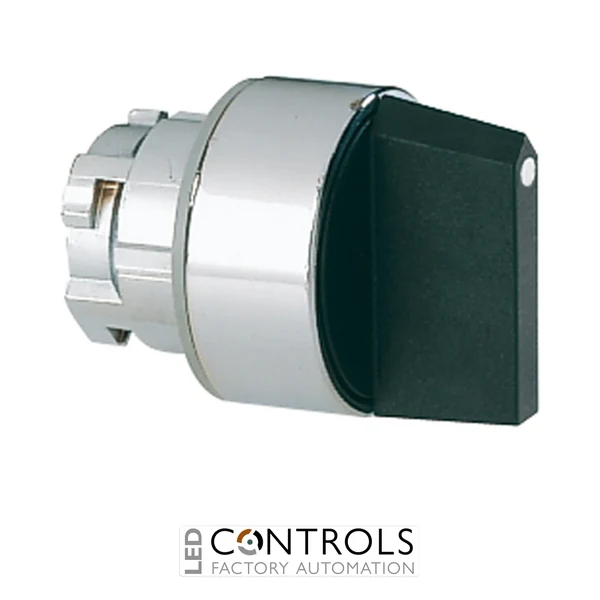

8LM2TS132 – KNOB SELECTOR ACTUATOR 2 STAY POS+SPRING

Q: How many positions does this selector switch actuator have?

The actuator provides three selector positions marked 1 > 0 - 2.

Q: What mounting size is required?

The LOVATO 8LM2TS132 is designed for 22 mm panel mounting systems.

Q: What protection rating does this product have?

The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.

Q: What is the mechanical lifespan of the actuator?

The actuator is designed for up to 300,000 mechanical operating cycles, providing reliable long-term performance.

Lovato Electric 8LM2TS132 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TS132MPN: 8LM2TS132

Why Choose the LOVATO Electric 8LM2TS132 Selector Switch Actuator Knob?

The LOVATO Electric 8LM2TS132 is a durable and reliable selector switch actuator knob designed for industrial control panels, automation equipment and machine operator interfaces. Part of the trusted LOVATO 8LM series metal selector switch range, this actuator provides dependable manual switching control with a three-position selector mechanism for industrial applications.

Designed for 22 mm control panel systems, the 8LM2TS132 features a metal construction with a short lever selector actuator and 3-position operation (1 > 0 - 2). Its compact design makes it suitable for machinery control stations, electrical panels and industrial automation systems requiring reliable operator control.

The actuator features a durable aluminium and zinc alloy construction, an IP65 protection rating and a mechanical life of up to 300,000 operating cycles. The LOVATO 8LM2TS132 is ideal for OEM machinery, automation panels and industrial control systems requiring durable selector switch components.

Key Advantages

Durable 22 mm metal selector switch actuator for industrial control applications.
Three-position selector operation for flexible machine control.
1 > 0 - 2 selector marking for clear operator identification.
Robust aluminium and zinc alloy construction.
IP65 protection rating for industrial environments.
Long mechanical lifespan with up to 300,000 operating cycles.

Key Features

LOVATO Electric 8LM series selector switch actuator.
22 mm mounting diameter control device.
Short lever selector actuator design.
Three selector positions: 1 > 0 - 2.
Spring-return selector switch operation.
Aluminium and zinc alloy construction.
IEC IP65 protection rating.
Compatible with LOVATO LM2TAU120 mounting adapter.

Reliable Selector Control for Industrial Automation

Selector switches provide operators with a simple and dependable method of selecting machine operating modes, enabling manual control over industrial equipment and automation systems.

The LOVATO 8LM series combines rugged metal construction with reliable switching technology, making the 8LM2TS132 suitable for machinery, electrical panels and automation systems requiring durable selector control components.

Typical Applications

Industrial automation control panels.
Machine builders and OEM equipment.
Motor control panels and electrical enclosures.
Manufacturing and processing equipment.
Machine mode selection systems.
Industrial operator interfaces.

Technical Specifications

Tick the specs you need, then view products that match.

Operation	Spring return (momentary)
Product Series	Lovato 8LM Metal
Mounting Diameter	22 mm
Device Type	Selector Switch
IP Rating	IP65
Weight [g]	49
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045190
HS Code	85365080
Product designation	Selector switch actuators short lever - 3 position
Product type designation	8LM2TS1
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch

Frequently Asked Questions

What is the LOVATO 8LM2TS132 used for?

The LOVATO 8LM2TS132 is a selector switch actuator knob used for manual machine control and operator selection functions in industrial control panels.

How many positions does this selector switch actuator have?

The actuator provides three selector positions marked 1 > 0 - 2.

What mounting size is required?

The LOVATO 8LM2TS132 is designed for 22 mm panel mounting systems.

What protection rating does this product have?

The actuator provides an IP65 protection rating when installed correctly in a compatible control assembly.

What is the mechanical lifespan of the actuator?

The actuator is designed for up to 300,000 mechanical operating cycles, providing reliable long-term performance.

Trusted for Industrial Control Applications

LOVATO Electric 8LM series selector switches are widely used by machine builders, panel manufacturers and automation professionals requiring dependable operator control solutions with robust industrial performance.

Operation	Spring return (momentary)
Product Series	Lovato 8LM Metal
Mounting Diameter	22 mm
Device Type	Selector Switch
IP Rating	IP65
Weight [g]	49
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045190
HS Code	85365080
Product designation	Selector switch actuators short lever - 3 position
Product type designation	8LM2TS1
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch
