Lovato Electric 8LM2TS230 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £17.64.£12.35Current price is: £12.35.

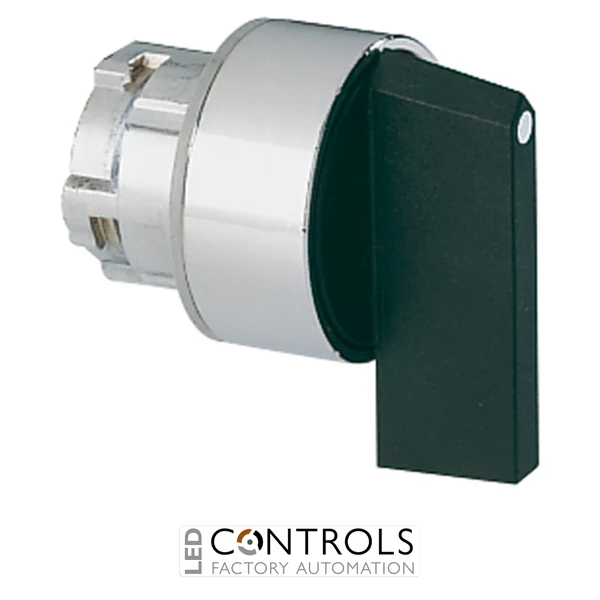

The Lovato Electric 8LM2TS230 is a robust and reliable 22 mm selector switch actuator designed for industrial control panels, automation equipment and machine operator interfaces. Part of the Lovato 8LM metal selector switch series, this actuator provides dependable manual control for applications requiring a three-position selector function.
Manufactured for demanding industrial environments, the 8LM2TS230 features a durable metal construction and a lever-style operator design that provides clear and efficient control of electrical circuits. Its compact 22 mm mounting format makes it suitable for integration into standard control panels and machinery systems.
The actuator provides a three-position 1-0-2 selector operation, allowing operators to select between two operating states with a central off position. With its IP65 front protection rating and compatibility with Lovato modular contact elements, it is ideal for industrial automation and electrical control applications.
Selector switches are essential components in industrial automation systems, providing operators with a simple and dependable method of selecting machine functions, operating modes and control states. The Lovato Electric 8LM2TS230 delivers reliable manual switching for professional electrical installations.
Designed for machine builders, panel manufacturers and automation engineers, this selector actuator combines rugged construction, straightforward installation and compatibility with Lovato control components to support reliable industrial operation.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 50 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975041567 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators long lever - 3 position |
| Product type designation | 8LM2TS2 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato Electric 8LM2TS230 is a selector switch actuator used for manual control of electrical circuits, machine functions and industrial automation systems.
The 8LM2TS230 features a three-position selector function with a 1-0-2 switching arrangement.
The actuator is designed for standard 22 mm panel mounting applications.
The Lovato 8LM2TS230 provides an IP65 protection rating on the front of the panel when correctly installed.
The actuator is commonly installed in industrial control panels, automation systems and OEM machinery requiring reliable operator control.
Lovato Electric 8LM selector switch actuators are trusted by automation professionals and panel builders for dependable manual control, robust construction and reliable integration into industrial systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TS230 Selector Switch Actuator", "sku": "8LM2TS230", "mpn": "8LM2TS230", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switch Actuators", "description": "Lovato Electric 8LM2TS230 22mm metal selector switch actuator with lever operation, three-position 1-0-2 switching and IP65 protection for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "3 position 1-0-2" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Weight", "value": "50 g" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato Electric 8LM2TS230 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato Electric 8LM2TS230 is a selector switch actuator used for manual control of electrical circuits, machine functions and industrial automation systems." } }, { "@type": "Question", "name": "How many positions does the 8LM2TS230 selector actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TS230 features a three-position selector function with a 1-0-2 switching arrangement." } }, { "@type": "Question", "name": "What mounting size is required for the Lovato 8LM2TS230?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for standard 22 mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does the 8LM2TS230 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS230 provides an IP65 protection rating on the front of the panel when correctly installed." } }, { "@type": "Question", "name": "Where is the 8LM2TS230 commonly installed?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is commonly installed in industrial control panels, automation systems and OEM machinery requiring reliable operator control." } } ] }
