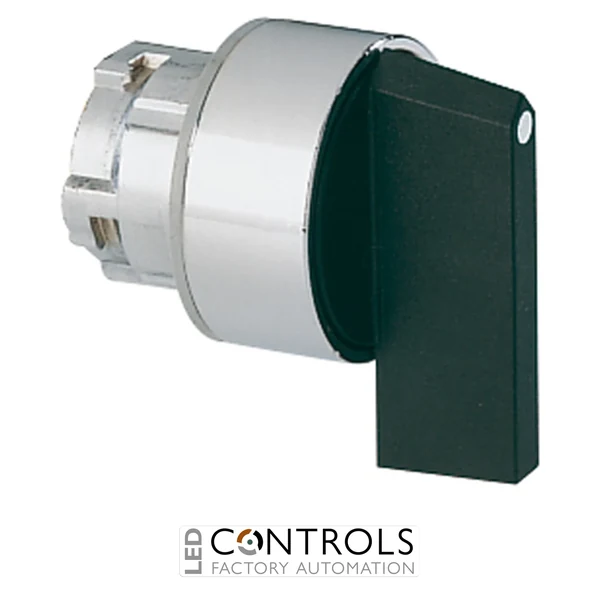

8LM2TS232 – LEVER SELECTOR ACTUATOR 2 STAY POS+SPRIN

Q: How many positions does the 8LM2TS232 selector actuator have?

The 8LM2TS232 features a two-position selector function with spring return operation.

Q: Does the 8LM2TS232 have spring return operation?

Yes, the actuator includes a spring return mechanism designed to return the selector after activation.

Q: What mounting size is required for the Lovato 8LM2TS232?

The actuator is designed for standard 22 mm panel mounting applications.

Q: What protection rating does the 8LM2TS232 provide?

The Lovato 8LM2TS232 provides an IP65 protection rating for industrial control panel applications.

Lovato Electric 8LM2TS232 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TS232MPN: 8LM2TS232

Why Choose the Lovato Electric 8LM2TS232 Selector Switch Actuator?

The Lovato Electric 8LM2TS232 is a professional 22 mm selector switch actuator designed for industrial control panels, automation equipment and machine operator interfaces. Part of the Lovato 8LM metal selector switch series, this actuator provides reliable manual control with a two-position spring return function for demanding industrial applications.

Manufactured using a durable aluminium and zinc alloy construction, the 8LM2TS232 is engineered for long service life in industrial environments where dependable operation and secure panel installation are required. Its lever-style actuator design provides clear operator control while maintaining compatibility with Lovato modular selector switch components.

The actuator features a two-position maintained selector function with spring return operation, a standard 22 mm panel mounting format and an IP65 protection rating, making it suitable for machine control systems, automation panels and industrial electrical installations.

Key Advantages

Professional Lovato Electric 8LM metal selector switch actuator.
22 mm panel mounting design suitable for industrial control panels.
Two-position selector operation with spring return.
Durable aluminium and zinc alloy construction.
IP65 protection rating for reliable industrial environments.
Long mechanical life for repeated operator switching applications.

Key Features

Lovato Electric 8LM series metal selector actuator.
Long lever selector switch actuator.
2 maintained positions with spring return function.
22 mm mounting diameter.
Aluminium and zinc alloy front construction.
IP65 IEC protection rating.
Mechanical life up to 300,000 cycles.
Compatible with Lovato LM2TAU120 mounting adapter.

Reliable Operator Control for Industrial Systems

Selector switches are essential components in industrial automation systems, allowing operators to control machine functions, operating modes and electrical circuits. The Lovato Electric 8LM2TS232 provides reliable manual switching performance with a spring return mechanism for professional control applications.

Designed for machine builders, panel manufacturers and automation engineers, this selector actuator combines robust construction, simple installation and compatibility with Lovato electrical control components to support dependable industrial operation.

Typical Applications

Industrial control panels.
Machine automation systems.
Motor control stations.
Production and processing machinery.
OEM electrical equipment.
Industrial operator interfaces.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Selector Switch
IP Rating	IP65
Weight [g]	50
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045251
HS Code	85365080
Product designation	Selector switch actuators long lever - 3 position
Product type designation	8LM2TS2
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch

Frequently Asked Questions

What is the Lovato Electric 8LM2TS232 used for?

The Lovato Electric 8LM2TS232 is a selector switch actuator used for manual control of electrical circuits, machine functions and industrial automation systems.

How many positions does the 8LM2TS232 selector actuator have?

The 8LM2TS232 features a two-position selector function with spring return operation.

Does the 8LM2TS232 have spring return operation?

Yes, the actuator includes a spring return mechanism designed to return the selector after activation.

What mounting size is required for the Lovato 8LM2TS232?

The actuator is designed for standard 22 mm panel mounting applications.

What protection rating does the 8LM2TS232 provide?

The Lovato 8LM2TS232 provides an IP65 protection rating for industrial control panel applications.

Trusted for Industrial Control Applications

Lovato Electric 8LM selector switch actuators are trusted by automation professionals and panel builders for dependable operator control, robust construction and reliable integration into industrial systems.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Selector Switch
IP Rating	IP65
Weight [g]	50
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045251
HS Code	85365080
Product designation	Selector switch actuators long lever - 3 position
Product type designation	8LM2TS2
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch
