Lovato Electric 8LM2TS320 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £33.03.£23.12Current price is: £23.12.

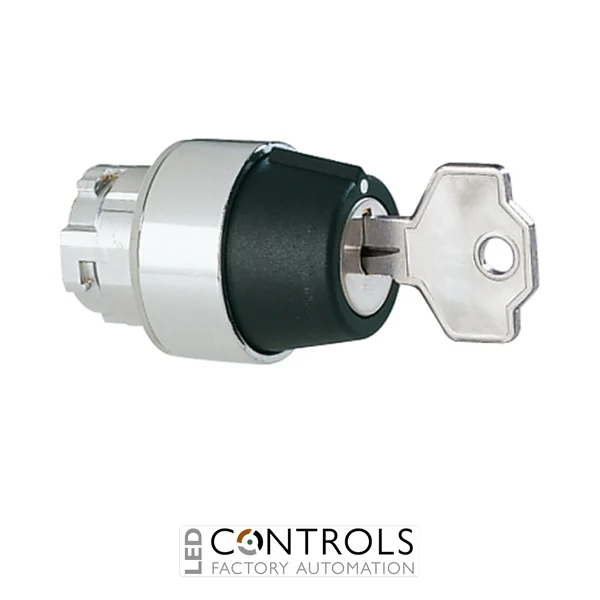

The Lovato Electric 8LM2TS320 is a robust and reliable 22 mm key-operated selector switch actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the Lovato 8LM metal selector switch series, this actuator provides secure operator control with a two-position maintained key selector function.
Manufactured using a durable aluminium and zinc alloy construction, the 8LM2TS320 is engineered for demanding industrial environments where controlled access, reliability and long operating life are required. The key-operated design helps prevent unauthorised switching while providing dependable manual control for electrical circuits.
The actuator features a two-position 0-1 selector operation with key extraction in the 0 position, a standard 22 mm panel mounting format and an IP65 protection rating, making it suitable for industrial machinery, automation panels and electrical control applications.
Key selector switches provide an additional level of control in industrial applications by allowing authorised operators to enable or change machine functions using a removable key mechanism. The Lovato Electric 8LM2TS320 delivers dependable switching performance where controlled access is required.
Designed for machine builders, electrical panel manufacturers and automation engineers, this selector actuator combines rugged construction, secure operation and compatibility with Lovato contact elements for reliable industrial installations.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 79 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975041581 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 2 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato Electric 8LM2TS320 is a key-operated selector switch actuator used for controlled manual operation of electrical circuits and industrial machinery functions.
The 8LM2TS320 features a two-position selector function with a 0-1 switching arrangement.
Yes, the key can be extracted in the 0 position, helping prevent unauthorised operation.
The actuator is designed for standard 22 mm panel mounting applications.
The Lovato 8LM2TS320 provides an IP65 protection rating for industrial control panel applications.
Lovato Electric 8LM key selector actuators are trusted by automation professionals and panel builders for secure operator control, robust construction and reliable integration into industrial systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TS320 Key Selector Switch Actuator", "sku": "8LM2TS320", "mpn": "8LM2TS320", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switch Actuators", "description": "Lovato Electric 8LM2TS320 22mm metal key selector switch actuator with two-position 0-1 operation, removable key in 0 position and IP65 protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "2 position 0-1" }, { "@type": "PropertyValue", "name": "Operation", "value": "Key operated" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "300000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato Electric 8LM2TS320 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato Electric 8LM2TS320 is a key-operated selector switch actuator used for controlled manual operation of electrical circuits and industrial machinery functions." } }, { "@type": "Question", "name": "How many positions does the 8LM2TS320 selector actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TS320 features a two-position selector function with a 0-1 switching arrangement." } }, { "@type": "Question", "name": "Can the key be removed from the 8LM2TS320?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the key can be extracted in the 0 position, helping prevent unauthorised operation." } }, { "@type": "Question", "name": "What mounting size is required for the Lovato 8LM2TS320?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for standard 22 mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does the 8LM2TS320 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS320 provides an IP65 protection rating for industrial control panel applications." } } ] }
