Lovato Electric 8LM2TS320G510 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

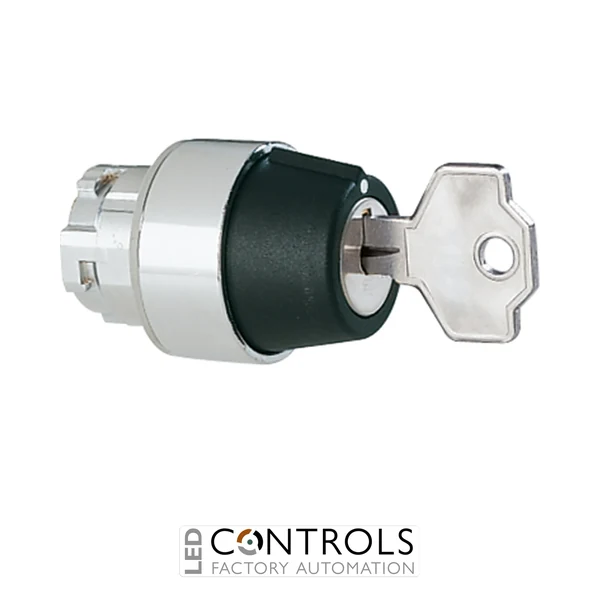

The Lovato Electric 8LM2TS320G510 is a professional 22 mm key-operated selector switch actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the Lovato 8LM metal selector switch series, this actuator provides secure manual control with a two-position selector function and coded key operation for controlled access applications.
Manufactured using a durable aluminium and zinc alloy construction, the 8LM2TS320G510 is engineered for demanding industrial environments where reliability, operator security and long service life are required. The coded key design helps prevent unauthorised switching while providing dependable control of electrical circuits and machinery functions.
The actuator features a two-position 0-1 selector operation with key extraction in the 0 position, a standard 22 mm panel mounting format and an IP65 protection rating, making it suitable for industrial machinery, automation panels and electrical control installations.
Key selector switches provide an additional level of control by ensuring that only authorised operators can change machine settings or electrical operating modes. The Lovato Electric 8LM2TS320G510 delivers reliable switching performance where controlled access and dependable operation are essential.
Designed for machine builders, electrical panel manufacturers and automation engineers, this selector actuator combines rugged construction, secure key operation and compatibility with Lovato contact elements for reliable industrial installations.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 79 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975042182 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 2 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato Electric 8LM2TS320G510 is a coded key selector switch actuator used for secure manual control of electrical circuits and industrial machinery functions.
The 8LM2TS320G510 features a two-position selector function with a 0-1 switching arrangement.
Yes, the key can be extracted in the 0 position, helping prevent unauthorised operation.
The actuator is designed for standard 22 mm panel mounting applications.
The Lovato 8LM2TS320G510 provides an IP65 protection rating for industrial control panel applications.
Lovato Electric 8LM key selector actuators are trusted by automation professionals and panel builders for secure operator control, robust construction and reliable integration into industrial systems.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato Electric 8LM2TS320G510 Key Selector Switch Actuator", "sku": "8LM2TS320G510", "mpn": "8LM2TS320G510", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switch Actuators", "description": "Lovato Electric 8LM2TS320G510 22mm metal key selector switch actuator with two-position 0-1 operation, coded 510 key and IP65 protection.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "2 position 0-1" }, { "@type": "PropertyValue", "name": "Operation", "value": "Key operated" }, { "@type": "PropertyValue", "name": "Key code", "value": "510" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato Electric 8LM2TS320G510 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato Electric 8LM2TS320G510 is a coded key selector switch actuator used for secure manual control of electrical circuits and industrial machinery functions." } }, { "@type": "Question", "name": "How many positions does the 8LM2TS320G510 selector actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TS320G510 features a two-position selector function with a 0-1 switching arrangement." } }, { "@type": "Question", "name": "Can the key be removed from the 8LM2TS320G510?", "acceptedAnswer": { "@type": "Answer", "text": "Yes, the key can be extracted in the 0 position, helping prevent unauthorised operation." } }, { "@type": "Question", "name": "What mounting size is required for the Lovato 8LM2TS320G510?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for standard 22 mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does the 8LM2TS320G510 provide?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS320G510 provides an IP65 protection rating for industrial control panel applications." } } ] }
