Lovato Electric 8LM2TS330G505 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

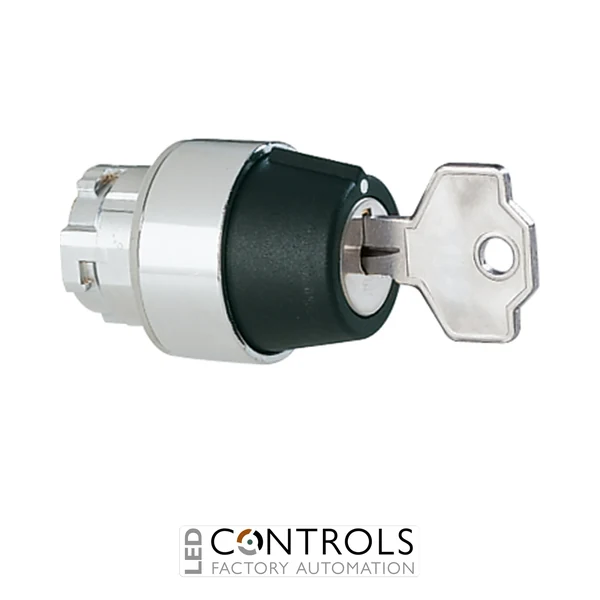

The Lovato Electric 8LM2TS330G505 is a robust 22 mm metal key selector switch actuator designed for secure operator control in industrial automation systems, electrical control panels and machinery applications. Part of the Lovato 8LM metal selector switch series, this actuator provides reliable three-position switching with key operation for controlled access and machine operating mode selection.
Manufactured with a durable aluminium and zinc alloy construction, the 8LM2TS330G505 is engineered for demanding industrial environments where reliability and long service life are essential. The actuator features an IP65 protection rating and is designed for standard 22 mm panel mounting, making it suitable for industrial control stations and electrical enclosures.
The selector actuator provides a maintained 1-0-2 three-position selector function with key extraction available in the centre 0 position. The G505 version uses a different key code configuration, helping improve access control and prevent unauthorised operation of industrial machinery.
Key selector switches are essential components in industrial automation where operators require secure and reliable control over machine functions and operating modes. The Lovato Electric 8LM2TS330G505 provides dependable switching performance for selecting between different machine states while maintaining controlled key access.
Designed for OEM machine builders, automation engineers and electrical panel manufacturers, this actuator combines rugged metal construction with straightforward installation to deliver reliable performance in demanding industrial environments.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975058299 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS330G505 is a key-operated selector switch actuator used for industrial control panels, machinery and automation applications.
The actuator provides three maintained selector positions marked 1-0-2.
The key can be removed from the centre 0 position.
The 8LM2TS330G505 is designed for standard 22 mm panel mounting.
The actuator provides an IP65 protection rating on the front element when correctly installed.
