Lovato Electric 8LM2TS331G501 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

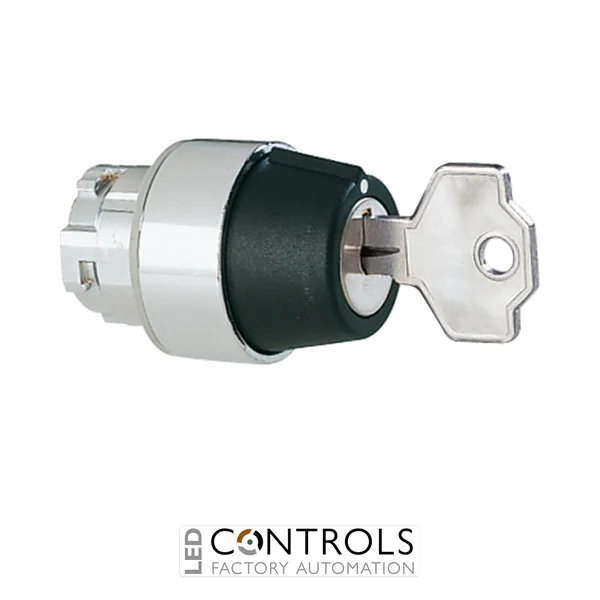

The Lovato 8LM2TS331G501 is a high-quality key operated selector switch actuator designed for reliable control and switching applications in industrial automation, electrical panels and machine control systems. Part of the Lovato Electric 8LM metal selector switch series, this actuator provides a durable and secure operator interface for demanding industrial environments.
Featuring a 22 mm mounting diameter and a robust metal construction, the 8LM2TS331G501 is engineered for professional control panel installations where dependable operation and operator safety are required. Its key-operated design helps prevent unauthorised switching while providing clear position selection for industrial equipment.
The selector actuator provides a three-position 1-0-2 maintained operation with key removal available in positions 1, 0 and 2. This makes it suitable for machinery control circuits, industrial panels and automation systems requiring controlled access and secure switching functions.
Key selector switches provide operators with a secure method of controlling machine functions, operating modes and system states. The Lovato 8LM2TS331G501 allows authorised personnel to select operating positions while reducing the risk of accidental or unauthorised switching.
Designed for integration into electrical control panels, this selector actuator can be combined with compatible Lovato contact blocks to create dependable operator control stations for industrial machinery and automation equipment.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086056 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS331G501 is a key operated selector switch actuator used for industrial control panels, machinery and automation applications.
The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position.
The actuator is designed for a standard 22 mm mounting diameter control panel installation.
Yes. The key can be withdrawn in positions 1, 0 and 2, providing additional operational security.
Yes. The Lovato 8LM2TS331G501 features a durable metal construction and is designed for industrial control applications.
Lovato Electric selector switches are widely used in industrial automation and control systems where secure operation, durability and reliable switching performance are essential.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS331G501 Key Selector Switch Actuator", "sku": "8LM2TS331G501", "mpn": "8LM2TS331G501", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS331G501 key operated selector switch actuator, 22mm metal series, three position 1-0-2 selector with key extraction capability.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator type", "value": "Key operated selector actuator" }, { "@type": "PropertyValue", "name": "Positions", "value": "1-0-2 three position" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Construction", "value": "Metal" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS331G501 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS331G501 is a key operated selector switch actuator used for industrial control panels, machinery and automation applications." } }, { "@type": "Question", "name": "How many positions does this selector switch actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position." } }, { "@type": "Question", "name": "What is the mounting size of the Lovato 8LM2TS331G501?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for a standard 22 mm mounting diameter control panel installation." } }, { "@type": "Question", "name": "Can the key be removed in different positions?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The key can be withdrawn in positions 1, 0 and 2, providing additional operational security." } }, { "@type": "Question", "name": "Is this actuator suitable for industrial environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The Lovato 8LM2TS331G501 features a durable metal construction and is designed for industrial control applications." } } ] }
