Lovato Electric 8LM2TS331G502 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

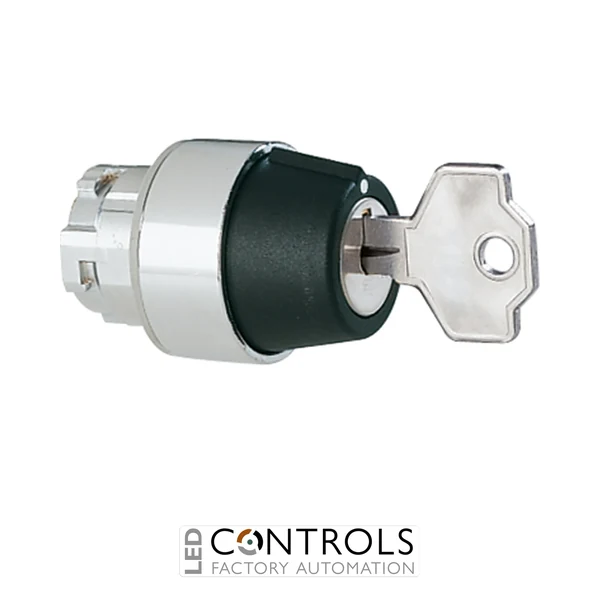

The Lovato 8LM2TS331G502 is a professional key operated selector switch actuator designed for secure and reliable control applications in industrial automation, electrical panels and machine control systems. Part of the Lovato Electric 8LM metal selector switch series, this actuator provides dependable operator control where controlled access and robust switching performance are required.
Featuring a 22 mm mounting diameter and a durable metal construction, the 8LM2TS331G502 is suitable for demanding industrial environments. Its keyed operation prevents unauthorised changes to machine settings while providing clear and reliable selection of operating modes.
The actuator provides a three-position 1-0-2 maintained selector function with key withdrawal available in positions 1, 0 and 2. The G502 key code version offers a specific key combination for controlled machine access and operator safety.
Key selector switches provide operators with a secure method of controlling machine functions, operating modes and system states. The Lovato 8LM2TS331G502 allows authorised personnel to select required operating conditions while reducing the risk of accidental adjustments.
Designed for integration into electrical control panels, this selector actuator can be combined with compatible Lovato contact blocks to create reliable operator stations for machinery, automation equipment and industrial systems.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086063 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS331G502 is a key operated selector switch actuator used for secure machine control, industrial panels and automation applications.
The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position.
The Lovato 8LM2TS331G502 is designed for a standard 22 mm panel mounting hole.
Yes. The key can be removed in positions 1, 0 and 2, providing additional operator control and security.
Yes. The metal construction and industrial design make it suitable for control panels, machinery and automation systems.
Lovato Electric selector switches are widely used in industrial automation systems where secure operation, durability and dependable control performance are essential.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS331G502 Key Selector Switch Actuator", "sku": "8LM2TS331G502", "mpn": "8LM2TS331G502", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS331G502 key operated selector switch actuator, 22mm metal 8LM series, three position 1-0-2 selector with key withdrawal in all positions.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Actuator type", "value": "Key operated selector actuator" }, { "@type": "PropertyValue", "name": "Positions", "value": "1-0-2 three position" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Key code", "value": "G502" }, { "@type": "PropertyValue", "name": "Construction", "value": "Metal" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS331G502 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS331G502 is a key operated selector switch actuator used for secure machine control, industrial panels and automation applications." } }, { "@type": "Question", "name": "How many positions does the selector actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position." } }, { "@type": "Question", "name": "What mounting size is required for this selector switch?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS331G502 is designed for a standard 22 mm panel mounting hole." } }, { "@type": "Question", "name": "Can the key be removed in different positions?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The key can be removed in positions 1, 0 and 2, providing additional operator control and security." } }, { "@type": "Question", "name": "Is the Lovato 8LM2TS331G502 suitable for industrial environments?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The metal construction and industrial design make it suitable for control panels, machinery and automation systems." } } ] }
