Lovato Electric 8LM2TS331G503 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

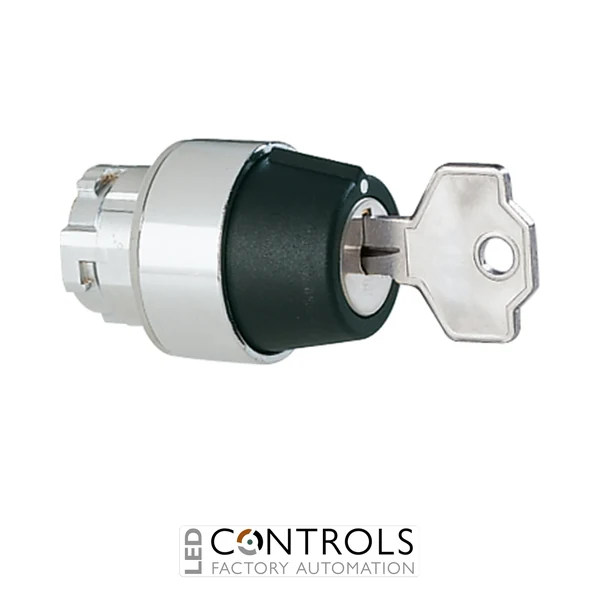

The Lovato 8LM2TS331G503 is a professional key operated selector switch actuator designed for secure and reliable switching applications in industrial automation, electrical control panels and machinery systems. As part of the Lovato Electric 8LM metal selector switch series, it provides a durable operator interface for applications requiring controlled access and dependable mode selection.
Featuring a robust metal construction and a standard 22 mm mounting diameter, the 8LM2TS331G503 is designed for installation in industrial control panels where reliable operation and long service life are required. The keyed design helps prevent unauthorised changes while allowing authorised operators to select machine operating conditions safely.
The selector actuator provides a three-position maintained 1-0-2 operation with key withdrawal available in positions 1, 0 and 2. The G503 key code version provides a specific keyed configuration for controlled industrial access and machine control applications.
Key operated selector switches provide a secure method of controlling machine functions, operating modes and industrial processes. The Lovato 8LM2TS331G503 allows operators to select required system states while reducing the risk of accidental or unauthorised switching.
Designed for use within electrical control panels, this actuator can be combined with compatible Lovato contact blocks to create reliable operator control stations for industrial machinery, OEM equipment and automation systems.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086070 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS331G503 is a key operated selector switch actuator used for secure machine control, industrial panels and automation applications.
The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position.
The Lovato 8LM2TS331G503 is designed for a standard 22 mm mounting hole in industrial control panels.
Yes. The key can be removed in positions 1, 0 and 2, providing additional control security.
Yes. Its metal construction and industrial selector design make it suitable for automation systems, machinery and electrical control panels.
