Lovato Electric 8LM2TS332G509 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

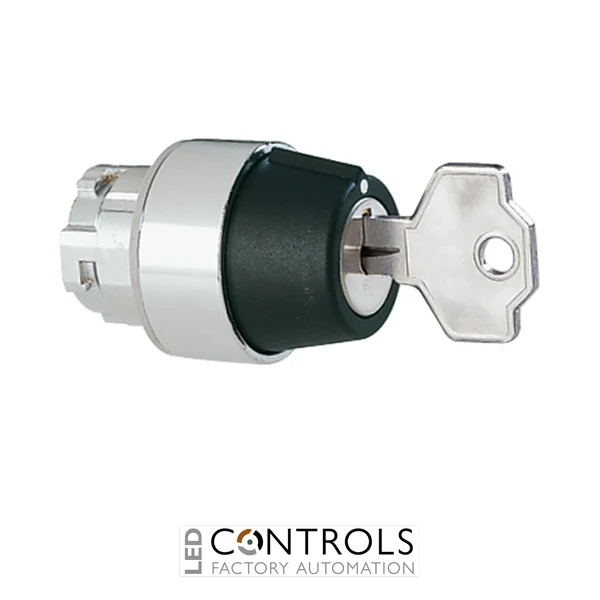

The Lovato 8LM2TS332G509 is a professional key operated selector switch actuator designed for secure and reliable operator control in industrial automation systems, electrical control panels and machinery applications. Part of the Lovato Electric 8LM metal selector switch series, this actuator provides dependable switching performance where controlled access and mechanical durability are required.
Featuring a robust metal construction and a standard 22 mm mounting diameter, the 8LM2TS332G509 is engineered for industrial environments requiring reliable operation and long service life. Its keyed design helps prevent unauthorised switching while allowing authorised operators to select machine operating modes safely.
The selector actuator provides a three-position maintained 1-0-2 operation with key withdrawal available in position 1. The G509 key code version provides a specific keyed configuration for controlled industrial access and machinery control applications.
Key operated selector switches provide operators with a secure method of controlling machine functions, operating modes and industrial processes. The Lovato 8LM2TS332G509 enables authorised personnel to select required system states while reducing the risk of accidental or unauthorised switching.
Designed for installation in electrical control panels, this actuator can be combined with compatible Lovato contact blocks to create reliable operator control stations for machinery, OEM equipment and automation systems.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086346 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS332G509 is a key operated selector switch actuator used for secure machine control, industrial panels and automation applications.
The actuator has three maintained positions: 1-0-2, allowing selection between two operating states and an off position.
The key can be removed in position 1, providing controlled access to the selected operating mode.
The Lovato 8LM2TS332G509 is designed for a standard 22 mm mounting hole in industrial control panels.
Yes. The durable metal construction and industrial design make it suitable for automation systems, machinery and electrical control panels.
