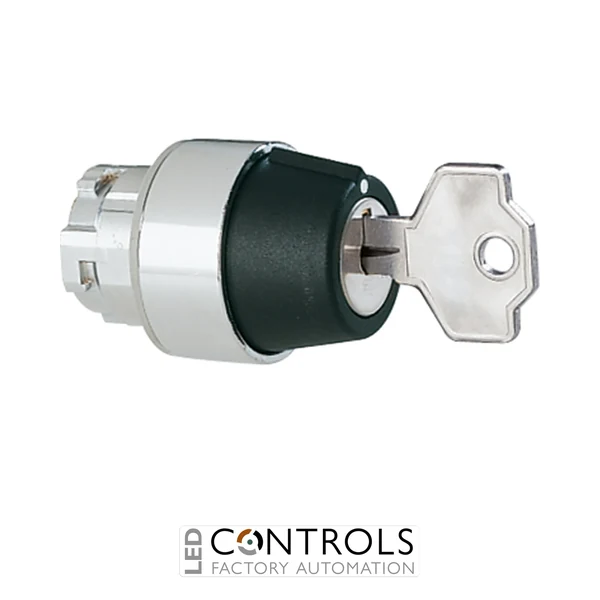

8LM2TS333 – KEY SELECTOR ACTUATOR 3 STAY REMOVAL TO

Q: How many positions does this selector switch have?

The actuator provides three maintained positions: 1-0-2, allowing multiple switching states for industrial applications.

Q: What protection rating does this actuator provide?

The Lovato 8LM2TS333 provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.

Q: What mounting size is required?

This selector actuator is designed for standard 22 mm panel mounting used in industrial control equipment.

Lovato Electric 8LM2TS333 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TS333MPN: 8LM2TS333

Why Choose the Lovato 8LM2TS333 Key Selector Switch Actuator?

The Lovato 8LM2TS333 is a durable key-operated selector switch actuator designed for industrial control panels, machinery automation systems and electrical control applications. Part of the trusted Lovato 8LM metal series selector switches, this actuator provides secure operator control with a reliable three-position maintained switching mechanism.

Designed for applications where controlled access and dependable switching are required, the 8LM2TS333 features a robust aluminium and zinc alloy construction with a standard 22 mm mounting diameter. The keyed selector design helps prevent unauthorised operation while providing long-term performance in demanding industrial environments.

The selector actuator provides a 1-0-2 three-position configuration with key extraction in position 2, making it ideal for machine control stations, automation panels and electrical equipment requiring secure manual switching control.

Key Advantages

Reliable metal key selector actuator for industrial control applications.
Three-position 1-0-2 maintained selector operation.
Key removal at position 2 improves operational security.
Strong aluminium and zinc alloy construction for industrial use.
IP65 protection rating for protection against dust and water jets.
Long mechanical life rated up to 300,000 operating cycles.

Key Features

Lovato 8LM metal selector switch series.
22 mm panel mounting diameter.
Key-operated selector switch actuator.
3 maintained positions: 1 - 0 - 2.
Key extraction in position 2.
Aluminium and zinc alloy actuator body.
Compatible with Lovato LM2 series mounting accessories.
Suitable for industrial operator control stations.

Reliable Selector Control for Industrial Automation

Key selector switches provide secure manual control in industrial automation systems by allowing operators to select operating modes while preventing accidental or unauthorised changes. The Lovato 8LM2TS333 delivers dependable switching performance for machinery, electrical panels and industrial equipment.

The rugged metal construction, IP65 protection and extended mechanical life make this selector actuator suitable for OEM machine builders, control panel manufacturers and industrial automation engineers requiring reliable operator interfaces.

Typical Applications

Industrial machinery control panels.
Automation and process control systems.
Electrical distribution cabinets.
Machine operating mode selection.
OEM equipment and operator stations.
Factory production and manufacturing systems.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Key Selector Switch
IP Rating	IP65
Weight [g]	80
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045282
HS Code	85365080
Product designation	Selector switch actuators Key - 3 position
Product type designation	8LM2TS3
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch

Frequently Asked Questions

What is the Lovato 8LM2TS333 used for?

The Lovato 8LM2TS333 is a keyed selector switch actuator used for secure manual control and operator selection in industrial control panels and automation systems.

How many positions does this selector switch have?

The actuator provides three maintained positions: 1-0-2, allowing multiple switching states for industrial applications.

Where can the key be removed?

The key can be removed in position 2, helping provide controlled access to machine operating functions.

What protection rating does this actuator provide?

The Lovato 8LM2TS333 provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water jets.

What mounting size is required?

This selector actuator is designed for standard 22 mm panel mounting used in industrial control equipment.

Trusted by Industrial Control Engineers Worldwide

Lovato 8LM series selector switches are widely used in industrial automation and electrical control applications where secure switching, robust construction and reliable operator control are essential.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Key Selector Switch
IP Rating	IP65
Weight [g]	80
Qty. per package	10
Multiple qty. of packs per order	10
Package dimensions [mm]	150X060X048
Volume [cm³]	43.2
Bar code [EAN13]	8013975045282
HS Code	85365080
Product designation	Selector switch actuators Key - 3 position
Product type designation	8LM2TS3
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch
