Lovato Electric 8LM2TS333G505 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £53.27.£37.29Current price is: £37.29.

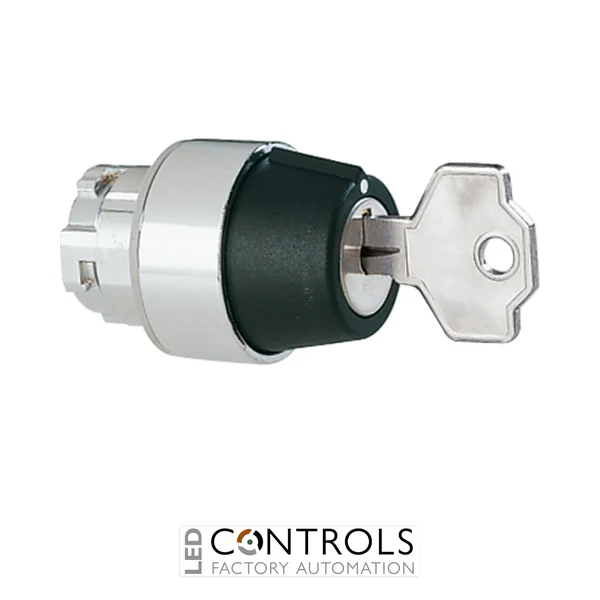

The Lovato 8LM2TS333G505 is a robust key-operated selector switch actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the reliable Lovato 8LM metal selector switch series, this actuator provides secure manual control with a maintained three-position switching mechanism for demanding industrial applications.
Designed for applications requiring controlled access and dependable switching performance, the 8LM2TS333G505 features a durable aluminium and zinc alloy construction with a standard 22 mm panel mounting diameter. The keyed selector design helps prevent unauthorised operation while providing reliable performance in industrial environments.
The selector actuator provides a 1-0-2 three-position configuration with key extraction in position 2 and a different key code configuration G505. This makes it suitable for machine control stations, OEM equipment and electrical control panels where secure operator access is required.
Key selector switches provide secure manual interaction between operators and industrial machinery. The Lovato 8LM2TS333G505 enables controlled mode selection and switching functions while helping prevent accidental or unauthorised operation.
The rugged construction, IP65 protection rating and extended mechanical service life make this selector actuator suitable for OEM machine builders, industrial control panel manufacturers and automation engineers requiring dependable operator interfaces.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086872 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS333G505 is a keyed selector switch actuator used for secure manual control and operator selection in industrial control panels and automation systems.
The actuator provides three maintained positions: 1-0-2, allowing multiple switching states for industrial applications.
The key can be removed in position 2, helping provide controlled access to machine operating functions.
The Lovato 8LM2TS333G505 provides an IP65 protection rating, making it suitable for industrial environments.
The Lovato 8LM2TS333G505 uses the G505 different key code version for controlled access applications.
Lovato 8LM series selector switches are widely used in industrial automation and electrical control applications where secure switching, robust construction and reliable operator control are essential.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS333G505 Key Selector Switch Actuator", "sku": "8LM2TS333G505", "mpn": "8LM2TS333G505", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS333G505 key selector switch actuator with three maintained positions 1-0-2, different key coding, 22mm metal construction and key removal at position 2 for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Selector positions", "value": "3 positions (1-0-2)" }, { "@type": "PropertyValue", "name": "Key extraction", "value": "Position 2" }, { "@type": "PropertyValue", "name": "Key code", "value": "G505" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS333G505 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS333G505 is a keyed selector switch actuator used for secure manual control and operator selection in industrial control panels and automation systems." } }, { "@type": "Question", "name": "How many positions does this selector switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides three maintained positions: 1-0-2, allowing multiple switching states for industrial applications." } }, { "@type": "Question", "name": "Where can the key be removed?", "acceptedAnswer": { "@type": "Answer", "text": "The key can be removed in position 2, helping provide controlled access to machine operating functions." } }, { "@type": "Question", "name": "What key code does this selector actuator use?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS333G505 uses the G505 different key code version for controlled access applications." } } ] }
