Lovato Electric 8LM2TS350G503 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £49.23.£34.46Current price is: £34.46.

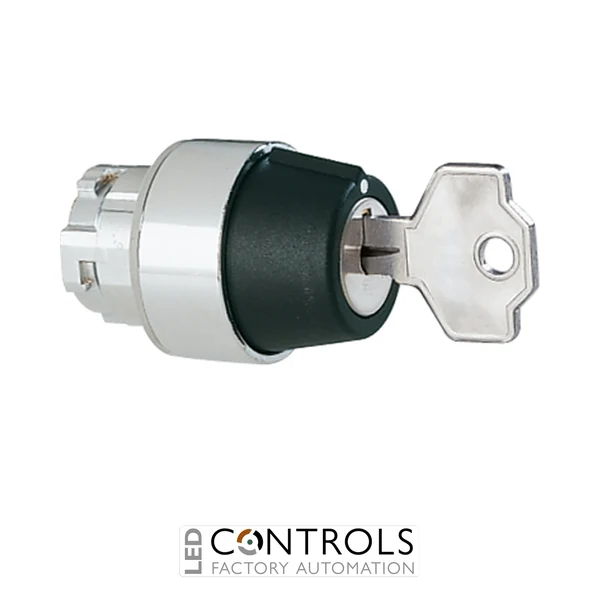

The Lovato 8LM2TS350G503 is a professional key-operated selector switch actuator designed for secure operator control in industrial automation systems, electrical control panels and machinery applications. Part of the reliable Lovato 8LM series metal selector switches, this actuator provides dependable switching performance where controlled access, durability and precise manual operation are required.
Built with a durable aluminium and zinc alloy construction, the 8LM2TS350G503 is engineered for demanding industrial environments. Its standard 22 mm panel mounting format allows easy installation into electrical cabinets, machine control stations and operator interfaces. The actuator features IP65 protection and a mechanical life of up to 300,000 cycles for long-term reliability.
The selector actuator provides a three-position keyed selector function with 1 > 0 - 2 operation, different key coding and key extraction at the centre position. This makes it suitable for machinery applications where authorised operation and secure switching control are required.
Key selector switches provide secure control of machinery functions by ensuring that only authorised users can operate specific controls. The Lovato 8LM2TS350G503 combines robust mechanical construction with dependable switching performance for industrial automation applications.
With its compact 22 mm mounting design, IP65 protection and long mechanical service life, this selector actuator is suitable for OEM machinery, electrical cabinets and industrial operator interfaces requiring reliable manual control.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975086957 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS350G503 is a keyed selector switch actuator used for secure control of industrial machinery functions and electrical systems where authorised switching is required.
The selector actuator has three positions: 1, 0 and 2, with key extraction available in the centre position.
The actuator is designed for standard 22 mm panel mounting applications.
The Lovato 8LM2TS350G503 has an IP65 protection rating, suitable for industrial control environments.
This selector actuator is commonly installed in industrial control panels, machinery operator stations and automation systems.
Lovato Electric selector switches are widely used in industrial automation systems to provide secure operator control, reliable switching performance and long service life.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS350G503 Key Selector Switch Actuator", "sku": "8LM2TS350G503", "mpn": "8LM2TS350G503", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS350G503 keyed selector switch actuator from the 8LM metal series featuring three-position 1-0-2 operation, different key code and key extraction at position 0.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "3 position" }, { "@type": "PropertyValue", "name": "Switching operation", "value": "1-0-2" }, { "@type": "PropertyValue", "name": "Material", "value": "Aluminium and zinc alloy" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "300000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS350G503 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS350G503 is a keyed selector switch actuator used for secure control of industrial machinery functions and electrical systems where authorised switching is required." } }, { "@type": "Question", "name": "How many positions does the Lovato 8LM2TS350G503 selector have?", "acceptedAnswer": { "@type": "Answer", "text": "The selector actuator has three positions: 1, 0 and 2, with key extraction available in the centre position." } }, { "@type": "Question", "name": "What is the mounting size of the Lovato 8LM2TS350G503?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for standard 22 mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does this selector actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS350G503 has an IP65 protection rating, suitable for industrial control environments." } }, { "@type": "Question", "name": "Where is this selector actuator commonly installed?", "acceptedAnswer": { "@type": "Answer", "text": "This selector actuator is commonly installed in industrial control panels, machinery operator stations and automation systems." } } ] }
