Lovato Electric 8LM2TS380G503 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £49.23.£34.46Current price is: £34.46.

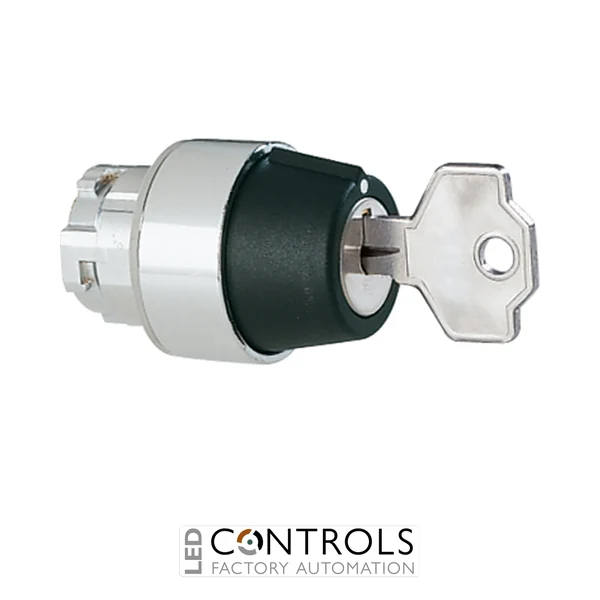

The LOVATO 8LM2TS380G503 is a professional key-operated selector switch actuator designed for industrial control panels, automation systems and machine operator interfaces. Part of the reliable LOVATO 8LM metal selector switch series, this Ø22mm actuator provides secure manual control with a three-position selector mechanism and coded key operation.
Designed for demanding industrial environments, the 8LM2TS380G503 combines durable aluminium and zinc alloy construction with dependable mechanical performance. The keyed selector design helps provide controlled access while allowing operators to safely manage machinery functions, electrical systems and automation processes.
Featuring a 1-0-2 selector configuration with key extraction in position 2, this actuator is suitable for applications requiring secure machine mode selection and reliable operator control. The standard Ø22mm mounting format enables straightforward installation into industrial control panels and operator stations.
Selector switches are essential components in industrial automation systems, providing operators with reliable control over machine functions, operating modes and electrical processes. The LOVATO 8LM2TS380G503 delivers secure keyed operation for applications requiring controlled and precise manual interaction.
Its compact Ø22mm design, rugged metal construction and coded key mechanism make it ideal for electrical panels, automation equipment and operator stations where safety, reliability and controlled access are required.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975058596 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The LOVATO 8LM2TS380G503 is a keyed selector switch actuator used for secure manual control and operating mode selection in industrial automation systems.
The actuator features a three-position 1-0-2 selector arrangement with key removal available in position 2.
The LOVATO 8LM2TS380G503 is designed for standard Ø22mm panel mounting applications.
The actuator provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress.
The product belongs to the LOVATO 8LM metal selector switch series designed for industrial control and automation applications.
LOVATO 8LM selector switch components are widely used by panel builders, machine manufacturers and automation professionals requiring reliable operator control solutions for modern industrial equipment.{ "@context": "https://schema.org/", "@type": "Product", "name": "LOVATO 8LM2TS380G503 Key Selector Switch Actuator", "sku": "8LM2TS380G503", "mpn": "8LM2TS380G503", "brand": { "@type": "Brand", "name": "LOVATO Electric" }, "category": "Selector Switches", "description": "LOVATO 8LM2TS380G503 keyed selector switch actuator, Ø22mm metal series, three position 1-0-2 selector with coded key removal in position 2 for industrial control applications.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Selector positions", "value": "3 position 1-0-2" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Key code", "value": "G503" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the LOVATO 8LM2TS380G503 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TS380G503 is a keyed selector switch actuator used for secure manual control and operating mode selection in industrial automation systems." } }, { "@type": "Question", "name": "How many positions does this selector switch actuator have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator features a three-position 1-0-2 selector arrangement with key removal available in position 2." } }, { "@type": "Question", "name": "What mounting size is required for this actuator?", "acceptedAnswer": { "@type": "Answer", "text": "The LOVATO 8LM2TS380G503 is designed for standard Ø22mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does this selector actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress." } }, { "@type": "Question", "name": "What series does the LOVATO 8LM2TS380G503 belong to?", "acceptedAnswer": { "@type": "Answer", "text": "The product belongs to the LOVATO 8LM metal selector switch series designed for industrial control and automation applications." } } ] }
