Lovato Electric 8LM2TS380G504 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £49.23.£34.46Current price is: £34.46.

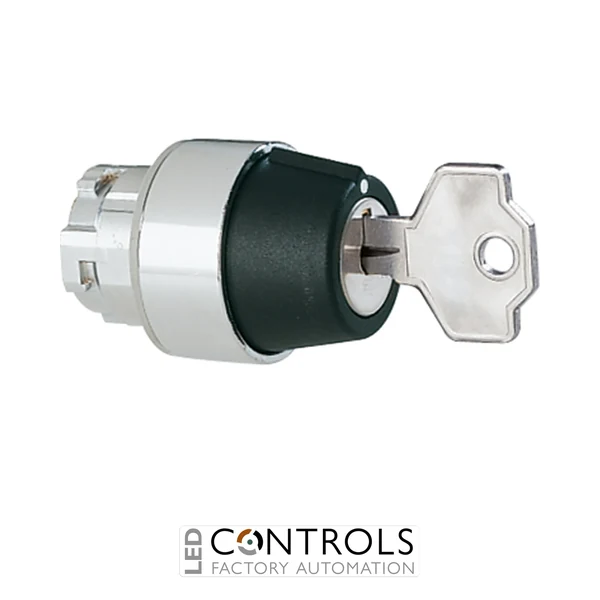

The Lovato 8LM2TS380G504 is a robust key-operated selector switch actuator designed for reliable control and switching operations in industrial automation, electrical panels and machine control applications. Part of the Lovato 8LM metal selector switch series, this Ø22 mm actuator provides secure operator control with a three-position selector mechanism and coded removable key operation.
Designed for demanding industrial environments, the 8LM2TS380G504 combines durable metal construction with a compact panel-mounted design. Its keyed operation helps prevent unauthorised switching while providing dependable manual control for industrial equipment, control cabinets and automation systems.
The selector actuator features a three-position 1-0-2 configuration with key withdrawal at position 2 and a specific G504 key code. With an IP65 protection rating and long mechanical life, it is suitable for applications requiring reliable switching performance and protection against dust and water ingress.
Key-operated selector switches provide a secure and practical method of controlling industrial equipment functions. By using a removable key mechanism, operators can restrict access to critical machine settings and reduce the risk of unintended operation.
The Lovato 8LM series is designed for automation engineers, machine builders and electrical panel manufacturers requiring reliable operator interfaces. The 8LM2TS380G504 actuator delivers long service life, robust construction and dependable switching performance in industrial environments.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975058602 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS380G504 is a keyed selector switch actuator used for manual control and switching functions in industrial control panels and automation systems.
The actuator has three positions: 1-0-2, providing two operating positions with a central off position.
Yes. The key can be removed at position 2 according to the actuator configuration.
The 8LM2TS380G504 is designed for standard Ø22 mm panel mounting applications.
The actuator provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress.
Lovato Electric selector switches are widely used in industrial automation and electrical control applications where reliable operator control, durability and secure switching performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS380G504 Key Selector Switch Actuator", "sku": "8LM2TS380G504", "mpn": "8LM2TS380G504", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS380G504 key-operated selector switch actuator, Ø22 mm metal series, three position 1-0-2 configuration with key removal at position 2.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "3 position 1-0-2" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "22 mm" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "300000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS380G504 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS380G504 is a keyed selector switch actuator used for manual control and switching functions in industrial control panels and automation systems." } }, { "@type": "Question", "name": "How many positions does this selector switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator has three positions: 1-0-2, providing two operating positions with a central off position." } }, { "@type": "Question", "name": "Can the key be removed from the selector switch?", "acceptedAnswer": { "@type": "Answer", "text": "Yes. The key can be removed at position 2 according to the actuator configuration." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TS380G504 is designed for standard Ø22 mm panel mounting applications." } }, { "@type": "Question", "name": "What protection rating does this selector actuator provide?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator provides an IP65 protection rating, making it suitable for industrial environments requiring protection against dust and water ingress." } } ] }
