Lovato Electric 8LM2TS380G506 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £49.23.£34.46Current price is: £34.46.

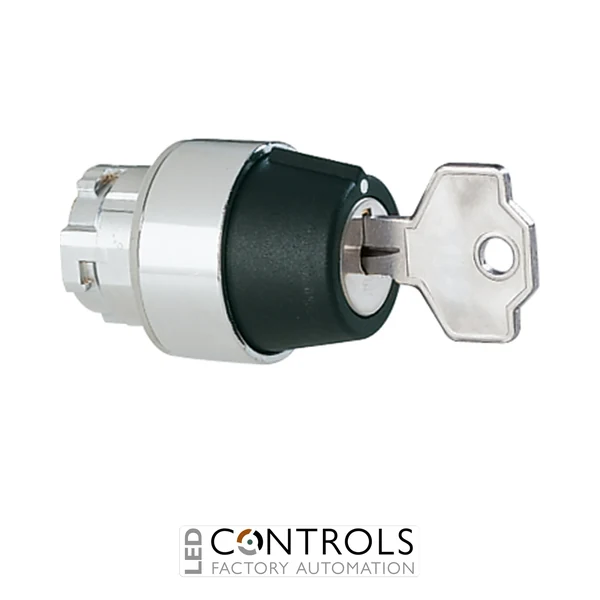

The Lovato 8LM2TS380G506 is a durable key-operated selector switch actuator designed for reliable manual control in industrial automation systems, electrical control panels and machine operating stations. As part of the Lovato 8LM metal selector switch series, this Ø22 mm actuator provides secure switching functionality with a three-position selector mechanism and coded removable key operation.
Designed for industrial environments, the 8LM2TS380G506 features a robust metal construction and compact panel-mounted format. Its keyed operation helps restrict unauthorised access to machine controls while providing dependable operator interaction for automation equipment and electrical systems.
The selector actuator provides a three-position 1-0-2 configuration with key extraction at position 2 and a G506 coded key. This configuration makes it suitable for applications requiring secure operating mode selection and reliable switching control.
Key-operated selector switches provide a secure method of controlling industrial equipment by allowing operators to select machine functions while preventing unwanted changes through removable key access.
The Lovato 8LM series is designed for electrical engineers, OEM machine builders and panel manufacturers requiring reliable operator interfaces. The 8LM2TS380G506 provides secure switching control, durable construction and dependable operation in industrial environments.
| IP Rating | IP65 |
|---|---|
| Weight [g] | 80 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 044X032X060 |
| Volume [cm³] | 84.48 |
| Bar code [EAN13] | 8013975101841 |
| HS Code | 85365080 |
| Product designation | Selector switch actuators Key - 3 position |
| Product type designation | 8LM2TS3 |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP65 |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TS380G506 is a keyed selector switch actuator used for secure manual control and switching functions in industrial automation systems and electrical panels.
The actuator has three positions: 1-0-2, allowing selection between two operating positions with a central off position.
The key can be extracted at position 2 according to the actuator configuration.
The 8LM2TS380G506 uses a standard Ø22 mm panel mounting format for industrial control applications.
This model uses the G506 coded key configuration.
Lovato Electric selector switches are widely used in industrial automation and electrical control applications where secure operator control, durability and reliable switching performance are required.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TS380G506 Key Selector Switch Actuator", "sku": "8LM2TS380G506", "mpn": "8LM2TS380G506", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TS380G506 key-operated selector switch actuator, Ø22 mm 8LM metal series, three position 1-0-2 configuration with G506 coded key.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Positions", "value": "3 position 1-0-2" }, { "@type": "PropertyValue", "name": "Mounting diameter", "value": "Ø22 mm" }, { "@type": "PropertyValue", "name": "Key code", "value": "G506" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP65" }, { "@type": "PropertyValue", "name": "Weight", "value": "80 g" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TS380G506 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TS380G506 is a keyed selector switch actuator used for secure manual control and switching functions in industrial automation systems and electrical panels." } }, { "@type": "Question", "name": "How many positions does this selector switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator has three positions: 1-0-2, allowing selection between two operating positions with a central off position." } }, { "@type": "Question", "name": "Where can the key be removed?", "acceptedAnswer": { "@type": "Answer", "text": "The key can be extracted at position 2 according to the actuator configuration." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TS380G506 uses a standard Ø22 mm panel mounting format for industrial control applications." } }, { "@type": "Question", "name": "What key code does this selector actuator use?", "acceptedAnswer": { "@type": "Answer", "text": "This model uses the G506 coded key configuration." } } ] }
