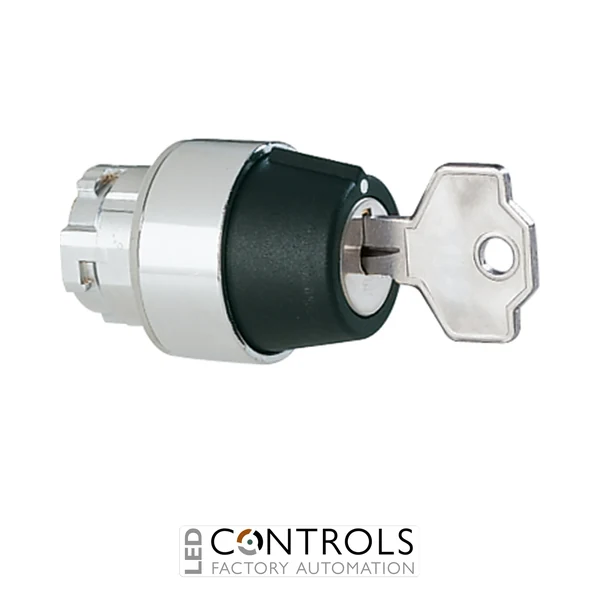

8LM2TS380G510 – SELECTOR SWITCH KEY 1>+0+-2 G-510 COMBIN

Q: How many positions does this selector switch have?

The actuator has three positions: 1-0-2, allowing selection between two operating positions with a central off position.

Q: Where can the key be removed?

The key can be removed at position 2 according to the actuator configuration.

Q: What mounting size is required?

The 8LM2TS380G510 is designed for standard Ø22 mm panel mounting applications.

Q: What key code does this selector actuator use?

This model uses the G510 coded key configuration.

Lovato Electric 8LM2TS380G510 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.

SKU: 8LM2TS380G510MPN: 8LM2TS380G510

Why Choose the Lovato 8LM2TS380G510 Selector Switch Actuator?

The Lovato 8LM2TS380G510 is a reliable key-operated selector switch actuator designed for secure manual control in industrial automation systems, electrical control panels and machine operating stations. Part of the Lovato 8LM metal selector switch series, this Ø22 mm actuator provides dependable switching performance with a three-position selector mechanism and coded removable key operation.

Designed for demanding industrial environments, the 8LM2TS380G510 combines durable aluminium and zinc alloy construction with a compact panel-mounted design. Its keyed operation helps prevent unauthorised switching while providing reliable operator control for machinery, automation systems and electrical installations.

The selector actuator features a three-position 1-0-2 configuration with key extraction at position 2 and a G510 coded key. This configuration provides secure operating mode selection and dependable manual control for industrial applications.

Key Advantages

Durable metal selector switch actuator for industrial applications.
Ø22 mm mounting size suitable for standard electrical control panels.
Three-position 1-0-2 selector operation for flexible machine control.
Key-operated design improves operational security.
IP65 protection rating suitable for demanding industrial environments.
Long mechanical life ensures reliable switching performance.

Key Features

Lovato 8LM metal selector switch series.
Key-operated selector actuator.
Three positions: 1-0-2.
Key extraction at position 2.
G510 coded key operation.
Ø22 mm panel mounting diameter.
Aluminium and zinc alloy construction.
Designed for industrial control and automation panels.

Reliable Switching for Industrial Control Systems

Key-operated selector switches provide a secure and practical method of controlling industrial equipment functions. The removable key mechanism allows operators to select machine operating modes while reducing the risk of unintended operation.

The Lovato 8LM series is designed for machine builders, electrical panel manufacturers and automation engineers requiring dependable operator interfaces. The 8LM2TS380G510 provides secure switching control, robust construction and reliable operation in industrial environments.

Typical Applications

Industrial electrical control panels.
Machine automation systems.
Motor control cabinets.
Production and manufacturing equipment.
OEM machinery control stations.
Industrial operator interfaces.

Technical Specifications

Tick the specs you need, then view products that match.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Key Selector Switch
IP Rating	IP65
Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	044X032X060
Volume [cm³]	84.48
Bar code [EAN13]	8013975101889
HS Code	85365080
Product designation	Selector switch actuators Key - 3 position
Product type designation	8LM2TS3
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch

Frequently Asked Questions

What is the Lovato 8LM2TS380G510 used for?

The Lovato 8LM2TS380G510 is a keyed selector switch actuator used for secure manual control and switching functions in industrial automation systems and electrical control panels.

How many positions does this selector switch have?

The actuator has three positions: 1-0-2, allowing selection between two operating positions with a central off position.

Where can the key be removed?

The key can be removed at position 2 according to the actuator configuration.

What mounting size is required?

The 8LM2TS380G510 is designed for standard Ø22 mm panel mounting applications.

What key code does this selector actuator use?

This model uses the G510 coded key configuration.

Trusted by Industrial Automation Professionals

Lovato Electric selector switches are widely used in industrial automation and electrical control applications where secure operator control, durability and reliable switching performance are required.

Mounting Diameter	22 mm
Product Series	Lovato 8LM Metal
Device Type	Key Selector Switch
IP Rating	IP65
Weight [g]	80
Qty. per package	1
Multiple qty. of packs per order	1
Package dimensions [mm]	044X032X060
Volume [cm³]	84.48
Bar code [EAN13]	8013975101889
HS Code	85365080
Product designation	Selector switch actuators Key - 3 position
Product type designation	8LM2TS3
Type of positions	Selector switch
Material	Aluminium and zinc alloy
IEC degree of protection	IP65
Mechanical life	300000
Mounting adapter	LM2TAU120
UL degree of protection	Type 1, 2, 3R, 4, 4X, 12, 12K
min [°C]	-40
max [°C]	+70
ETIM 8.0	EC000222 - Front element for selector switch
