Lovato Electric 8LM2TSL1205 electrical installation component for professional commercial and industrial assemblies, suitable for maintenance, replacement and panel building applications.
Original price was: £18.16.£12.71Current price is: £12.71.

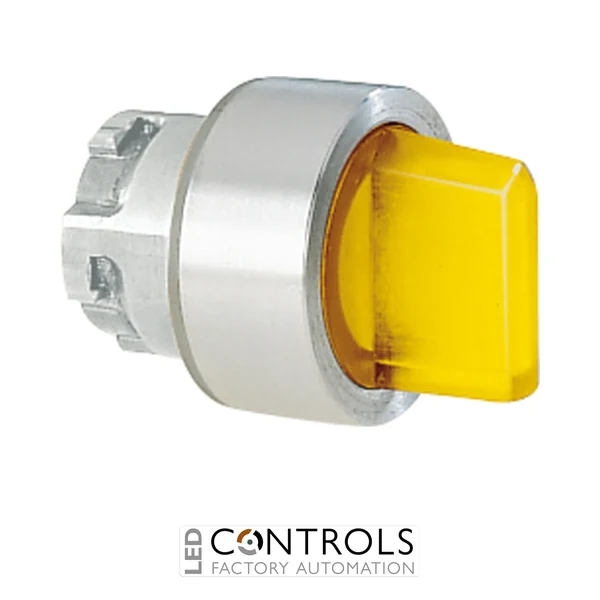

The Lovato 8LM2TSL1205 is a high-quality illuminated selector switch actuator designed for reliable industrial control panel operation. Part of the Lovato 8LM series metal selector switch range, this 22mm front element provides clear visual indication and dependable switching control for machinery, automation systems and electrical control applications.
Featuring a robust metal construction, yellow illuminated selector knob and a two-position 0-1 maintained selector function, the 8LM2TSL1205 is engineered for professional industrial environments where durability, visibility and precise operator control are required.
The selector actuator is designed for use with compatible Lovato LM2T series components and mounting accessories. Its compact 22mm panel mounting format makes it suitable for control stations, machine interfaces and automation panels where quick operator identification is important.
Selector switches are essential components in industrial control panels, allowing operators to manually select operating modes, activate functions or switch between machine states. The Lovato 8LM2TSL1205 combines mechanical reliability with illuminated indication to provide clear and efficient machine interface control.
Its compact 22mm design and durable metal construction make it suitable for OEM machinery, automation equipment and electrical cabinets where dependable operator interaction is required.
| IP Rating | IP40 |
|---|---|
| Weight [g] | 25 |
| Qty. per package | 10 |
| Multiple qty. of packs per order | 10 |
| Package dimensions [mm] | 150X060X048 |
| Volume [cm³] | 43.2 |
| Bar code [EAN13] | 8013975042298 |
| HS Code | 85365080 |
| Product designation | Illuminated selector switch actuators - 2 position |
| Product type designation | 8LM2TSL1 |
| Colour | Yellow |
| Type of positions | Selector switch |
| Material | Aluminium and zinc alloy |
| IEC degree of protection | IP40 |
| Max power | 1.2 |
| Operating force | 0.8kg/1.7Ib |
| Mechanical life | 300000 |
| Mounting adapter | LM2TAU120 |
| UL degree of protection | Type 1, 2, 3R, 4, 4X, 12, 12K |
| min [°C] | -40 |
| max [°C] | +70 |
| ETIM 8.0 | EC000222 - Front element for selector switch |
The Lovato 8LM2TSL1205 is an illuminated selector switch actuator used for operator control functions in industrial automation panels and machinery.
The selector actuator provides two maintained positions with a 0-1 selector function.
The 8LM2TSL1205 is designed for standard 22mm panel mounting applications.
This model features a yellow illuminated selector knob for clear visual indication.
The actuator is designed for industrial control panels, machinery and automation systems requiring reliable operator switching.
Lovato Electric selector switches are widely used in industrial automation and machinery applications where dependable control, clear indication and long service life are essential.{ "@context": "https://schema.org/", "@type": "Product", "name": "Lovato 8LM2TSL1205 Illuminated Selector Switch Actuator 22mm Yellow", "sku": "8LM2TSL1205", "mpn": "8LM2TSL1205", "brand": { "@type": "Brand", "name": "Lovato Electric" }, "category": "Selector Switches", "description": "Lovato 8LM2TSL1205 illuminated selector switch actuator, 22mm metal two position 0-1 yellow selector for industrial control panels and automation systems.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Mounting size", "value": "22mm" }, { "@type": "PropertyValue", "name": "Positions", "value": "2" }, { "@type": "PropertyValue", "name": "Colour", "value": "Yellow" }, { "@type": "PropertyValue", "name": "Protection rating", "value": "IP40" }, { "@type": "PropertyValue", "name": "Mechanical life", "value": "300000 cycles" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "inLanguage": "en-GB", "mainEntity": [ { "@type": "Question", "name": "What is the Lovato 8LM2TSL1205 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Lovato 8LM2TSL1205 is an illuminated selector switch actuator used for operator control functions in industrial automation panels and machinery." } }, { "@type": "Question", "name": "How many positions does this selector switch have?", "acceptedAnswer": { "@type": "Answer", "text": "The selector actuator provides two maintained positions with a 0-1 selector function." } }, { "@type": "Question", "name": "What mounting size is required?", "acceptedAnswer": { "@type": "Answer", "text": "The 8LM2TSL1205 is designed for standard 22mm panel mounting applications." } }, { "@type": "Question", "name": "What colour is the illuminated selector actuator?", "acceptedAnswer": { "@type": "Answer", "text": "This model features a yellow illuminated selector knob for clear visual indication." } }, { "@type": "Question", "name": "What environments is this selector switch suitable for?", "acceptedAnswer": { "@type": "Answer", "text": "The actuator is designed for industrial control panels, machinery and automation systems requiring reliable operator switching." } } ] }
