Why Choose the ABB 1SFA611103R1102 MP4-11G Pushbutton?
The ABB 1SFA611103R1102, also known as the MP4-11G, is a robust maintained illuminated extended pushbutton operator designed for industrial control panels, machinery and automation equipment. As part of the ABB Modular pilot device range, it provides dependable manual control together with clear visual indication for applications requiring a retained operating position.

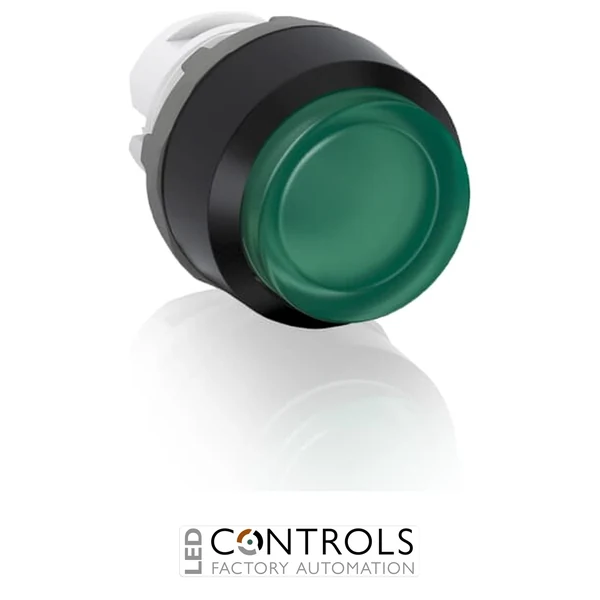

The MP4-11G features a green illuminated extended actuator with a black plastic bezel. Its maintained operating function provides two stable positions, allowing the actuator to remain in its selected state after operation rather than automatically returning. The illuminated design supports clear machine or process status indication, while the modular construction allows compatible ABB contact blocks and an illumination unit to be selected separately.
Designed for a standard 22.5 mm panel cut-out, the 1SFA611103R1102 provides an IP66 protection rating and mechanical durability of approximately 2 million operations. Its compact 29 × 29 × 39 mm construction makes it straightforward to integrate into operator stations, industrial control cabinets and machine interfaces.
Key Advantages
- Reliable maintained illuminated pushbutton for industrial control applications.
- Green extended actuator provides clear identification and convenient operation.
- Maintained action provides two stable operating positions.
- Illuminated design supports clear machine and process status indication.
- IP66 protection supports operation in demanding industrial environments.
- High mechanical durability of approximately 2 million operations.
Key Features
- ABB MP4 Modular pushbutton series.
- Maintained / latching operating function.
- Two stable positions.
- Round green extended actuator.
- Illuminated operator for visual status indication.
- Durable black plastic bezel.
- 22.5 mm panel cut-out.
- IP66 protection rating.
- Mechanical durability of approximately 2 million operations.
- Operating temperature range from -25 to +70 °C.
- Modular construction for flexible contact and illumination configurations.
- Contact block and illumination unit ordered separately.
Maintained industrial pushbuttons provide operators with a dependable method of controlling machinery and automated processes where a command must remain selected after the actuator is operated. The ABB MP4-11G combines this retained action with illumination, allowing the operator interface to provide both manual control and clear visual status indication.
ABB's modular pilot device system allows operators, contact blocks and illumination components to be combined according to the requirements of the control circuit. The MP4-11G's extended actuator, standard 22.5 mm panel cut-out and IP66 protection make it suitable for machine-mounted operator panels, enclosed control stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation and production equipment.
- Motor and process control systems.
- Operator control stations and consoles.
- Machine status and function indication.
- Manufacturing and material handling equipment.
- OEM machine building and electrical control cabinets.
