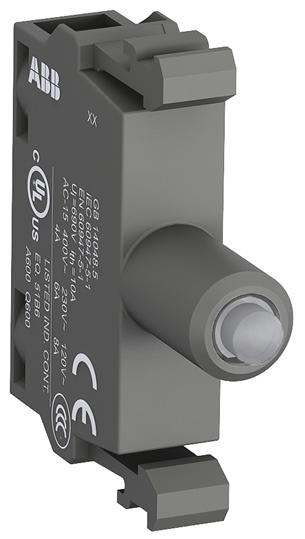

ABB 1SFA611621R1075 MLBL-07W front-mounted white LED illumination block for compatible modular plastic pilot devices operating from a 230 V AC supply.
£16.07
The ABB 1SFA611621R1075, product designation MLBL-07W, is a compact and reliable white LED illumination block designed for ABB modular plastic pilot devices. It provides clear visual indication within machinery control panels, operator stations and industrial automation systems.
This front-mounted LED block combines the light source and supporting electronics within a single modular component. Its integrated LED removes the need for a separate replaceable lamp, helping simplify installation and reduce routine maintenance requirements.
Designed for operation from a 230 V AC supply at 50 / 60 Hz, the MLBL-07W produces white illumination for compatible ABB pushbuttons, pilot lights and selector-switch operators. Screw-clamp terminals provide secure connections for solid or flexible conductors from 0.75–2.5 mm².
LED blocks illuminate compatible pushbutton, pilot-light and selector-switch operators, helping personnel identify equipment conditions and active control functions. White illumination provides a clear, neutral indication suitable for a wide range of machinery and process-control applications.
The modular design allows the MLBL-07W to be installed behind a compatible ABB operator using the appropriate holder. This provides panel builders with a flexible method of creating illuminated control devices while maintaining a consistent operator interface.
| Manufacturer | ABB |
|---|---|
| Series | MLBL |
| Model | MLBL-07W |
| Order code | 1SFA611621R1075 |
| Product type | LED illumination block |
| Accessory type | LED and lamp block |
| Illumination colour | White |
| Lamp type | Integrated LED |
| Rated operational voltage | 230 V AC |
| Rated frequency | 50 / 60 Hz |
| Mounting type | Front mounting |
| Connection type | Screw clamp |
| Terminal type | Screw terminals |
| Conductor capacity | 0.75–2.5 mm² |
| Operating temperature | -25 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Dimensions (W × H × D) | 10 × 44 × 42 mm |
| Weight | 0.01 kg |
The MLBL-07W provides white illumination for compatible ABB modular pushbuttons, pilot lights and selector-switch operators.
The LED block is designed for a rated operational voltage of 230 V AC at 50 / 60 Hz.
The integrated LED produces white illumination for clear equipment and process-status indication.
Yes. The MLBL-07W contains an integrated LED, so a separate replaceable lamp is not required.
The LED block is front-mounted behind a compatible ABB modular pilot-device operator and uses screw-clamp terminals for the electrical connection.
