Why Choose the ABB 1SFA611102R2006 MP3-20B Pushbutton?
The ABB 1SFA611102R2006, also known as the MP3-20B, is a robust momentary extended pushbutton operator designed for industrial machinery, automation systems and electrical control panels. As part of the versatile ABB Modular 22 mm pilot device range, it provides dependable manual control for applications requiring a clear spring-return command.

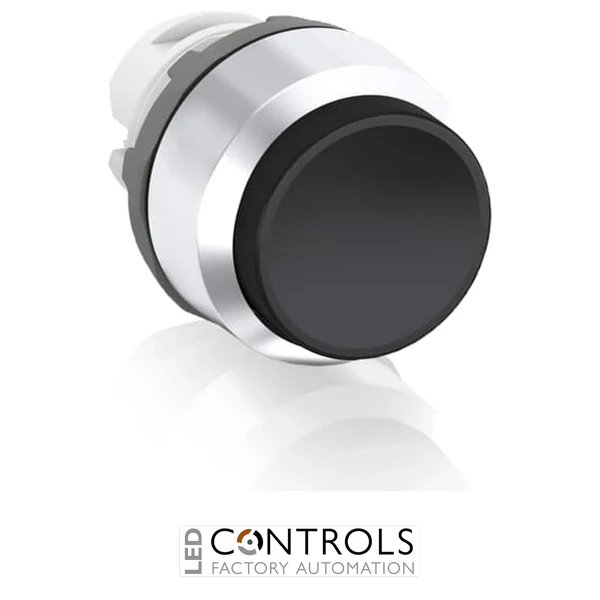

The MP3-20B features a black, non-illuminated extended actuator with a chrome-coloured plastic front bezel. Its momentary spring-return operating action automatically returns the actuator to its normal position when released, making it suitable for temporary machine commands, acknowledgement functions and process control. ABB's modular construction allows compatible contact blocks and accessories to be selected separately according to the requirements of the control circuit.
Designed for standard 22 mm panel mounting, the 1SFA611102R2006 provides IP66 front protection, IP20 terminal protection and a NEMA 4X front rating. With mechanical durability of approximately 2 million operations and compact dimensions of approximately 29 × 29 × 38 mm, it is well suited to operator stations, machine interfaces and industrial control cabinets.
Key Advantages
- Reliable momentary pushbutton for industrial control applications.
- Black extended actuator provides clear identification and convenient operation.
- Spring-return action automatically restores the actuator after release.
- Chrome-coloured plastic bezel provides a durable and professional panel finish.
- IP66 front and NEMA 4X protection support installation in demanding industrial environments.
- High mechanical durability of approximately 2 million operations.
Key Features
- ABB MP3 Modular pushbutton series.
- Momentary / spring-return operating function.
- Round black extended actuator.
- Non-illuminated operator design.
- Chrome-coloured plastic front bezel.
- Designed for standard 22 mm panel mounting.
- IP66 front protection rating.
- IP20 terminal protection rating.
- NEMA 4X front protection rating.
- Mechanical durability of approximately 2 million operations.
- Operating temperature range from -25 to +70 °C.
- Supplied as an operator without a contact block.
Momentary industrial pushbuttons provide operators with a straightforward and dependable method of issuing temporary commands to machinery and automated processes. The ABB MP3-20B uses a spring-return mechanism that restores the actuator to its normal position after release, making it suitable for functions where a control command should only be initiated during operation of the pushbutton.
ABB's modular pilot device system allows pushbutton operators, contact blocks and accessories to be combined according to the requirements of the control circuit. The MP3-20B's extended actuator, standard 22 mm mounting format and IP66 front protection make it suitable for machine-mounted operator panels, enclosed control stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation and production equipment.
- Machine command and acknowledgement functions.
- Operator control stations and consoles.
- Process and motor control systems.
- Manufacturing and material handling equipment.
- Conveyor and production line controls.
- OEM machine building and electrical control cabinets.
