Why Choose the ABB MP1-10L Blue Pushbutton?

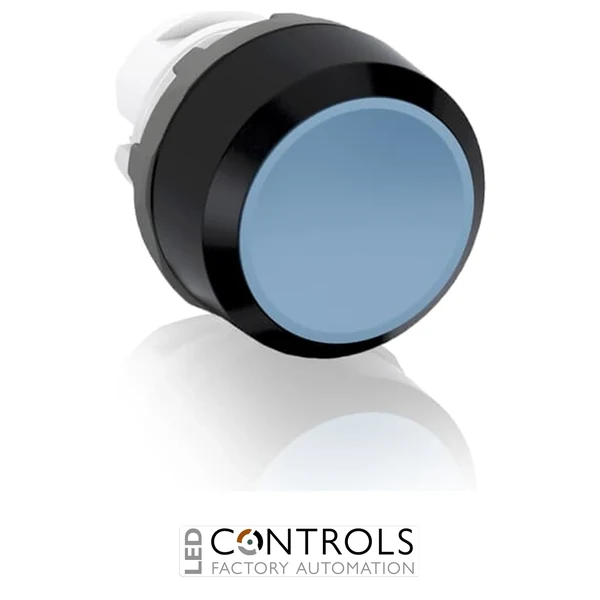

The ABB MP1-10L, order code 1SFA611100R1004, is a compact blue momentary flush pushbutton designed for operator control interfaces in industrial machinery and automation systems. It belongs to ABB’s modular plastic range of 22 mm pilot devices, providing a clearly identifiable control point for electrical panels and equipment.
This non-illuminated pushbutton features a blue actuator and black plastic bezel. Its spring-return momentary action generates a temporary control command while the operator presses the button and returns automatically to its normal position when released.
Designed for a standard 22 mm panel mounting hole, the MP1-10L forms part of ABB’s modular pilot-device system. The operator can be combined with a compatible ABB holder and contact block selected to provide the switching arrangement required by the control circuit.
Key Advantages
- Clear blue actuator supports rapid control-function identification.
- Momentary spring-return operation suits pulse and command circuits.
- Flush profile provides a neat industrial control-panel appearance.
- 22 mm modular format supports standardised panel layouts.
- Black plastic bezel provides a compact and practical operator design.
- Compatible with ABB modular holders and contact blocks.
Key Features
- ABB MP1 modular pushbutton series.
- Blue flush actuator.
- Momentary operating action.
- Non-illuminated operator design.
- Black plastic bezel.
- Designed for a 22 mm mounting hole.
- Modular construction allows selection of the required contact arrangement.
- Suitable for industrial control and signalling assemblies.
Clear Operator Control for Industrial Equipment
Momentary pushbuttons generate a control command only while the actuator is pressed and return automatically when released. This operating principle makes the ABB MP1-10L suitable for acknowledgements, process commands, resets and other temporary control inputs.
ABB’s modular pilot-device system allows the operator, holder and contact blocks to be configured for the application. This approach simplifies panel design and enables the electrical contact arrangement to be selected independently of the visible pushbutton operator.
Typical Applications
- Industrial machinery control panels.
- Factory automation operator stations.
- Process-control and acknowledgement circuits.
- Reset and temporary command functions.
- Motor-control centres and electrical enclosures.
- Equipment control desks and local control panels.
