Why Choose the ABB MP1-11C Clear Illuminated Pushbutton?

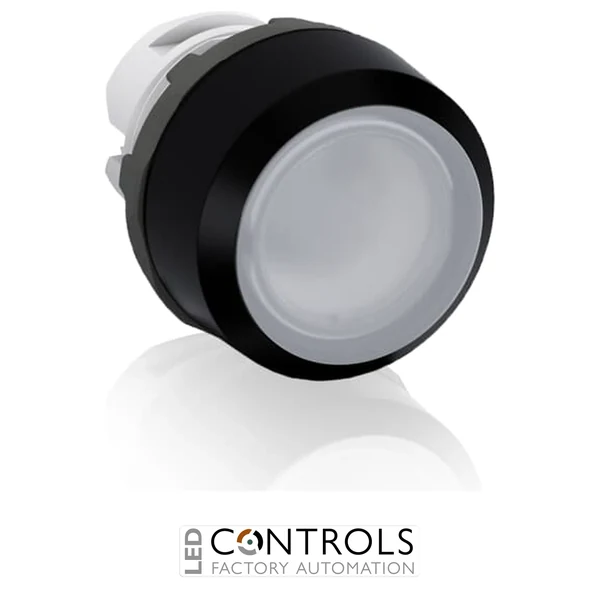

The ABB MP1-11C, order code 1SFA611100R1108, is a compact clear illuminated momentary flush pushbutton designed for operator control and visual signalling in industrial machinery and automation systems. As part of ABB’s modular plastic pilot-device range, it provides a versatile control and indication point for electrical panels and equipment.
This pushbutton features a clear illuminated actuator and a black plastic bezel. Its spring-return momentary action produces a temporary control command while pressed, while the illuminated design enables the operator to communicate machine, process or circuit status when combined with a compatible ABB lighting block.
Designed for a standard 22 mm panel mounting hole, the MP1-11C forms part of ABB’s modular pilot-device system. It can be assembled with a compatible holder, contact blocks and lighting block selected to meet the electrical and indication requirements of the application.
Key Advantages
- Combines operator control and clear visual indication in one device.
- Momentary spring-return operation suits pulse and command circuits.
- Flush actuator provides a neat, low-profile panel appearance.
- 22 mm modular format supports standardised control-panel layouts.
- Black plastic bezel provides a compact industrial design.
- Compatible with ABB modular holders, contact blocks and lighting blocks.
Key Features
- ABB MP1 modular pushbutton series.
- Clear illuminated flush actuator.
- Momentary operating action.
- Black plastic bezel.
- Designed for a 22 mm mounting hole.
- Modular contact and illumination configuration.
- Suitable for combined control and status indication.
- Designed for industrial control and signalling assemblies.
Illuminated Operator Control for Industrial Equipment
Momentary pushbuttons generate a control command only while the actuator is pressed and return automatically when released. Adding illumination allows the same panel position to communicate equipment or process status, helping operators interpret control conditions quickly.
ABB’s modular pilot-device system allows the MP1-11C operator, holder, contact blocks and lighting block to be selected for the application. This flexible construction enables the switching arrangement and illumination voltage to be configured independently of the visible pushbutton operator.
Typical Applications
- Industrial machinery control panels.
- Factory automation operator stations.
- Acknowledgement and process-command circuits.
- Control functions requiring illuminated status indication.
- Motor-control centres and electrical enclosures.
- Equipment control desks and local operating panels.
