Why Choose the ABB 1SFA611102R2003 MP3-20Y Pushbutton?
The ABB 1SFA611102R2003, also known as the MP3-20Y, is a durable momentary extended pushbutton operator designed for industrial machinery, automation systems and electrical control panels. As part of the versatile ABB Modular pilot device range, it provides reliable manual control for machine functions, process equipment and operator stations where a spring-return command is required.

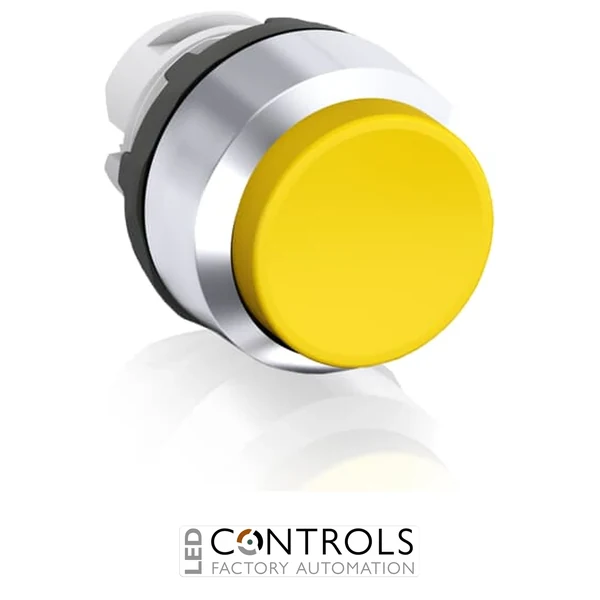

The MP3-20Y features a yellow, non-illuminated extended actuator with a chrome-coloured plastic bezel. Its momentary spring-return action means the actuator automatically returns to its normal position when released, making it suitable for temporary control, acknowledgement and command functions. ABB's modular construction allows compatible contact blocks and accessories to be selected separately according to the requirements of the control circuit.
Designed for standard 22 mm panel mounting, the 1SFA611102R2003 provides IP66 front protection and a NEMA 4X front rating. With mechanical durability of approximately 2 million operations and compact dimensions of approximately 29 × 29 × 39 mm, it is well suited to industrial control cabinets, operator stations and machine interfaces.
Key Advantages
- Reliable momentary pushbutton for industrial control applications.
- Yellow extended actuator provides clear identification and convenient operation.
- Spring-return action automatically restores the actuator after release.
- Chrome-coloured plastic bezel provides a durable and professional panel finish.
- IP66 and NEMA 4X front protection support use in demanding industrial environments.
- High mechanical durability of approximately 2 million operations.
Key Features
- ABB MP3 Modular pushbutton series.
- Momentary / spring-return operating function.
- Round yellow extended actuator.
- Non-illuminated operator design.
- Chrome-coloured plastic front bezel.
- 22 mm mounting format.
- Single command position.
- IP66 front protection rating.
- NEMA Types 1, 12, 13, 3R, 4 and 4X.
- Mechanical durability of approximately 2 million operations.
- Operating temperature range from -25 to +70 °C.
- Supplied as an operator without a contact block.
Momentary industrial pushbuttons provide operators with a straightforward and dependable method of issuing temporary commands to machinery and automated processes. The ABB MP3-20Y uses a spring-return mechanism that restores the actuator to its normal position after release, making it suitable for functions where a control signal should only be initiated or maintained during operation of the pushbutton.
ABB's modular pilot device system allows operators, contact blocks and accessories to be combined according to the requirements of the control circuit. The MP3-20Y's extended actuator, standard 22 mm mounting format and high front protection rating make it suitable for machine-mounted operator panels, enclosed control stations and industrial automation equipment.
Typical Applications
- Industrial machinery control panels.
- Factory automation and production equipment.
- Machine command and acknowledgement functions.
- Operator control stations and consoles.
- Process control systems.
- Manufacturing and material handling equipment.
- OEM machine building and electrical control cabinets.
