Why Choose the ABB MP1-20Y Modular Pushbutton?

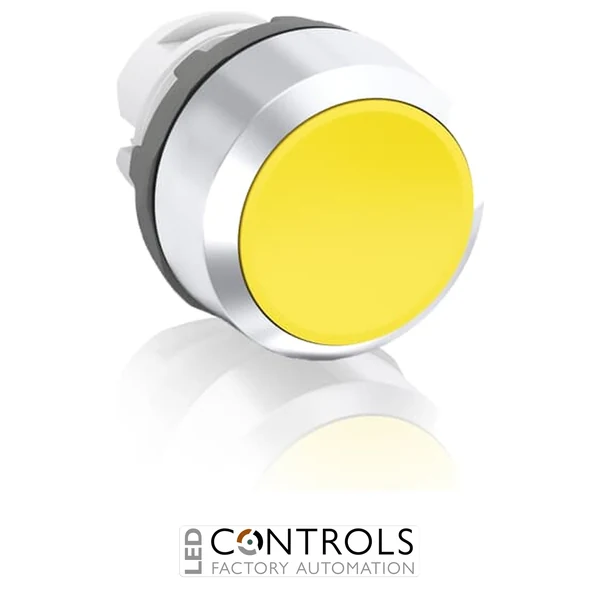

The ABB MP1-20Y, product code 1SFA611100R2003, is a durable yellow momentary pushbutton head designed for industrial control panels, machinery and operator stations. Part of the ABB Modular pilot-device range, it combines a flush actuator with a compact, non-illuminated design.
This pushbutton uses a spring-return momentary action, making it suitable for control commands that remain active only while the actuator is pressed. Its yellow operating surface provides clear visual identification, while the chrome-plastic bezel gives the device a clean and robust panel-mounted appearance.
Designed for a 22.5 mm panel cut-out, the MP1-20Y offers an IP66 front protection rating and an operating temperature range of −25 to +70 °C. The product is supplied without a contact block, allowing the required compatible contact arrangement to be selected separately.
Key Advantages
- Clear yellow momentary pushbutton for industrial control commands.
- IP66 front protection against dust and powerful water jets.
- Flush actuator helps reduce accidental operation and panel protrusion.
- Standard 22.5 mm panel cut-out simplifies installation.
- Mechanical durability of up to 2 million operations.
- Separate contact-block selection enables flexible circuit configuration.
Key Features
- ABB MP1 Modular series.
- Yellow, round pushbutton actuator.
- Momentary spring-return operation.
- Flush actuator profile.
- Non-illuminated construction.
- Chrome-plastic bezel.
- IP66 degree of protection at the front.
- Supplied without a contact block.
Reliable Command Control for Industrial Equipment
Momentary pushbuttons provide a temporary electrical command through a separately fitted contact block, returning to their normal position when released. This makes them suitable for functions such as machine reset, acknowledgement, manual jogging and other operator-initiated control commands.
The ABB MP1 Modular range enables pushbutton heads, contact blocks and related pilot-device components to be configured for specific control-panel requirements. The MP1-20Y combines clear yellow identification, robust front protection and high mechanical durability for dependable industrial operation.
Typical Applications
- Industrial machinery control panels.
- Operator consoles and control stations.
- Motor-control and automation cabinets.
- Reset and acknowledgement circuits.
- Production and material-handling equipment.
- Process-control and manufacturing systems.
