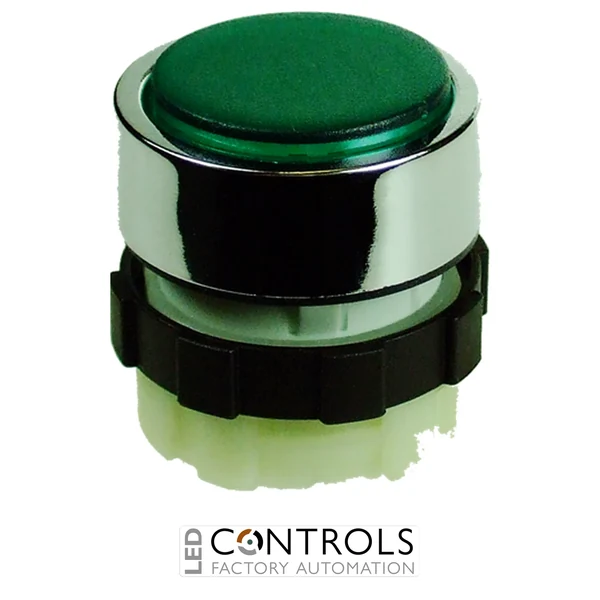

IMO BC3DLGREEN is an IP67 green illuminable momentary push-button actuator with spring-return operation, a chrome-finish bezel and a 22.5 mm panel mounting aperture.
£4.23
The IMO BC3DLGREEN is a durable and dependable illuminable momentary push-button actuator designed for industrial control panels, machinery interfaces and operator stations. As part of the established IMO B3 22 mm control-device range, it combines manual command input with clear visual indication when fitted with compatible illumination components.
This actuator features a green translucent button, a chrome-finish bezel and spring-return operation. Pressing the button operates the connected contact mechanism, while releasing it automatically returns the actuator to its normal position. Its illuminable construction makes it suitable for start, run, reset and status-confirmation functions.
Designed for installation through a 22.5 mm panel aperture, the BC3DLGREEN provides IP67 front protection for demanding industrial environments. Its modular design accepts compatible IMO connectors, contact blocks and BA9s lamp holders, allowing the required switching arrangement and illumination voltage to be configured separately.
Illuminable momentary push buttons combine an operator command with a visible status signal. Pressing the IMO BC3DLGREEN transfers movement to a compatible contact block, while a separately selected lamp and holder can illuminate the green actuator to indicate readiness, operation or confirmation.
When pressure is removed, the internal spring returns the button and connected contacts to their normal states. The modular B3 platform enables panel builders to select normally open or normally closed contacts and a suitable lamp voltage for the specific control system.
| HS Code | 8536508000 |
|---|---|
| Country of Manufacture | Austria |
| Manufacturer | IMO Precision Controls |
| Series | B3 |
| Model | BC3DLGREEN |
| Manufacturer reference | BC3DL GN |
| Product type | Illuminable momentary push-button actuator |
| Operating action | Spring return |
| Button style | Illuminable flush head |
| Button colour | Green |
| Bezel finish | Chrome |
| Mounting-hole diameter | 22.5 mm |
| Permitted panel thickness | 1–6 mm |
| Front protection rating | IP67 |
| Mounting type | Panel mounting |
| Maximum lamp power | 1.9 W |
| Compatible lamp base | BA9s |
| Weight | 0.014 kg |
| Contact block, lamp holder and lamp | Ordered separately |
The BC3DLGREEN provides momentary manual control and, when fitted with compatible lighting components, green visual indication for industrial machinery and automation systems.
The actuator has spring-return operation, so it automatically returns to its normal position when released.
The actuator is designed for installation in a 22.5 mm mounting hole.
The front of the installed actuator has an IP67 protection rating, providing protection against dust and temporary water immersion.
The BC3DLGREEN is a modular actuator; compatible IMO contact blocks, a BA9s lamp holder and a suitable lamp are selected separately for the application.
IMO push-button and signalling components are used by panel builders, automation engineers and machinery manufacturers to create clear, durable and dependable operator interfaces for industrial equipment.
